Competition Headers Ford 255-302W
InfoVehicle Info Needed
HOOKER HEADERSPART NUMBER: 520-6901-3

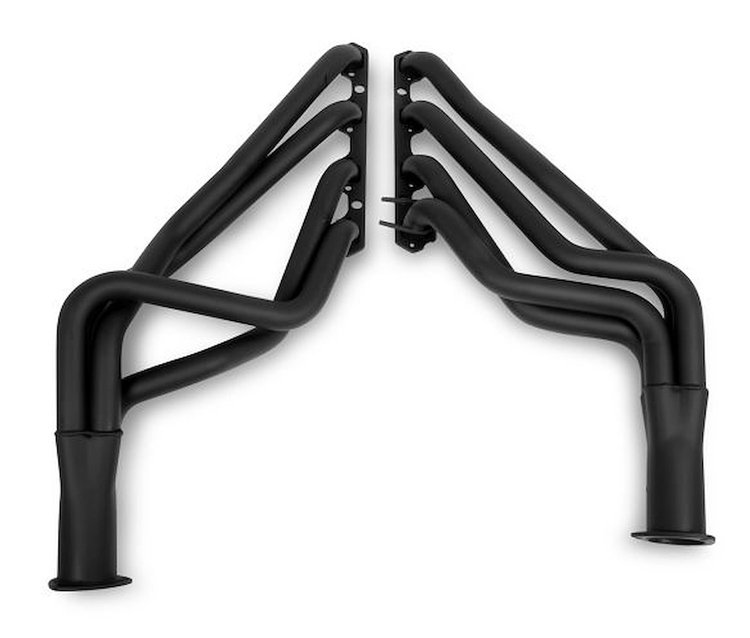

Competition Headers Ford 255-302W

$94995
ShippingShips on 11/13/2026
Lowest PriceLowest Price Guarantee
Best Value
Save
$46996
Metallic Ceramic Coated Long Tube Headers 1964-1973 Small Block Ford Passenger Car (260-302W c.i.)

555-300130

Metallic Ceramic Coated Long Tube Headers 1964-1973 Small Block Ford Passenger Car (260-302W c.i.)

$47999

Items You Need

Exhaust & Header Wrap 1 in. x 50 ft. x 1/16 in. Thick

JEGS

Exhaust & Header Wrap 1 in. x 50 ft. x 1/16 in. Thick

Part Number : 555-32052
$2699$29.99
You Save$3.00
Exhaust & Header Wrap 2 in. x 50 ft. x 1/16 in. Thick

JEGS

Exhaust & Header Wrap 2 in. x 50 ft. x 1/16 in. Thick

Part Number : 555-32057
$4899$53.99
You Save$5.00
Exhaust & Header Wrap 1 in. x 50 ft. x 1/16 in. Thick

JEGS

Exhaust & Header Wrap 1 in. x 50 ft. x 1/16 in. Thick

Part Number : 555-32062
$2799$30.79
You Save$2.80
Spark Plug Wire Boot Guards, Black [Set of 8]

JEGS

Spark Plug Wire Boot Guards, Black [Set of 8]

Part Number : 555-40300
$4499$49.99
You Save$5.00

Ford 255-302W
    Competition Headers
  • Ford 255-302W
  • 1964-73 Mustang, Cougar
  • 1966-69 Comet
  • 1970-77 Maverick
  • 1966-73 Falcon, Fairlane, Torino, Ranchero, Cyclone
  • 1.625" x 28" Primary Tubes
  • 3" x 8" Collector
  • "Darksides" Black Ceramic Coated

  • Also fits 1967-73 Mustang, Fairlane, Cougar 351W
  • Will not fit Dart/Windsor head
  • Will fit C6 transmission

    Accessory Compatibility:
  • Power Steering -
  • Power Steering application requires p/n 520-10961 bracket
  • Power Brakes - Yes
  • Air Conditioning - Yes
  • Smog Pump - N/A

    Transmission Compatibility:
  • Manual Column Shifter - No
  • Manual Floor Shifter - Yes except with 351W in 1971-73 Mustang/Cougar
  • Automatic Column Shifter - Yes, if equipped
  • Automatic Floor Shifter - Yes, if equipped

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: SAP

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

All Budget Headers Are NOT Created Equally!
Hooker's Competition Series Headers are engineered to outperform at a reasonable price! To let your engine really breathe, Hooker uses 16-gauge (.049" thick) steel tubing with long, transition-style collectors to provide a serious gain in flow over competitor headers without losing backpressure. After years of testing, Hooker discovered that 5/16" header flanges offer enough flex & rigidity to hold the gasket tight to each exhaust port to keep everything properly secured.

Show More

Features:

  • Mandrel-bent tuned length 16-gauge steel tubing for smooth exhaust flow and max power
  • Long transition collectors for improved power over standard headers
  • Machined 5/16" header flanges create a dependable seal
  • Gaskets and bolts included (Reducers not included)
  • Available in five finishes to suit your needs (see listings below for product availability)

Black Painted (Part numbers do not have a suffix)

Metallic Ceramic Coating (Part numbers have a -1 suffix)

Stainless Steel (Part numbers have a -2 suffix)

"Darksides" Black Ceramic Coating (Part numbers have a -3 suffix)

Titanium Ceramic Coating (Part numbers have a -4 suffix)

Part TypeHeader
Product LineHooker Headers Competition Series Ford and Mercury Car
BrandHOOKER HEADERS
Package Height14.0
Package Width21.0
Package Length44.0
Weight41.0 PG
Part CategoryPerformance Parts
Primary Tube Length28 in (711.2 mm)
Header FinishBlack ceramic coated
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Tube Material304 Stainless Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Primary Tube Gauge16-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.625 in (41.3 mm)
Vendor Part Number6901-3HKR
Package Qty1
Package TypeEA
Please click here to download the instructions PDF file
