Product Discontinued
HOOKER HEADERSPART NUMBER: 520-BH13216

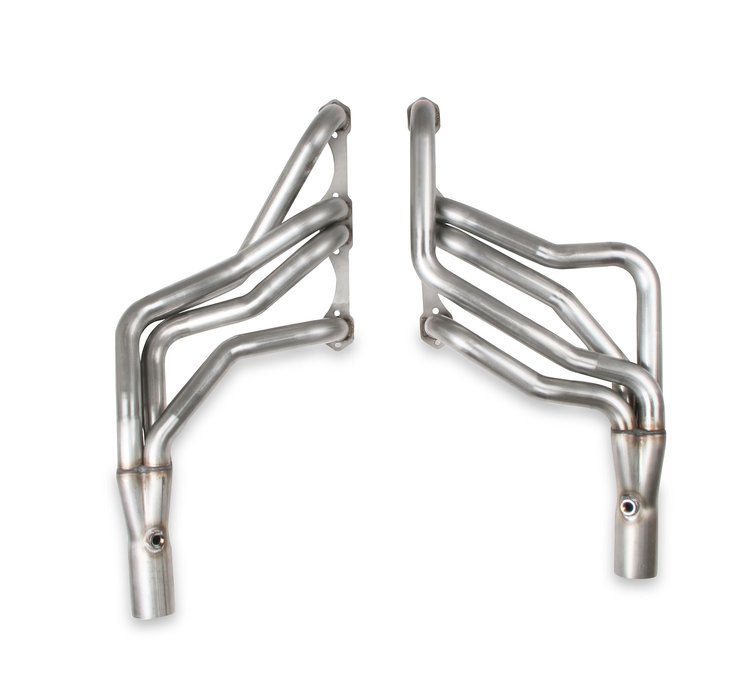

Blackheart Long-Tube Headers 1978-1988 GM G-Body with Small Block Chevy Gen-1 Engine - Natural Finish
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Blackheart Long-Tube Headers1978-1988 GM G-Body with Small Block Chevy Gen-1 Engine 1 5/8 (.625) in. Primary Tubes 3 in. Collectors 304 Stainless Steel Natural Finish Set of 2
Hooker Blackheart BH13216
Features:
- 18-gauge mandrel-bent tubing and long transition collectors with merge spears increase the overall exhaust flow and velocity
- CNC-waterjet header flanges provide a superior sealing surface
- The header geometry delivers maximum ground and tube clearance
- (1) O2 bung in each header for compatibility with EFI systems or air/fuel ratio meters (O2 bung plugs included)
Notes:
- Designed for use with Hooker Blackheart Header-Back Exhaust System 520-70501364-R (70501364-RHKR)
- Recommended to use Hooker Blackheart Transmission Crossmember 520-12644 (12644HKR)
- Does NOT include reducers
Emissions: This part is legal for sale or uses on Racing Use Only Vehicles. Racing Use Only Vehicles are vehicles that are used exclusively for a competition that are not registered and that may never be used on the street.
Lightweight, Stainless Steel Headers That Fit
BlackHeart Headers feature thick laser-cut flanges for a leak-free seal and the perfect combination of performance and fitment.
Part TypeHeader
Product LineHooker BlackHeart Headers
BrandHOOKER HEADERS
Package Height9.5
Package Width18.0
Package Length45.0
Weight40.0 PG
Part CategoryPerformance Parts
Coating/FinishNatural
Header Flange Thickness0.375 in (9.525 mm)
Mandrel-BentYes
QuantitySold as set of 2
Bolts/Studs IncludedYes
Engine Make/SizeSBC
Transmission Mount IncludedNo
Header Material304 Stainless steel
Gaskets IncludedYes
Port ShapeSquare
Carb CompliantNo
Collector Diameter3 in (76.2 mm)
Part FitmentSemi Universal
Reducers IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.625 in (41.3 mm)
Package Qty1
Package TypeEA
