Vehicle Info NeededICT BILLETPART NUMBER: 335-551177LS0-1

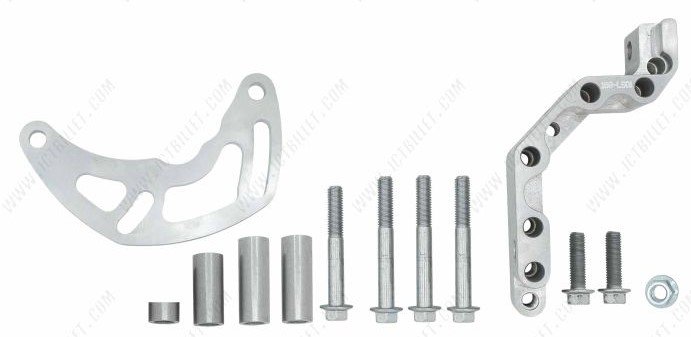

Low Mount Alternator Bracket for GM LS Engines w/Corvette Crank Pulley Spacing and Electric or Remote Water Pump or Motor Plate
$26500
Ships on 09/21/2026
Lowest Price GuaranteeAlternator Bracket Kits
Low Mount Alternator BracketGM LS Engines w/Corvette Crank Pulley Spacing For Electric or Remote Water Pump Only Compatible w/Front Motor Plate (but not required) Right/Passenger-Side Billet Aluminum Sold as a Kit
ICT Billet 551177LS0-1 Low Mount Alternator Bracket:
- GM LS engines with any year Corvette crank pulley
- Electric or remote water pump only
- Compatible with LS front motor plates
- Includes: alternator bracket and mounting hardware
- Aerospace-grade billet aluminum
ICT Billet 551177LS0-1 Low Mount Alternator Bracket Notes:
- 145 amp or 160 amp alternators may not work in some applications when using a front engine plate
- Will not fit Corvette, Cadillac CTSV, or Camaro large bolt pattern alternators. Will fit any other LS-powered vehicle alternators with any amperage
- Requires a 36 in. belt when used with a 105 amp alternator, 145/160 amp alternators will use approximately a 3/4 in. longer belt
LS Serpentine Drive Swaps Made Easy
ICT Billet is the brand LS swappers turn to for quality-built brackets to finish their modern engine transplant. GM LS accessory bracket kits are all manufactured using aerospace-grade 6061-T6 billet aluminum, with several options available to perform a junkyard motor or a new LS crate engine swap.
Part TypeAlternator Bracket
Product LineICT Billet LS Front Drive Accessory Bracket Kits
BrandICT BILLET
Package Height2.0
Package Width8.0
Package Length8.0
Weight3.0 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Alternator Bracket TypeLower mount
QuantitySold as a Kit
Lower Bracket Mounting StyleEngine block front mount
Alternator Mounting PositionPassenger side lower mount
Part FitmentSemi Universal
Bracket FinishNatural
Engine Make/SizeGM LS
Bracket MaterialBillet aluminum
Vendor Part Number551177LS0-1
Package Qty1
Package TypeEA
