Alternator Bracket Kits
Low Mount Alternator Bracket
  • GM LS Engines w/Camaro Crank Pulley Spacing
  • For Electric or Remote Water Pump Only
  • Compatible w/Front Motor Plate (but not required)
  • Right/Passenger-Side
  • Billet Aluminum
  • Sold as a Kit

    Dimensions

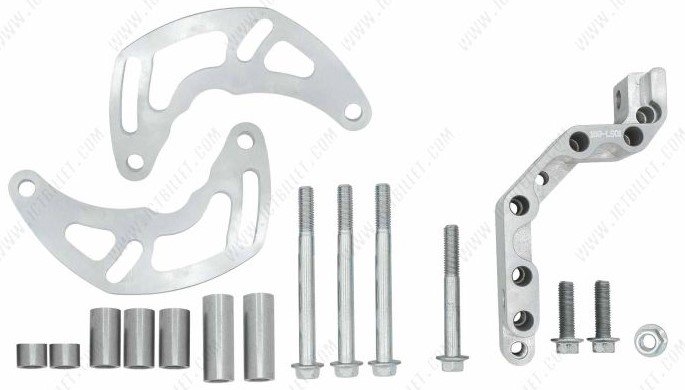

    ICT Billet 551177LS0-2 Low Mount Alternator Bracket:

    • GM LS1 engines with 1998-2002 Chevy Camaro or 2003-2006 Pontiac GTO crank pulley
    • Electric or remote water pump only
    • Compatible with LS front motor plates
    • Includes: alternator bracket and mounting hardware
    • Aerospace-grade billet aluminum

    ICT Billet 551177LS0-2 Low Mount Alternator Bracket Notes:

    • 145 amp or 160 amp alternators may not work in some applications when using a front engine plate
    • Will not fit Corvette, Cadillac CTSV, or Camaro large bolt pattern alternators. Will fit any other LS-powered vehicle alternators with any amperage
    • Requires a 36 in. belt when used with a 105 amp alternator, 145/160 amp alternators will use approximately a 3/4 in. longer belt

      • LS Serpentine Drive Swaps Made Easy

      ICT Billet is the brand LS swappers turn to for quality-built brackets to finish their modern engine transplant. GM LS accessory bracket kits are all manufactured using aerospace-grade 6061-T6 billet aluminum, with several options available to perform a junkyard motor or a new LS crate engine swap.

    Part TypeAlternator Bracket
    Product LineICT Billet LS Front Drive Accessory Bracket Kits
    BrandICT BILLET
    Package Height2.0
    Package Width8.0
    Package Length8.0
    Weight3.0 PG
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Alternator Bracket TypeLower mount
    QuantitySold as a Kit
    Lower Bracket Mounting StyleEngine block front mount
    Alternator Mounting PositionPassenger side lower mount
    Part FitmentSemi Universal
    Bracket FinishNatural
    Engine Make/SizeGM LS
    Bracket MaterialBillet aluminum
    Vendor Part Number551177LS0-2
    Package Qty1
    Package TypeEA
