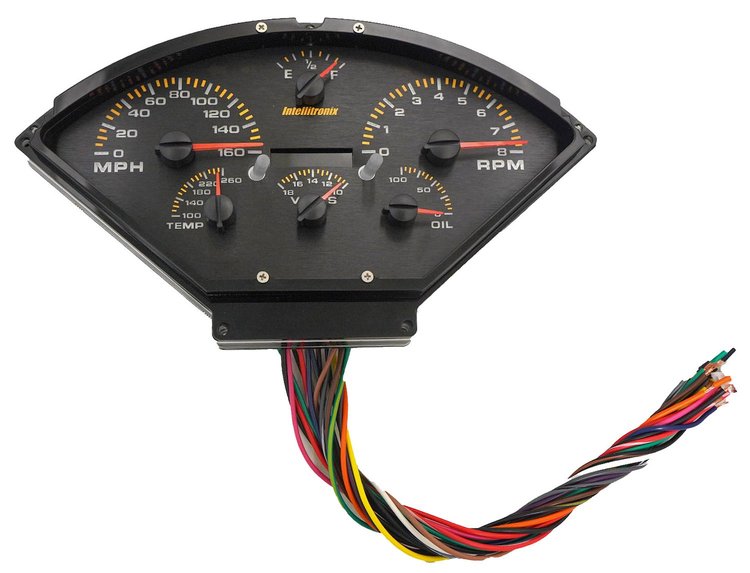

AP1101 Analog Replacement Gauge Panel for 1955-1956 Chevrolet Bel Air

Name: AP1101 Analog Replacement Gauge Panel for 1955-1956 Chevrolet Bel Air
Brand: INTELLITRONIX
SKU: 556-AP1101
Price: 745.50 USD
Availability: InStock

^$745⁵⁰

Ships on 09/16/2026

Lowest Price Guarantee

1955-1956 Chevy Bel Air

Direct-Fit Analog Dash Panel

1955-1956 Chevy Bel Air

Black Faceplate

Bezel Not Included

Includes Speedometer, Water and Oil Pressure Sending Units

Intellitronix AP1101 Replacement Analog Gauge Panel Features:

Gauge panel features essential components: speedometer, tachometer (for 8-6-4-cylinder engines), fuel gauge, voltmeter, oil pressure gauge, and water temperature gauge
Speedometer reaches up to 160 MPH, offers one-button calibration for different tire sizes, gear ratios, and transmissions. Functions include odometer, trip meter, high-speed recall, 0-60 time, and ¼ mile elapsed time, accessible with a button push
Voltmeter displays voltage readings from 10.0 to 18.0 volts
Oil pressure gauge measures from 0-100 psi
Tachometer covers 0 to 8000 in 100 RPM increments
Water temperature gauge reads from 100-260 degrees F
Fuel gauge customizable for GM 0-30 & 0-90 ohms ranges, includes turn signal and high beam indicators, check engine and automatic nighttime dimming
Installation kit includes necessary sending units, clear plexiglass, hardware, and detailed instructions

Intellitronix AP1101 Replacement Analog Gauge Panel Notes:

Includes all required sending and sensor units
Installing the gauge cluster may disable the cruise control system

Classic Design Dash Panels

When restoring your vehicle's interior, choose an Intellitronix direct-fit analog readout dash panel for show-stopping appeal. These classic-style panels work with mechanical and electronic transmissions and come complete with a Speedometer, Tachometer (for 8-6-4 cylinder), Fuel Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge, and Clock. Each analog instrument panel automatically dims after dark and also includes clear Plexiglass, turn signal and high beam indicators, sending units, mounting hardware, and installation instructions.

Part TypeGauge Panel

Product LineIntellitronix Direct-Fit Analog Dash Panels

BrandINTELLITRONIX

Package Height6.7

Package Width11.0

Package Length12.3

Weight2.95 PG

Part CategoryReplacement Parts

Universal Or Specific FitSpecific

Gauge Face ColorBlack

Gauges IncludedYes

Gauge Quantity6
