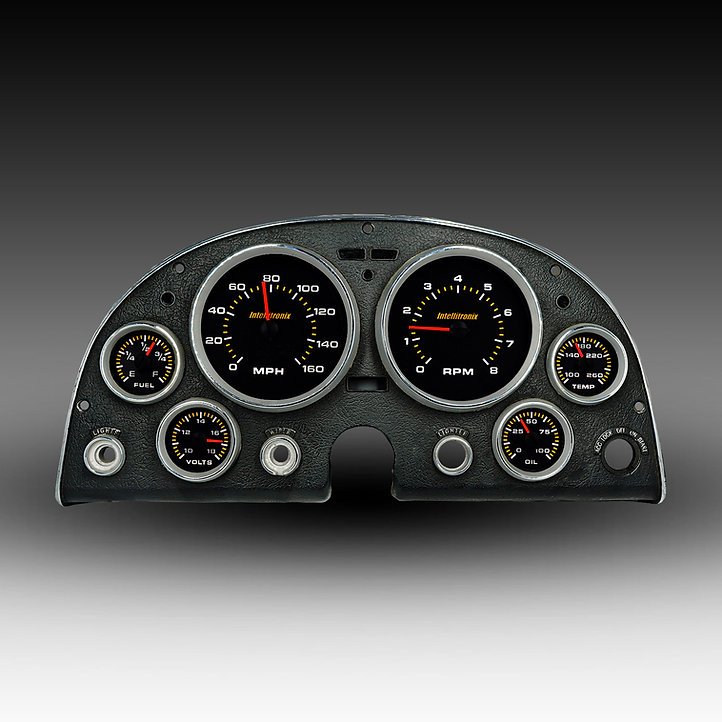

Intellitronix AP2000-S9020 Corvette Analog Gauge Panel Features:

• Complete with universal temperature sending unit, oil pressure sending unit, and speedometer sending unit for vehicles without electronic transmission or cruise control.
• Speedometer, Tachometer for 8-6-4-cylinder, Fuel Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge.
• Speedometer reads up to 160 MPH with one-button calibration, regardless of tire size, gear ratio, or transmission, for 8-6-4-cylinder engines. Odometer, trip meter, high-speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button!
• Voltmeter with high and low voltage reads from 10.0 to 18.0 volts range.
• Oil Pressure Gauge reads from 0-100 psi. Sending unit included.
• Tachometer reads from 0 to 8000 in 100 RPM increments.
• Water Temperature gauge reads from 100-260°F. Sending unit included.
• Fuel gauge is user programmable to work with GM 0-30 ohms or GM 0-90 ohms.
• Turn signal indicators, high beam indicator, and parking brake indicator.
• 1963-67 Corvette Analog Replacement Gauge Panel comes with a factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.

Intellitronix AP2000-S9020 Corvette Analog Gauge Panel Notes:

• Bezel Not Included
• Al required sending and sensor units are included
