Breakdown of Included Items

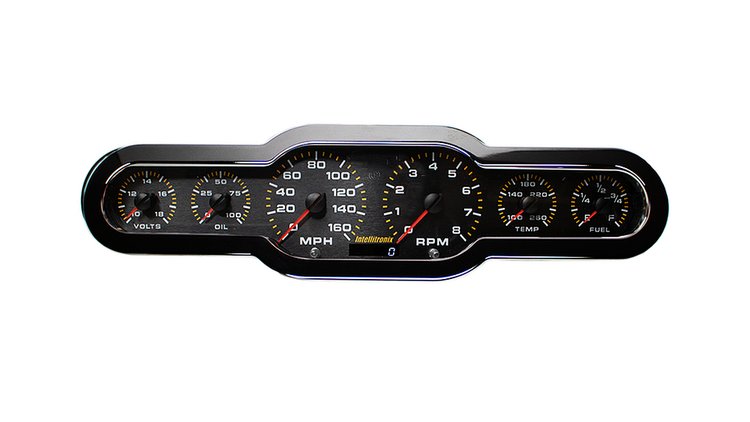

Intellitronix AP20002 Features:

• White backlight
• Chromed bezel
• Digital clock
• Automatic night dimming
• Clear plexiglass faceplate
• Universal temperature and oil pressure  sending units
• GM/Mopar/VW style speedometer
• Installation instructions
• Dimensions
  • Length: 17.00 in.
  • Height: 4.75 in.
  • Width: 2.75 in.

Notes:

• Built-in turn signal and high-beam indicators
• Compatible with 4, 6, 8 cylinder engines
• Works with any mechanical or electronic transmission

Speedometer:

• Reads 0-160 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall

Tachometer:

• Displays 0-8,000 RPM in 100 RPM increments

Water Temperature:

• Displays 100-260 Degrees F
• Includes S8013 sending unit
• 1/2 (.500) in. bushing

Oil Pressure:

• Reads 0-100 psi
• Includes S8434 oil pressure sending unit

Voltmeter:

• Reads 10-18 V
• No sending unit required

Fuel Level:

• Reads 0-99 percent in 1 percent increments
• Programmable - Works with Chrysler, Ford, GM, VDO fuel level sending units or aftermarket units with industry-standard 240-233 ohm senders
