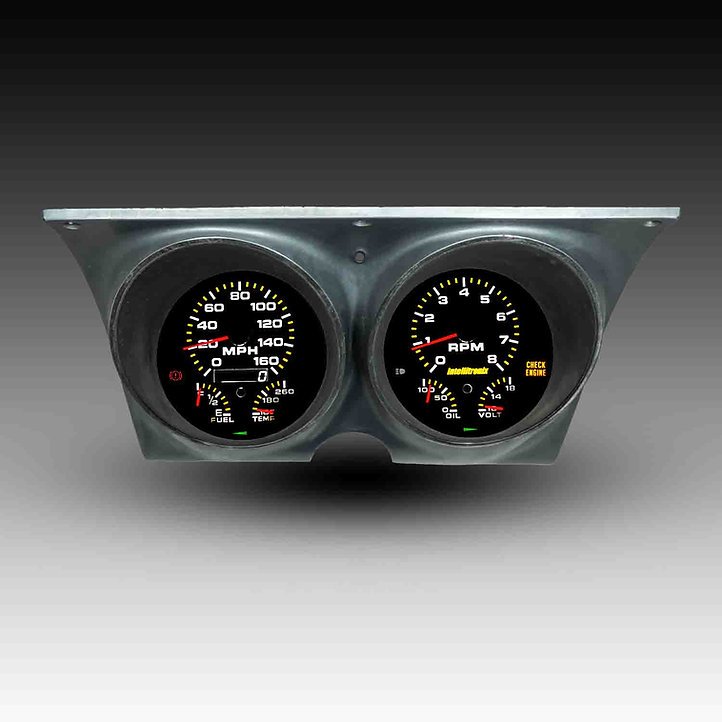

AP4000-S9020 Analog Replacement Gauge Panel w/GPS Sending Unit for 1967-1968 Chevy Camaro, 1967-1968 Pontiac Firebird

Name: AP4000-S9020 Analog Replacement Gauge Panel w/GPS Sending Unit for 1967-1968 Chevy Camaro, 1967-1968 Pontiac Firebird
Brand: INTELLITRONIX
SKU: 556-AP4000-S9020
Price: 824.77 USD
Availability: InStock

^$824⁷⁷

Ships on 09/22/2026

Lowest Price Guarantee

1967-1968 Chevy Camaro/Pontiac Firebird

Replacement Analog Gauge Panel

1967-1968 Chevy Camaro, 1967-1968 Pontiac Firebird

Intellitronix AP4000-S9020 Replacement Analog Gauge Panel Features:

Gauge panel features essential components: speedometer, tachometer (for 8-6-4-cylinder engines), fuel gauge, voltmeter, oil pressure gauge, water temperature gauge, and clock.
Speedometer reaches up to 160 MPH, offers one-button calibration for different tire sizes, gear ratios, and transmissions. Functions include odometer, trip meter, high-speed recall, 0-60 time, and ¼ mile elapsed time, accessible with a button push.
Voltmeter displays voltage readings from 10.0 to 18.0 volts, oil pressure gauge measures from 0-100 psi.
Tachometer covers 0 to 8000 in 100 RPM increments, water temperature gauge reads from 100-260°F.
Fuel gauge customizable for GM 0-30 & 0-90 ohms ranges, includes turn signal and high beam indicators.
Installation kit includes necessary sending units, clear plexiglass, hardware, and detailed instructions.
Note: Installing the gauge cluster may disable the cruise control system.
Hassle-free installation, lifetime warranty, high-quality gauges

Intellitronix AP4000-S9020 Replacement Analog Gauge Panel Notes:

Bezel Not Included
Includes all required sending and sensor units

Classic Design Dash Panels

When restoring your vehicle's interior, choose an Intellitronix direct-fit analog readout dash panel for show-stopping appeal. These classic-style panels work with mechanical and electronic transmissions and come complete with a Speedometer, Tachometer (for 8-6-4 cylinder), Fuel Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge, and Clock. Each analog instrument panel automatically dims after dark and also includes clear Plexiglass, turn signal and high beam indicators, sending units, mounting hardware, and installation instructions.

Part TypeGauge

Product LineIntellitronix Direct-Fit Analog Dash Panels

BrandINTELLITRONIX

Package Height6.7

Package Width10.3

Package Length12.4

Weight3.6 PG

Part CategoryReplacement Parts

Part FitmentDirect Fit

Vendor Part NumberAP4000-S9020

Package Qty1

Package TypeEA
