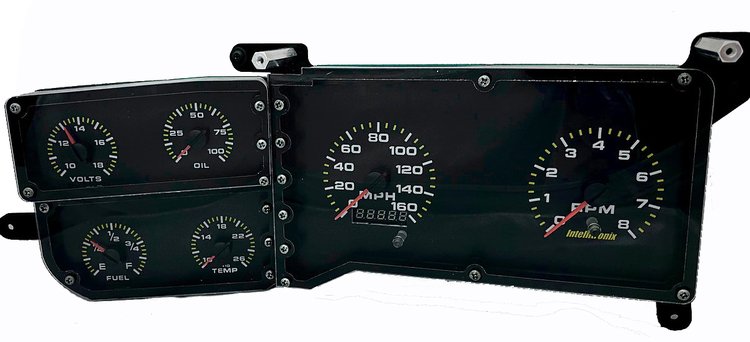

Intellitronix AP6004 Features:

• Includes all sensors and sending units required for installation
• Check engine light/high beam/turn signals/brake light indicators
• Automatic night-time dimming
• Acrylic plexiglass faceplate
• Installation instructions

Notes:

• Housing/bezel not included
• Includes 1/2 in. bushing for the oil pressure sender, 3/8 in. is available upon request

Speedometer:

• Reads 0-160 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall

Tachometer:

• Displays 0-8,000 RPM in 1000, RPM increments
• Programmable for 4-6-8 cylinder engines

Water Temperature:

• Displays 100-260 Degrees F
• 1/2 (.500) in. bushing

Oil Pressure:

• Reads 0-80 psi

Voltmeter:

• Reads 10.0-18.0 V
• No sending unit required

Fuel Level:

• Reads 1/4 increments
• Works with 0-90 ohms sending units
