Breakdown of Included Items

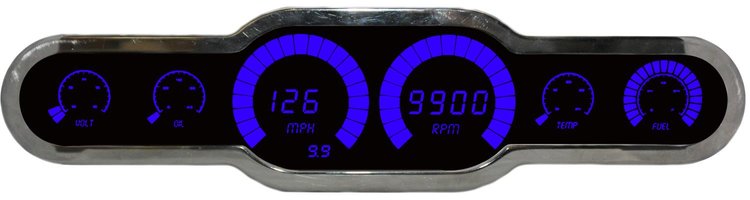

Intellitronix BG10002B Features:

• Blue LED readout display
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer sending units
• Installation instructions
• Dimensions: 16.437 in. L x 4 in. H x .750 W

Notes:

• Can be used with electronic transmission and cruise control
• Includes 1/2 in. bushing for the oil pressure sender, 3/8 in. is available upon request

Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Includes S9013 sending unit

Tachometer:

• Displays 0-9,900 RPM in 100 RPM increments

Water Temperature:

• Displays 160-240 Degrees F
• Includes S8013 sending unit
• 1/2 (.500) in. bushing

Oil Pressure:

• Reads 0-80 psi
• Includes S8434 oil pressure sending unit

Voltmeter:

• Reads 12.0-16.0 V
• No sending unit required

Fuel Level:

• Reads empty-to-full in 1/4 increments
• Works with industry-standard 0-90 ohms
