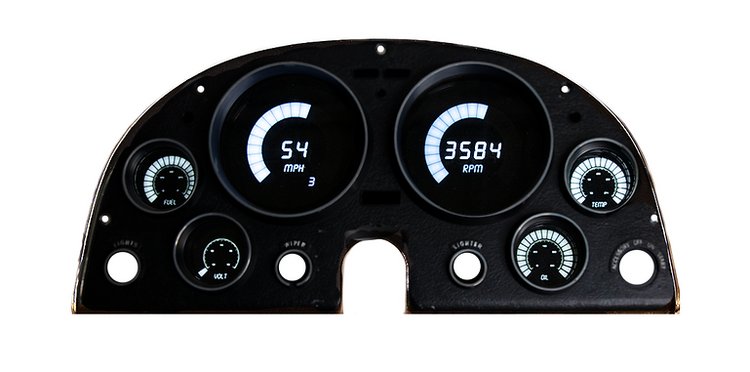

This LED digital bargraph panel replaces the factory gauges in 1963-1967 Chevy Corvette models with white LED displays. It reads speed to 255 MPH, RPM to 9999, water temperature, oil pressure, voltage and fuel, with peak RPM recall and automatic night dimming.

Intellitronix BG2000W LED Bargraph Gauge Panel Features:

• Fits 1963-1967 Chevy Corvette
• Speedometer reads to 255 MPH with odometer, trip meter and one-button calibration
• Speedometer records 0-60 time, 1/4-mile elapsed time and high-speed recall
• Tachometer reads 0-9999 RPM in 100, 10 or 1 RPM increments with peak RPM recall and a 3-amp RPM switch
• Water temperature gauge reads 160-240 F
• Oil pressure gauge reads 0-80 PSI
• Voltmeter reads 12-16 volts with no sending unit required
• Fuel gauge reads empty to full in 1/4 increments, set for 0-90 ohm senders
• Turn signal and high beam indicators, with automatic night dimming
• Includes direct-fit circuit boards, smoked plexiglass faceplate, S9013 speed sender, S8013 temperature sender, oil pressure sender and hardware

Intellitronix BG2000W Installation Notes:

• Bezel not included
• Fuel gauge is set for 0-90 ohm senders; confirm the fuel sender ohm range
• Water temperature sender ships with a 1/2 in. bushing; a 3/8 in. bushing is sold separately
• GM LS engines may require the 8014LS swap kit, sold separately
