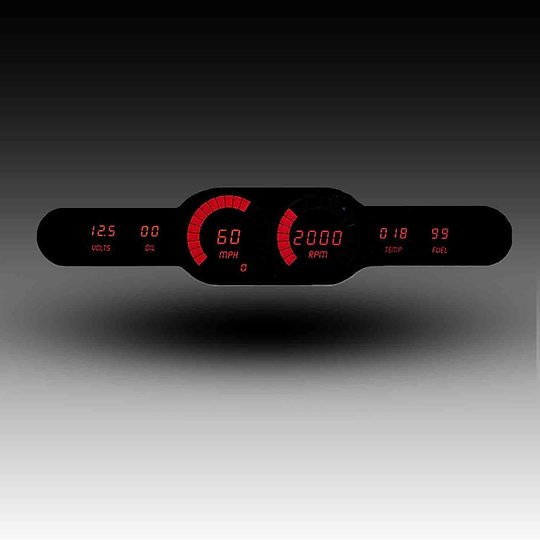

Six-Gauge Universal Bar Sweep LED Digital Panel [Red]

Name: Six-Gauge Universal Bar Sweep LED Digital Panel [Red]
Brand: INTELLITRONIX
SKU: 556-DP10004R
Price: 449.22 USD
Availability: InStock

^$449²²

Ships on 09/14/2026

Lowest Price Guarantee

Six-Gauge Universal LED Digital Panels

Six-Gauge Universal Bar Sweep LED Digital Panel

Red

Speedometer: 0-255 MPH

Tachometer: 0-9,900 RPM

Water Temperature: 18-255 Degrees F

Oil Pressure: 0-99 PSI

Voltmeter: 7.0-18.5 V

Intellitronix DP10004R Six-Gauge Universal Bar Sweep LED Digital Panel Features:

Dimensions: 16 3/4 in. L x 3/4 in. deep x 4 in. H
Speedometer: Reads up to 255 mph, includes odometer, trip meter, one-button calibration, 0-60 time, ¼ mile, and high-speed recall
Tachometer: 0 – 9900 RPM in 100 RMP increments
Water Temp Display: 18 – 255° F range
Oil Pressure Display: 0 – 99 PSI range
Voltmeter Display: 7.0 – 18.5 volt range
Fuel Level Display: 0 – 99% range in 1% increments
User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders. Indicators: Left & Right turn signals, high beam & brake

Bright LED Gauge Panels

Intellitronix Six Gauge Universal LED Digital Panels consist of a Speedometer (0-255 mph), Tachometer (0-9900 rpm), Water Temperature Gauge (50-350 degrees), Fuel Gauge (0-99%), Right/Left Turn Signal Indicators, High Beam Indicator, and Speedometer/Water Temperature/Oil Pressure Sending Units. Each digital ultra-bright LED panel is designed to be blacked out when ignition is off. The panel measures 13.75" W x 3" H x .75" D and includes a smoke Plexiglas lens with automatic night dimming.

Features:

Great Looks & Functionality
Automatic night dimming
Voltmeter with high and low voltage alarm, reads from 7.0 to 25.5
Oil Pressure Gauge, reads from 0-100 psi
Speedometer reads up to 255 MPH, includes odometer, trip meter, high-speed recall, 0-60 time and ¼ mile elapsed time (ET)
Tachometer reads from 0 to 9900 RPM.
The water Temperature Gauge, reads from 50 to 350 degrees
Fuel Gauge, programmable to work with Ford, GM, Chrysler, VDO and aftermarket sending units. Reads from 0-99%
Right and Left LED turn signal indicators
High Beam LED indicator
Includes Speedometer sending unit, water temperature sending unit, oil pressure sending unit
Choice of LED Colors: Torch Red, Royal Blue, Aviation Green, or Arctic White
