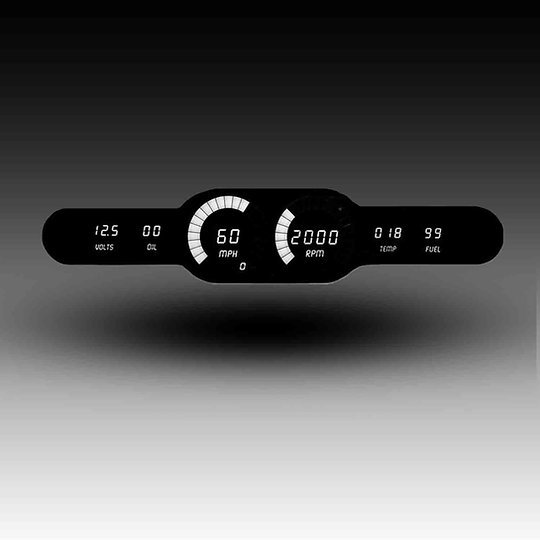

Six-Gauge Universal Bar Sweep LED Digital Panel [White]
InfoVehicle Info Needed
INTELLITRONIXPART NUMBER: 556-DP10004W

Six-Gauge Universal Bar Sweep LED Digital Panel [White]

$47169
ShippingShips on 11/20/2026
Lowest PriceLowest Price Guarantee

Items You Need

Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2974
$1599$22.09
You Save$6.10
Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
10799 Contact Cleaner, Non-Chlorinated

LUCAS OIL

10799 Contact Cleaner, Non-Chlorinated

Part Number : 639-10799
$1017$10.99
You Save$0.82
105-Piece Heat Seal Crimp Connector Kit

JEGS

105-Piece Heat Seal Crimp Connector Kit

Part Number : 555-10700
$5199$57.99
You Save$6.00

Six-Gauge Universal LED Digital Panels
Six-Gauge Universal Bar Sweep LED Digital Panel
  • White
  • Speedometer: 0-255 MPH
  • Tachometer: 0-9,900 RPM
  • Water Temperature: 18-255 Degrees F
  • Oil Pressure: 0-99 PSI
  • Voltmeter: 7.0-18.5 V

    Intellitronix DP10004W Six-Gauge Universal Bar Sweep LED Digital Panel Features:

    • Dimensions: 16 3/4 in. L x 3/4 in. deep x 4 in. H
    • Speedometer: Reads up to 255 mph, includes odometer, trip meter, one-button calibration, 0-60 time, ¼ mile, and high-speed recall
    • Tachometer: 0 – 9900 RPM in 100 RMP increments
    • Water Temp Display: 18 – 255° F range
    • Oil Pressure Display: 0 – 99 PSI range
    • Voltmeter Display: 7.0 – 18.5 volt range
    • Fuel Level Display: 0 – 99% range in 1% increments
    • User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders. Indicators: Left & Right turn signals, high beam & brake

    • Bright LED Gauge Panels

    Intellitronix Six Gauge Universal LED Digital Panels consist of a Speedometer (0-255 mph), Tachometer (0-9900 rpm), Water Temperature Gauge (50-350 degrees), Fuel Gauge (0-99%), Right/Left Turn Signal Indicators, High Beam Indicator, and Speedometer/Water Temperature/Oil Pressure Sending Units. Each digital ultra-bright LED panel is designed to be blacked out when ignition is off. The panel measures 13.75" W x 3" H x .75" D and includes a smoke Plexiglas lens with automatic night dimming.

    Show More

    Features:

    • Great Looks & Functionality
    • Automatic night dimming
    • Voltmeter with high and low voltage alarm, reads from 7.0 to 25.5
    • Oil Pressure Gauge, reads from 0-100 psi
    • Speedometer reads up to 255 MPH, includes odometer, trip meter, high-speed recall, 0-60 time and ¼ mile elapsed time (ET)
    • Tachometer reads from 0 to 9900 RPM.
    • The water Temperature Gauge, reads from 50 to 350 degrees
    • Fuel Gauge, programmable to work with Ford, GM, Chrysler, VDO and aftermarket sending units. Reads from 0-99%
    • Right and Left LED turn signal indicators
    • High Beam LED indicator
    • Includes Speedometer sending unit, water temperature sending unit, oil pressure sending unit
    • Choice of LED Colors: Torch Red, Royal Blue, Aviation Green, or Arctic White
    Part TypeGauge
    Product LineIntellitronix Six Gauge Universal LED Digital Panels
    BrandINTELLITRONIX
    Package Height4.0
    Package Width8.0
    Package Length20.0
    Weight3.0 PG
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Vendor Part NumberDP10004W
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
    p65 warning
