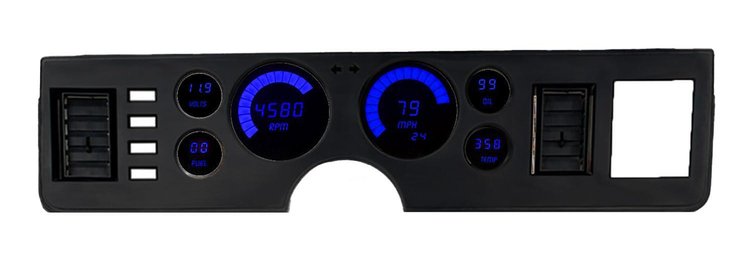

Intellitronix DP6015B LED Direct Replacement Digital Bargraph Dash Kit Features:

• Automatic nighttime dimming
• Displays brake indicators, turn signals, and high beams
• Blue LED readout display
• Universal temperature, oil pressure, and speedometer sending units
• Installation instructions

Notes:

• Housing/bezel not included
• Compatible with any mechanical or electronic transmissions
• Includes 1/2 in. bushing for the oil pressure sender, 3/8 in. is available upon request

Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Includes S9013 sending unit

Tachometer:

• Displays 0-9,999 RPM
• Readout can be displayed in 9999, 9990, or 9900 RPM increments

Water Temperature:

• Displays 100-300 Degrees F
• Includes S8023 sending unit

Oil Pressure:

• Reads 0-100 psi

Voltmeter:

• Reads 7.0-18.0 V
• No sending unit required

Fuel Level:

• Fuel Level shows a range of 0-99% in 1% steps
• Programmable for 270-20, 220-20, 0-90, and 10-180 ohms
