White Lightning Direct-Fit Analog Gauge Panel for 1967-1972 Chevy Trucks [White]

Vehicle Info Needed

INTELLITRONIXPART NUMBER: 556-WL6003W

White Lightning Direct-Fit Analog Gauge Panel for 1967-1972 Chevy Trucks [White]

Name: White Lightning Direct-Fit Analog Gauge Panel for 1967-1972 Chevy Trucks [White]
Brand: INTELLITRONIX
SKU: 556-WL6003W
Price: 745.50 USD
Availability: InStock

^$745⁵⁰

Ships on 09/16/2026

Lowest Price Guarantee

1967-1972 Chevy Truck

White Lightning Direct-Fit Analog Gauge Panel

1967-1972 Chevy Truck

Speedometer: 0-160 MPH

Tach: 0-8,000 RPM

Water Temp: 100-260 Degrees F

Oil Pressure: 0-80 PSI

Volts: 10.0-18.0 V

Fuel: 1/4 Increments

Digital Clock

White

Breakdown of Included Items

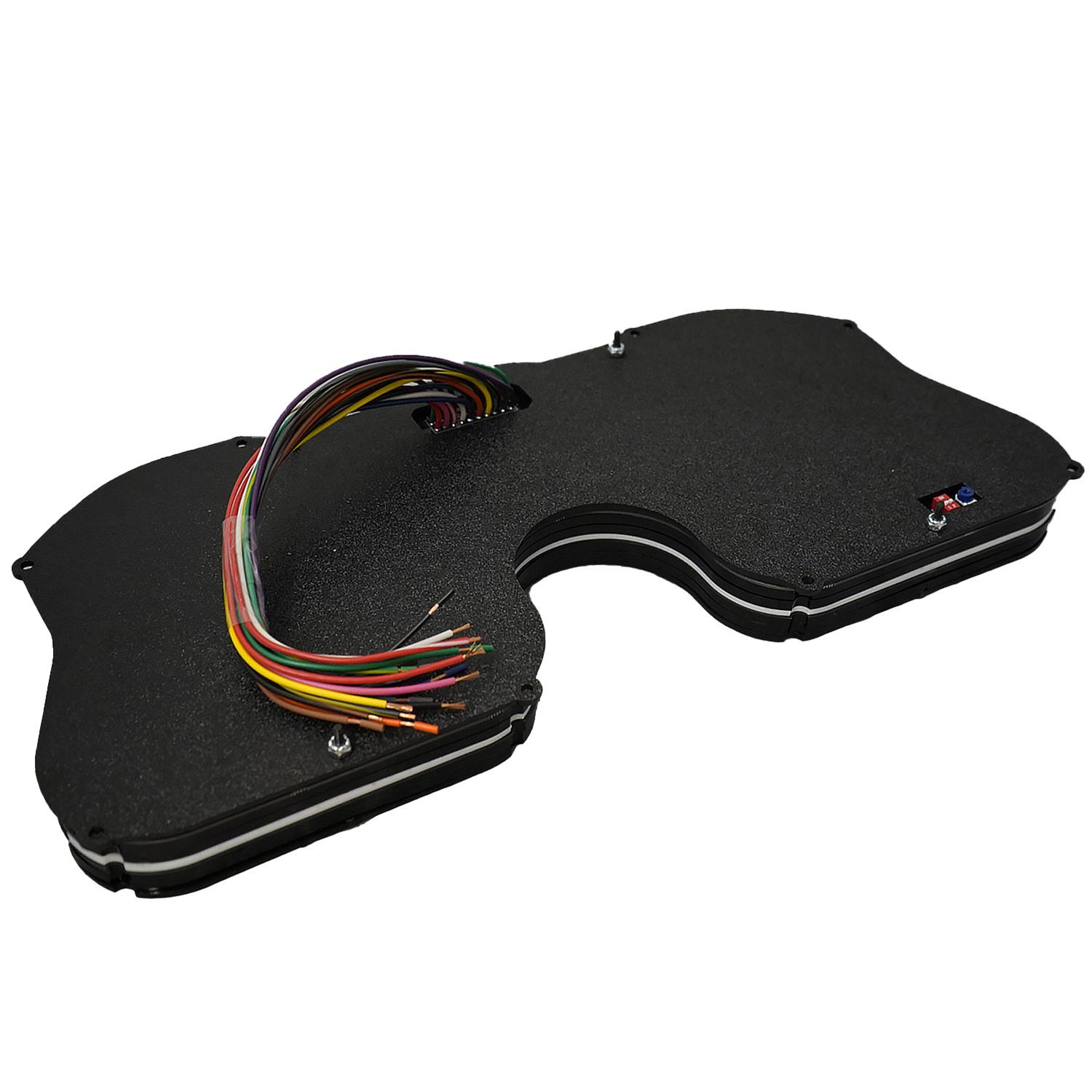

Intellitronix WL6003W Direct-Fit Analog Gauge Panel Features:

Includes all sensors and sending units required for installation
White readout
Check engine light/high beam/turn signals/brake light indicators
Automatic night-time dimming
White polycarbonate subsurface
Installation instructions

Notes:

Housing/bezel not included
Includes 1/2 in. bushing for the oil pressure sender, 3/8 in. is available upon request

Speedometer:

Reads 0-160 MPH
Odometer and trip meter
One-button calibration
0-60 time, 1/4 mile elapsed time, and high-speed recall

Tachometer:

Displays 0-8,000 RPM in 100, RPM increments

Water Temperature:

Displays 100-260 Degrees F
1/2 (.500) in. bushing

Oil Pressure:

Reads 0-100 psi

Voltmeter:

Reads 10.0-18.0 V
No sending unit required

Fuel Level:

Reads 1/4 increments
Work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders due to the user-programmable capability

Classic Design Dash Panels

When restoring your vehicle's interior, choose an Intellitronix direct-fit analog readout dash panel for show-stopping appeal. These classic-style panels work with mechanical and electronic transmissions and come complete with a Speedometer, Tachometer (for 8-6-4 cylinder), Fuel Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge, and Clock. Each analog instrument panel automatically dims after dark and also includes clear Plexiglass, turn signal and high beam indicators, sending units, mounting hardware, and installation instructions.

Part TypeGauge Panel

Product LineIntellitronix Direct-Fit Analog Dash Panels

BrandINTELLITRONIX

Package Height6.9

Package Width12.9

Package Length23.7

Weight5.8 PG

Part CategoryPerformance Parts

Sending Unit IncludedYes

Gauge Panel MaterialPolycarbonate

Gauge Face ColorWhite

Gauges IncludedYes
