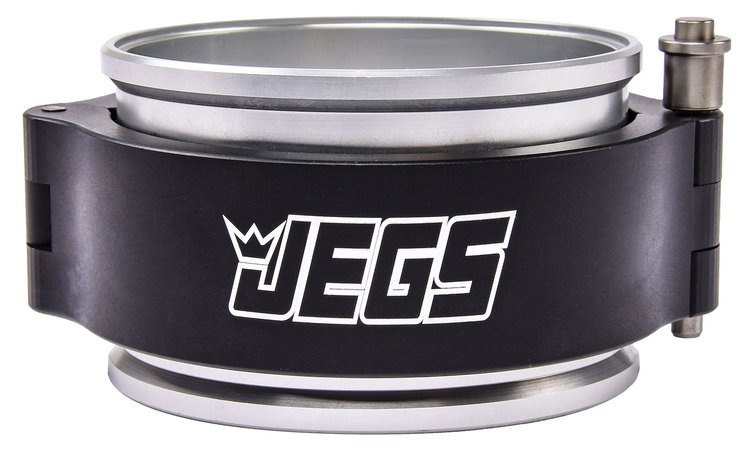

JEGS 109002 3 in. heavy-duty quick-release clamp assembly was developed for forced induction & custom air intake systems. It's unique quick-release locking system keeps your tubing connections secure while simplifying removal for those last minute adjustments at the track.

Features:

• Designed to withstand up to 400 degrees F and 800 psi of pressure
• Quick-release clamp is made from sturdy 6061-T6 billet aluminum and uses a stainless steel push button locking pin, taking seconds to disassemble
• 2-piece aluminum weld ferrule is made from 6061 aluminum and CNC machined with a flanged counter-bore. (This allows the matching tube size to easily slip into the flange and weld into place with the proper alignment)
• Leak-free, flanged and o-ringed design stays sealed under minor misalignments and flex

Includes:

• (1) JEGS Heavy-Duty Quick-Release Clamp with Push Button Locking Pin & JEGS Logo 555-109012

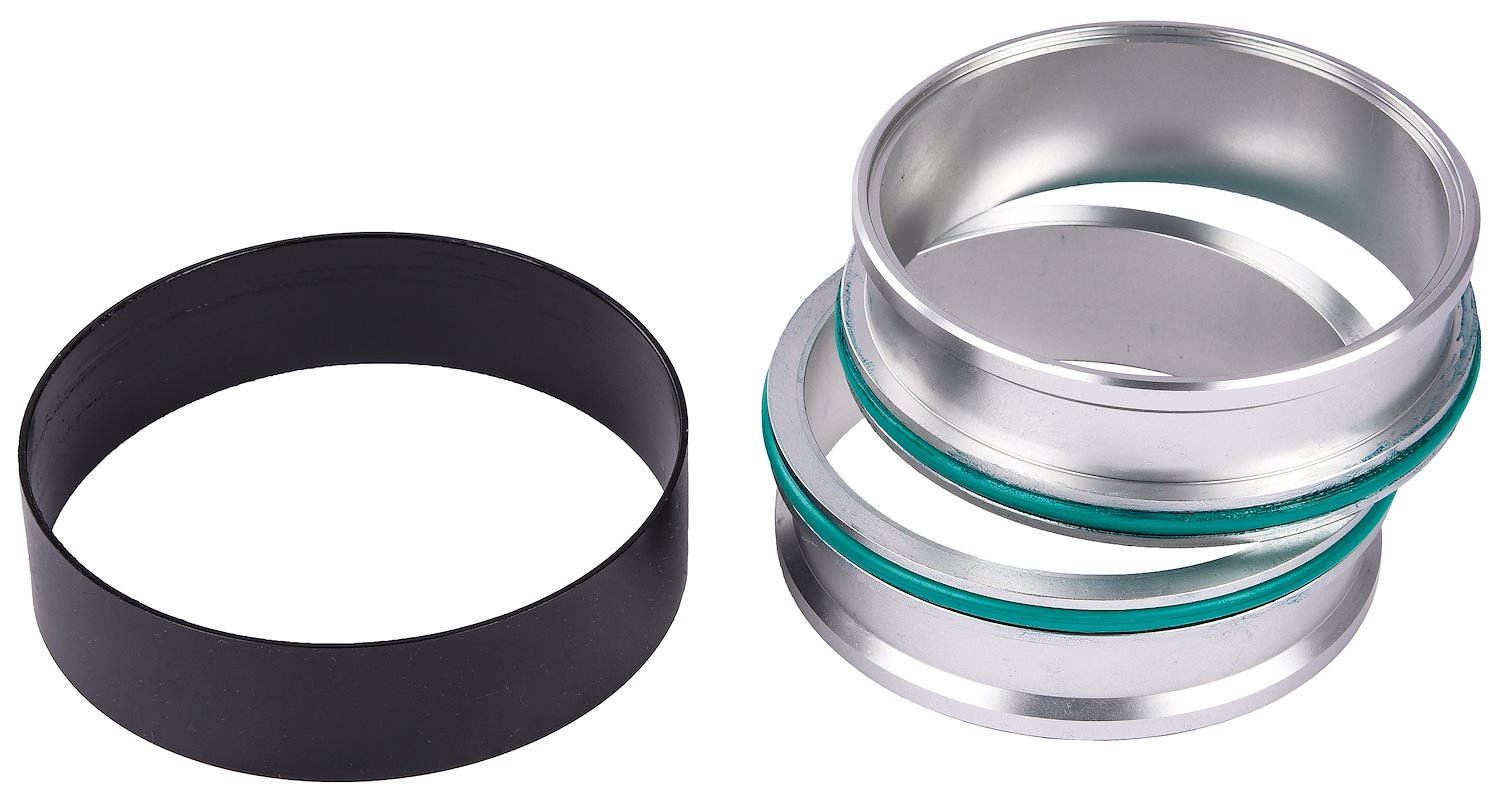

• (1) JEGS 2-Piece Aluminum Weld Ferrule 555-109042 with (2) O-rings 555-109032. Stainless Steel Weld Ferrules can be Purchased Separately We Recommend JEGS 555-109050
• (1) JEGS Union Sleeve 555-109022

Note: Additional heavy-duty quick-release clamp assembly choices include 2.500 in. 555-109000, 3.500 in. 555-109004, 4 in. 555-109006 and 5 in. 555-109008

Specifications:

• Quick-Release Clamp:
  • Outside Diameter: 3.570 in.
  • Inside Diameter: 3.410 in.
  • Width: 1.186 in.
  • Locking Pin Hole Inside Diameter: .200 in.
• Quick-Release Locking Pin:
  • Overall Length: 1.910 in.
  • Engaged Length: 1.167 in.
  • Outside Diameter: .192 in.
• Union Sleeve:
  • Outside Diameter: 3.410 in.
  • Inside Diameter: 3.320 in.
  • Width: .886 in.
  • Thickness: .045 in.
• 2-Piece Aluminum Weld Ferrule (EA Half):
  • Outside Diameter: 3.020 in.
  • Inside Diameter: 2.880 in.
  • Width: 1.000 in.
  • Overall Width: 2.000 in or 1.000 in. (each half)
  • Tube Flange Inside Diameter: 3.010 in with .056 in. recess for tube fitment
• O-ring:
  • Outside Diameter: 3.360 in.
  • Inside Diameter: 3.090 in.
  • Thickness: .135 in.
