Heavy-Duty Quick-Release Clamp Assembly for Air Intake Systems [3.500 in.]

Name: Heavy-Duty Quick-Release Clamp Assembly for Air Intake Systems [3.500 in.]
Brand: JEGS
SKU: 555-109004
Price: 154.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

HD Clamp Assembly

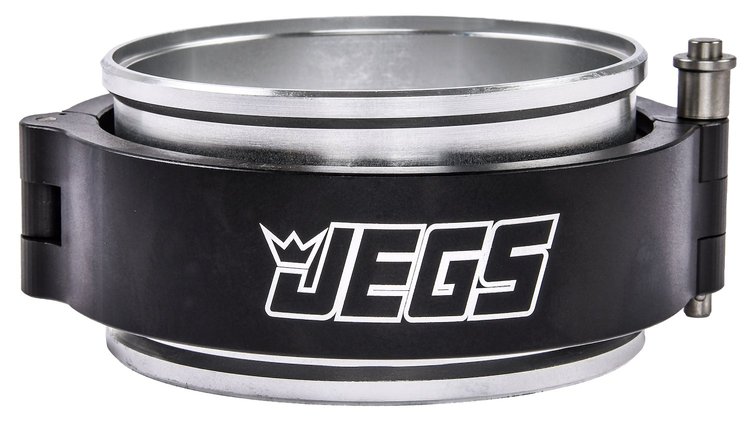

Heavy-Duty Quick-Release Clamp Assembly

For 3.500 in. Outer Diameter Tubing

Aluminum

Anodized Black Finish Clamp

Includes:

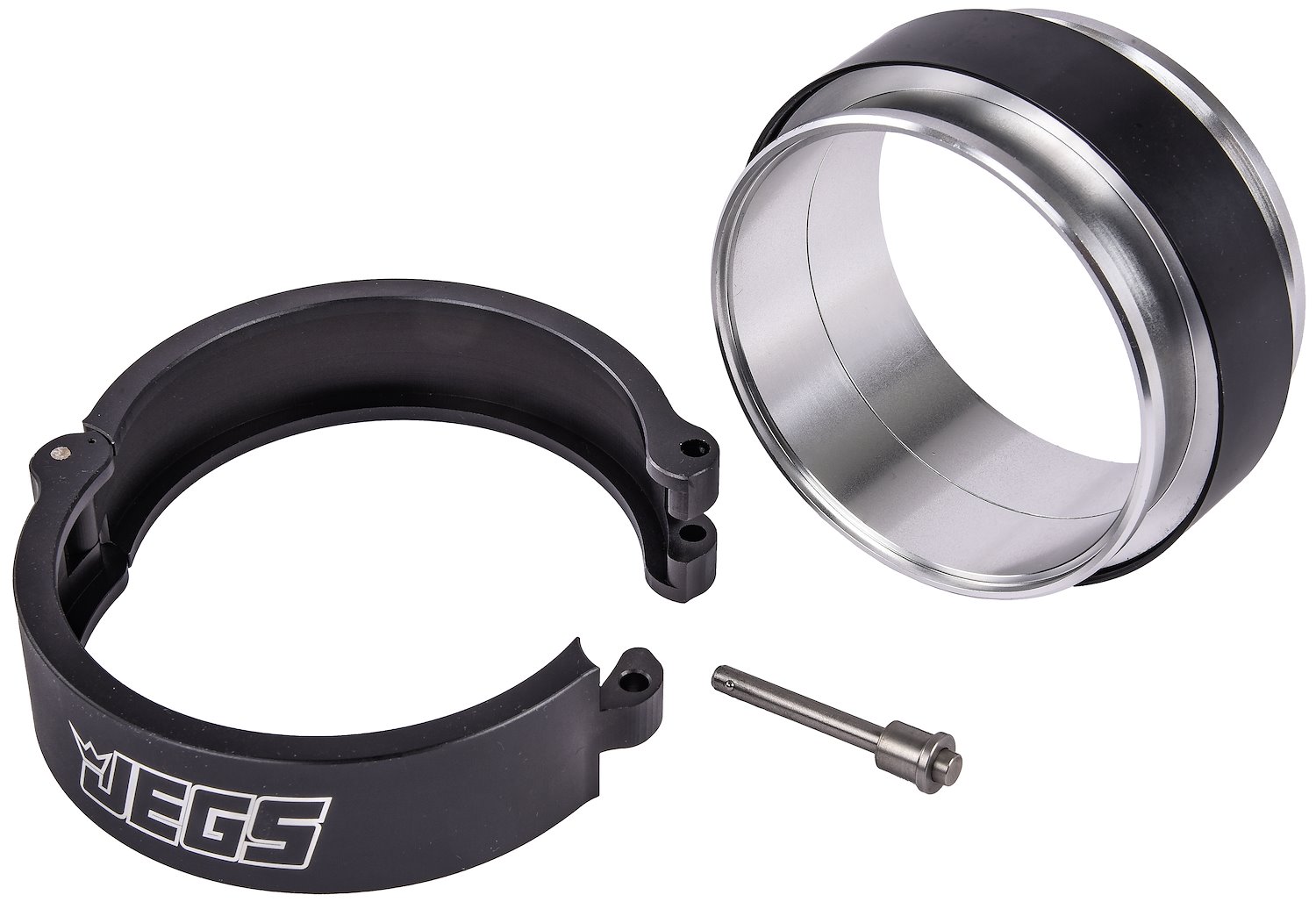

(1) Clamp
(1) 2-Piece Aluminum Weld Ferrule with O-Rings
(1) Union Sleeve
(1) Locking Pin

JEGS 109004 3.500 in. heavy-duty quick-release clamp assembly was developed for forced induction & custom air intake systems. It's unique quick-release locking system keeps your tubing connections secure while simplifying removal for those last minute adjustments at the track.
Features:
- Designed to withstand up to 400 degrees F and 800 psi of pressure
- Quick-release clamp is made from sturdy 6061-T6 billet aluminum and uses a stainless steel push button locking pin, taking seconds to disassemble
- 2-piece aluminum weld ferrule is made from 6061 aluminum and CNC machined with a flanged counter-bore. (This allows the matching tube size to easily slip into the flange and weld into place with the proper alignment)
- Leak-free, flanged, and o-ringed design stays sealed under minor misalignments and flex
Includes:
- (1) JEGS Heavy-Duty Quick-Release Clamp with Push Button Locking Pin & JEGS Logo 555-109014
- (1) JEGS 2-Piece Aluminum Weld Ferrule 555-109044 with (2) O-rings 555-109034. Stainless Steel Weld Ferrules can be purchased separately We Recommend JEGS 555-109052
- (1) JEGS Union Sleeve 555-109024
Note: Additional heavy-duty quick-release clamp assembly choices include 2.500 in. 555-109000, 3 in. 555-109002, 3.500 in. 555-109004 and 4 in. 555-109006
Specifications:
- Quick-Release Clamp:
  - Outside Diameter: 4.285 in.
  - Inside Diameter: 4.085 in.
  - Width: 1.186 in.
  - Locking Pin Hole Inside Diameter: .200 in.
- Quick-Release Locking Pin:
  - Overall Length: 1.910 in.
  - Engaged Length: 1.167 in.
  - Outside Diameter: .192 in.
- Union Sleeve:
  - Outside Diameter: 4.045 in.
  - Inside Diameter: 3.955 in.
  - Width: .898 in.
  - Thickness: .045 in.
- 2-Piece Aluminum Weld Ferrule (EA Half):
  - Outside Diameter: 3.500 in.
  - Inside Diameter: 3.385 in.
  - Width: 1.000 in.
  - Overall Width: 2.000 in or 1.000 in. (each half)
  - Tube Flange Inside Diameter: 3.515 in with .115 in. recess for tube fitment
- O-ring:
  - Outside Diameter: 4 in.
  - Inside Diameter: 3.730 in.
  - Thickness: .135 in.

Flexible Billet Aluminum HD Quick-Release Clamps for High Pressure Air Intake Systems

The modular design of JEGS Heavy-Duty Quick-Release Clamp Assemblies makes them perfect for connecting forced induction and custom air intake system tubing. This style of clamp utilizes a quick-release pin, making disassembly a breeze when it comes to changing broken parts, cleaning, or inspection. With each clamp capable of handling up to 800 psi, and available in a variety of sizes, we are sure to have just the right connector for your next project!

Part TypeTubing Coupler Component

Product LineJEGS Air Intake Heavy-Duty Quick-Release Clamp Assemblies

BrandJEGS

Package Height2.5

Package Width4.25

Package Length4.25

Weight0.62 PG

Part CategoryPerformance Parts

Tubing Coupler Component TypeFerrules

Part FitmentUniversal

Package Qty1

Package TypeEA
