![Replacement 2-Piece Aluminum Weld Ferrule for 555-109004 [3.500 in.]](https://www.jegs.com/images/mini_750/500/555/555-109044.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-109044

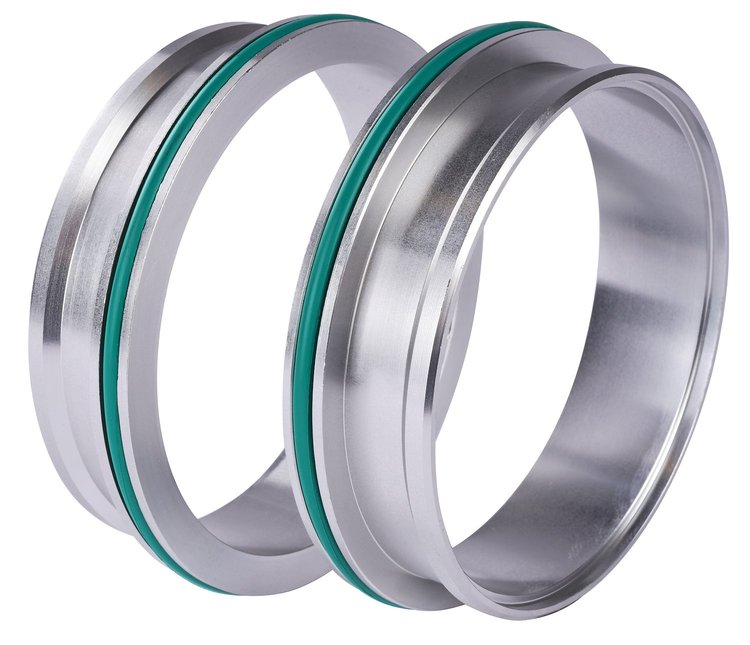

Replacement 2-Piece Aluminum Weld Ferrule for 555-109004 [3.500 in.]
$699$8.74You Save$1.75
1 left in stock
Ships Today
Lowest Price GuaranteeItems You Need
![TIG 200 DC Welder [120/220V]](https://www.jegs.com/images/mini_200/500/555/555-81542.jpg)
![TIG/Arc 200 AC/DC Welder [Single Phase 120V/220V]](https://www.jegs.com/images/mini_200/500/555/555-81563.jpg)
![Welding Cart [36 1/2 in. L x 17 3/8 in. W x 30 1/2 in. H]](https://www.jegs.com/images/mini_200/500/555/555-81639.jpg)
![Welding Cart [30 in. L x 12.5 in. W x 16 in. H]](https://www.jegs.com/images/mini_200/500/555/555-81543.jpg)
Replacement Aluminum Weld Ferrules
Replacement 2-Piece Aluminum Weld FerruleFor 3.500 in. Heavy-Duty Quick-Release Clamp Assembly 555-109004 Includes:
- (1) 2-Piece Aluminum Weld Ferrule with O-Ring Seals

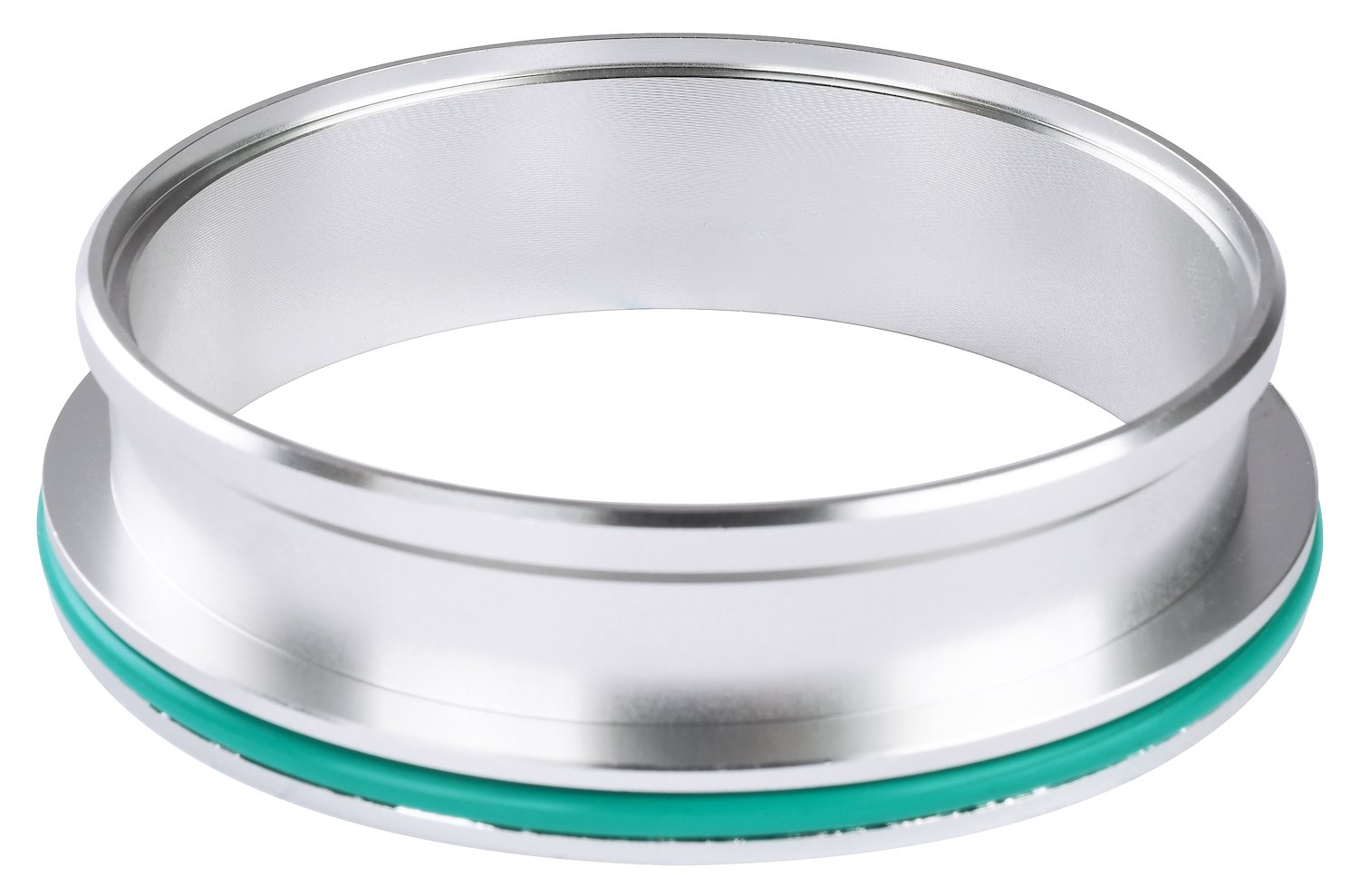

JEGS 109044 is a 3.500 in. replacement billet aluminum 2-piece weld ferrule with o-rings for 555-109004 Heavy-Duty Quick-Release Clamp Assembly.
Specifications:
- 2-Piece Aluminum Weld Ferrule (EA Half):
- Outside Diameter: 3.500 in.
- Inside Diameter: 3.385 in.
- Width: 1.000 in.
- Overall Width: 2.000 in or 1.000 in. (each half)
- Tube Flange Inside Diameter: 3.515 in with .115 in. recess for tube fitment
- O-ring:
- Outside Diameter: 4 in.
- Inside Diameter: 3.730 in.
- Thickness: .135 in.
- O-rings are also available separately. We recommend 555-109034
- 2-Piece Aluminum Weld Ferrule (EA Half):
Flexible Billet Aluminum HD Quick-Release Clamps for High Pressure Air Intake Systems
The modular design of JEGS Heavy-Duty Quick-Release Clamp Assemblies makes them perfect for connecting forced induction and custom air intake system tubing. This style of clamp utilizes a quick-release pin, making disassembly a breeze when it comes to changing broken parts, cleaning, or inspection. With each clamp capable of handling up to 800 psi, and available in a variety of sizes, we are sure to have just the right connector for your next project!
Part TypeTubing Coupler Component
Product LineJEGS Air Intake Heavy-Duty Quick-Release Clamp Assemblies
BrandJEGS
Package Height1.1
Package Width4.1
Package Length7.9
Weight0.35 PG
Part CategoryPerformance Parts
Part FitmentUniversal
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
