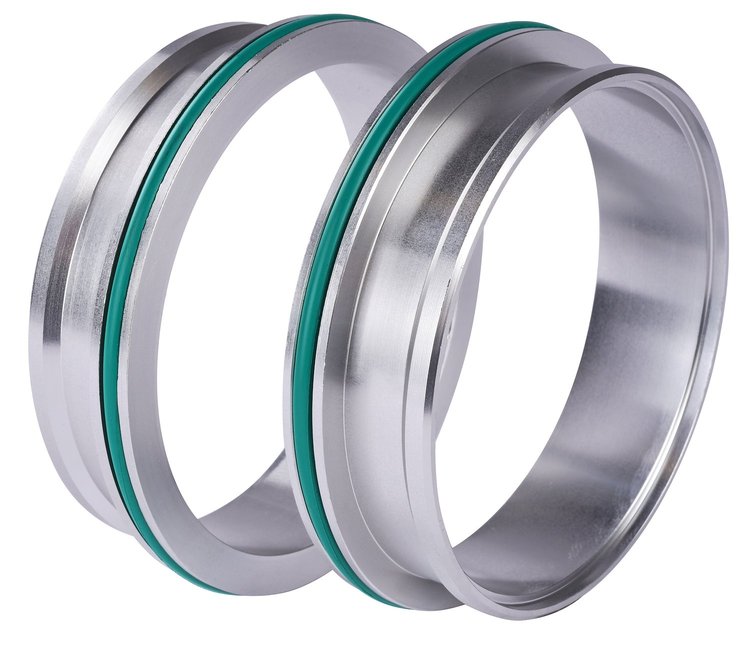

2-Piece Stainless Steel Weld Ferrule [3.500 in.]
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Items You Need
![3-Piece Wire Brush Set [Stainless Steel, Brass Bristles with Plastic Handle]](https://www.jegs.com/images/mini_200/500/555/555-w1149.jpg)
![TIG 200 DC Welder [120/220V]](https://www.jegs.com/images/mini_200/500/555/555-81542.jpg)
![TIG/Arc 200 AC/DC Welder [Single Phase 120V/220V]](https://www.jegs.com/images/mini_200/500/555/555-81563.jpg)
![Welding Cart [36 1/2 in. L x 17 3/8 in. W x 30 1/2 in. H]](https://www.jegs.com/images/mini_200/500/555/555-81639.jpg)
![Welding Cart [30 in. L x 12.5 in. W x 16 in. H]](https://www.jegs.com/images/mini_200/500/555/555-81543.jpg)

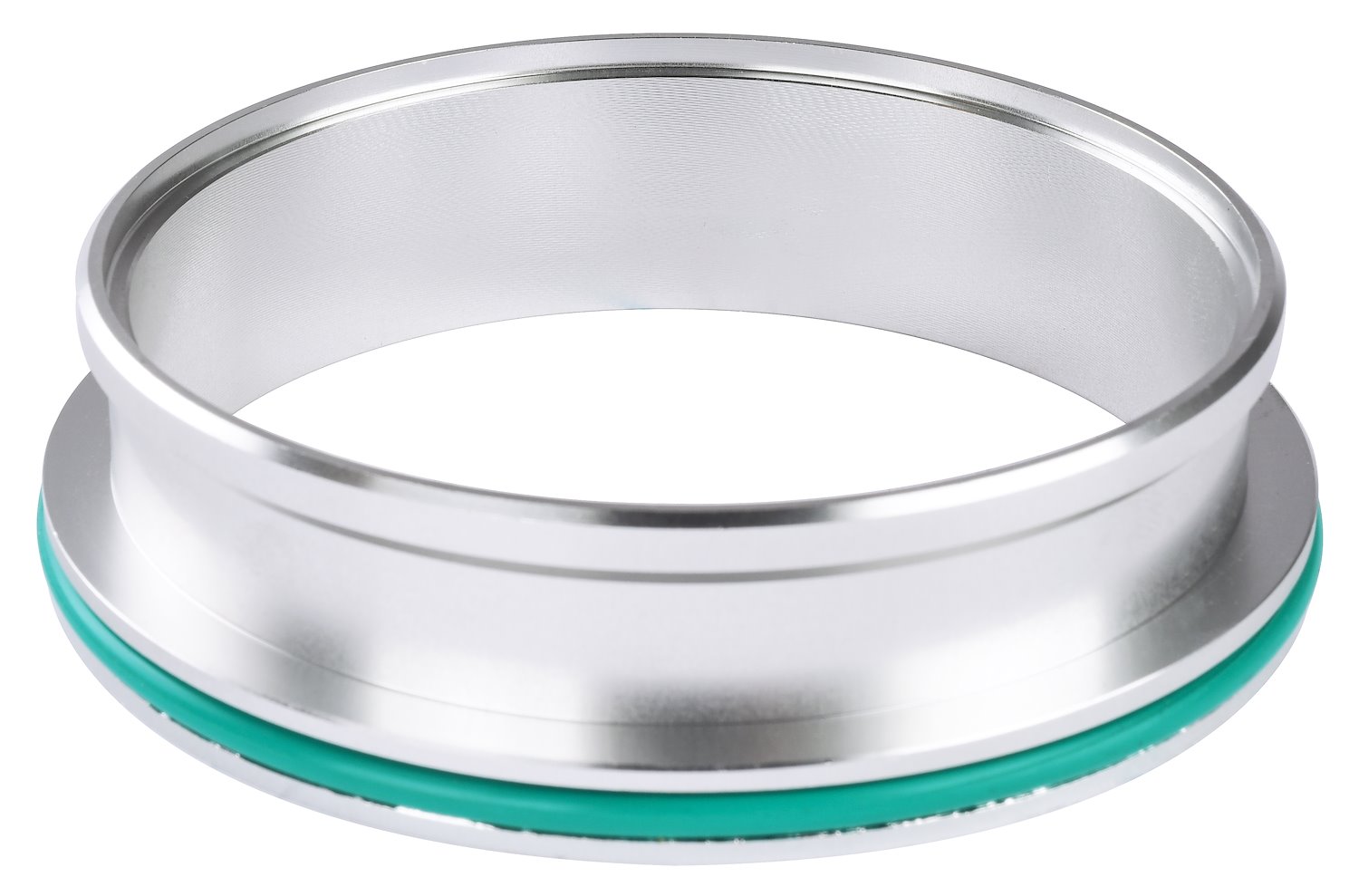

- (1) 2-Piece Stainless Steel Weld Ferrule with O-Ring Seals
When building an air intake system for your ride and looking for a 3.500 in. stainless steel upgraded weld ferrule we recommend this JEGS 109052. It's designed to be used in place of the aluminum weld ferrule included in JEGS 555-109004 Heavy-Duty Quick-Release Clamp Assembly. You can also order ala-carte and build your own clamp assembly by purchasing all the additional components separately below.
- 3.500 in. Heavy-Duty Quick Release Clamp 555-109014
- 3.500 in. Union Sleeve 555-109024
Weld Ferrule Specifications:
- 2-Piece Stainless Steel Weld Ferrule (EA Half):
- Outside Diameter: 3.500 in.
- Inside Diameter: 3.385 in.
- Width: 1.000 in.
- Overall Width: 2.000 in or 1.000 in. (each half)
- Tube Flange Inside Diameter: 3.515 in with .115 in. recess for tube fitment
- O-ring:
- Outside Diameter: 4 in.
- Inside Diameter: 3.730 in.
- Thickness: .135 in.
Flexible Billet Aluminum HD Quick-Release Clamps for High Pressure Air Intake Systems
The modular design of JEGS Heavy-Duty Quick-Release Clamp Assemblies makes them perfect for connecting forced induction and custom air intake system tubing. This style of clamp utilizes a quick-release pin, making disassembly a breeze when it comes to changing broken parts, cleaning, or inspection. With each clamp capable of handling up to 800 psi, and available in a variety of sizes, we are sure to have just the right connector for your next project!
