Floatless Fuel Sending Unit [0-90 Ohms]

Name: Floatless Fuel Sending Unit [0-90 Ohms]
Brand: JEGS
SKU: 555-15650
Price: 108.99 USD
Availability: InStock

^$108⁹⁹$119.99You Save$11.00

3 left in stock

Ships Today

Lowest Price Guarantee

0-90 Ohms Fuel Sending Unit

Floatless Fuel Sending Unit

0-90 Ohms (Most 1965-1996 GM Applications)

7 in. Tube Length

1 3/8 (.375) in. Tall Mounting Flange

Standard SAE 5-Bolt (2 1/8 in.) Mounting Pattern

Sold Individually

How to Measure Ohms Resistance

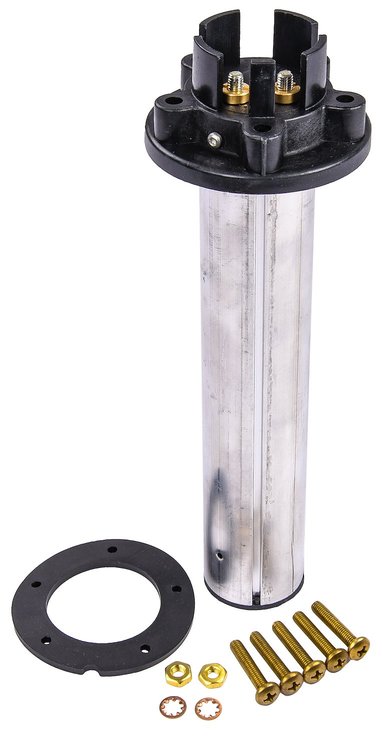

Includes:

(1) Floatless Fuel Sending Unit
(1) SAE 5-Bolt Mounting Gasket
(5) #10-32 x 1 in. Thread Machine Screws
(2) 3/8 Hex Head #10-32 Thread Nuts
(2) #10 (3/16 in) Lock Washers

JEGS 15650 Features:

Compatible with gasoline and diesel fuels, will not support ethanol/E85
Extruded aluminum housing provides enhanced protection for the float and PC board
No float arm makes this sending unit ideal for tight spaces or tanks with baffles
Each sending unit only contains one moving part further increasing longevity
Reduces "slosh" in fuel tank making them ideal for high performance automotive and heavy-duty applications

Note: These sending units are to be within one-inch of the fuel tank’s total depth. For example, a tank that is 10.5-inches deep would use a 10-inch tube style sending unit. The extra half-inch allows for a little reserve fuel as an added benefit.

Tubular Fuel Tank Senders

JEGS Tube-style fuel sending units are ideal for applications where conventional float arm type units will not fit due to clearance issues. Float-less senders are less susceptible to erratic fuel level readings that are due to slosh in a tank where baffles are not present. Each device requires no setup or calibration and has a standard aftermarket five-hole pattern (2 1/8 in.) mounting bracket that must be mounted perpendicular to the tank (vertically), with the ground at the top of the tank.

Part TypeFuel Tank Sending Unit

Product LineJEGS Floatless Fuel Tank Sending Units

BrandJEGS

Package Height3.25

Package Width3.25

Package Length12.5

Weight0.67 PG

Part CategoryPerformance Parts

Part FitmentUniversal

Package Qty1

Package TypeEA

No Questions
