![Painted Shorty Headers for 1978-1991 GM Passenger Cars [Small Block Chevy 305-350 ci]](https://www.jegs.com/images/mini_750/500/555/555-30053.jpg)
JEGSPART NUMBER: 555-30053

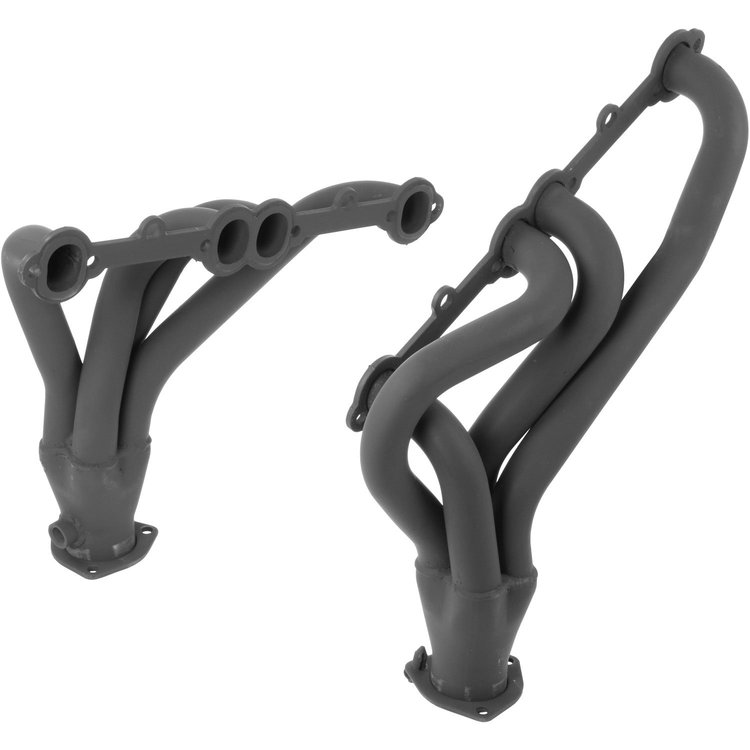

Painted Shorty Headers for 1978-1991 GM Passenger Cars [Small Block Chevy 305-350 ci]
$18399$202.99You Save$19.00
More than 10 availableSmall Block Chevy
Painted Shorty HeadersSmall Block Chevy 305-350 ci 1978-1987 Chevy Malibu/Oldsmobile Cutlass/Buick Regal 1982-1990 Pontiac Firebird 1982-1991 Chevy Camaro 1.500 in. O.D. Primary Tubes 2.500 in. O.D. Collector 2.500 in. O.D. Reducer
JEGS 555-30053 Painted Shorty Headers Features:
- Requires head pipe fabrication to Y-pipe
- Includes O2 fittings
- Will not fit with A.I.R. pump
- Will not fit angle plug heads
- Will not fit vehicles originally equipped with any engine other than Small Block Chevy
- Works with A/C
| Automatic | Standard | ||
| Column | Floor | Column | Floor |
| No | Yes | No | Yes |
Special Exhaust Headers Notes:
- Due to variations in engine and vehicle configurations, installation of aftermarket headers may require minor modifications
- Common adjustments include power-steering or A/C bracket relocation, dipstick tube modification, or clearance for steering shaft and clutch linkage
- Inspect for worn or collapsed motor mounts, and verify clearance for spark plugs, wires, brake lines, and transmission or fuel lines
- Always test-fit headers before painting or coating to ensure proper alignment and clearance
- Re-torque after initial heat cycles
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeHeader
BrandJEGS
Package Height10.9
Package Width16.7
Package Length23.4
Weight18.98 PG
Part CategoryPerformance Parts
Header Flange Thickness0.313 in (7.95 mm)
Header FinishBlack
Tube DirectionDown Swept
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header MaterialSteel

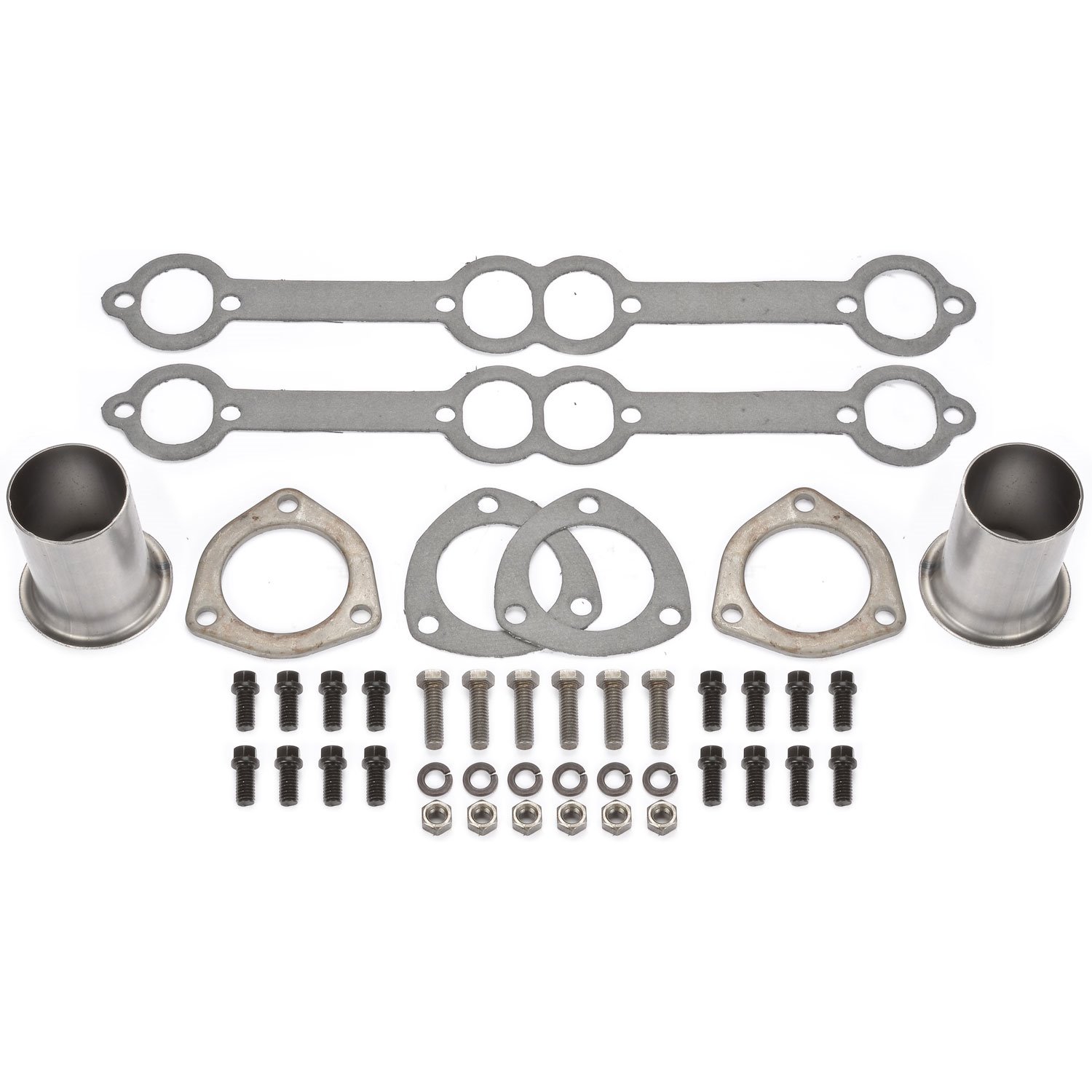

Gaskets IncludedYes
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
TunedNo
Collector Diameter2.5 in (63.5 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
Primary Tube Gauge16-gauge
Header StyleShorty
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.5 in (38.1 mm)
Vendor Part Number30053JEGS
Package Qty1
Package TypeEA
No Questions
No Reviews
