JEGSPART NUMBER: 555-30063

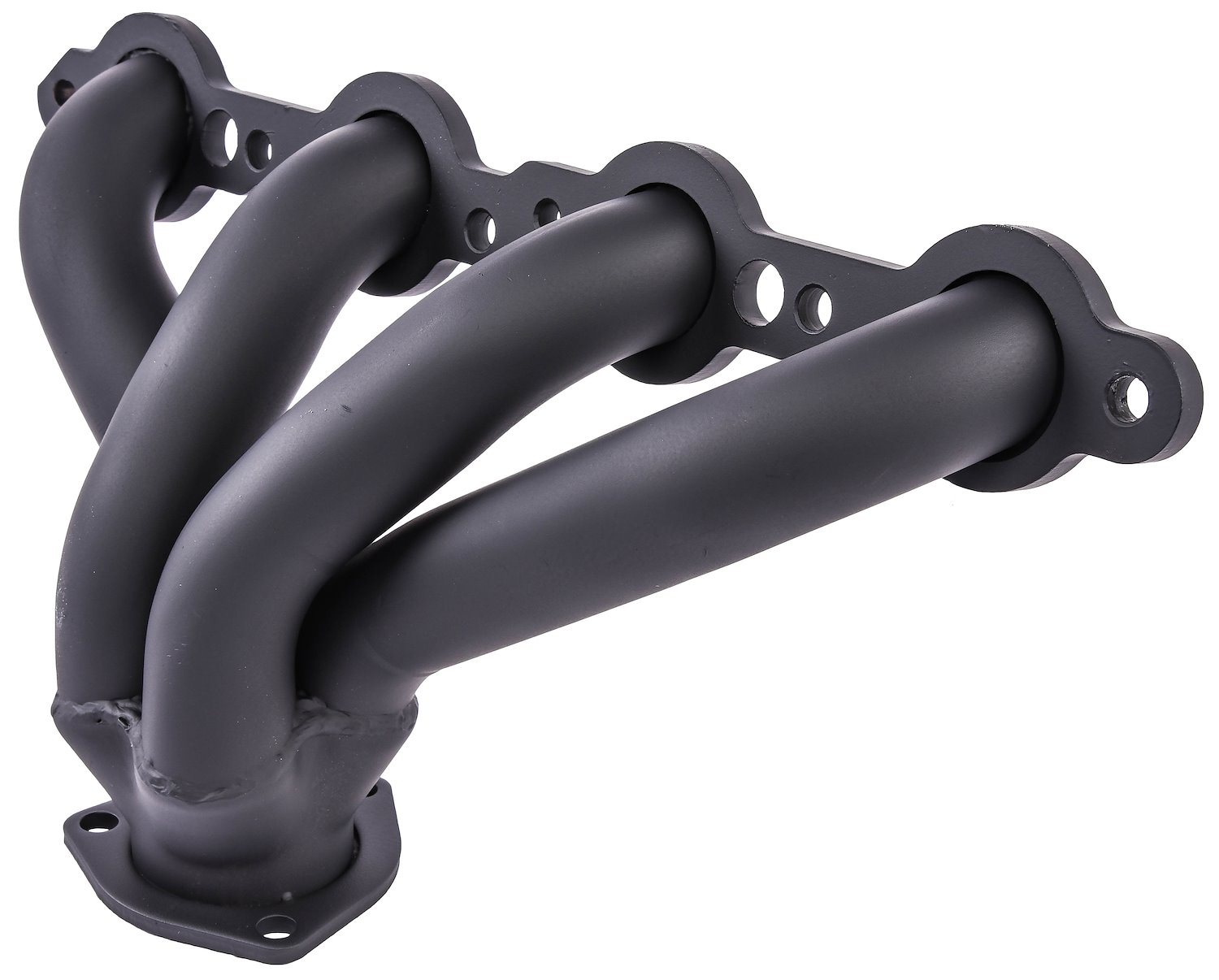

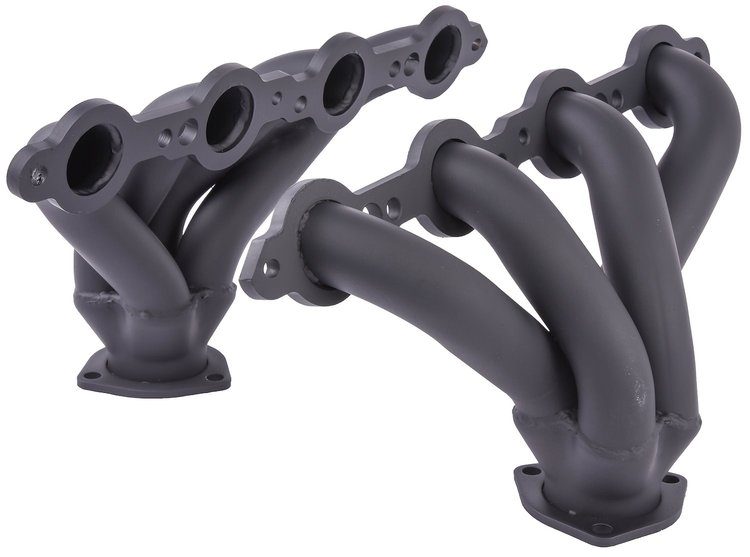

GM LS1 Block Hugger Headers
$29899$318.99You Save$20.00
7 left in stockLS
GM LS1 Block Hugger Headers1 1/2 in. Primary Tubes 2 1/2 in. Collector to 2 in. Reducers Steel Black Painted Finish
LS1 Block Hugger Headers Include:
- Reducers
- Gaskets
- Hardware
Special Exhaust Headers Notes:
- Due to variations in engine and vehicle configurations, installation of aftermarket headers may require minor modifications
- Common adjustments include power-steering or A/C bracket relocation, dipstick tube modification, or clearance for steering shaft and clutch linkage
- Inspect for worn or collapsed motor mounts, and verify clearance for spark plugs, wires, brake lines, and transmission or fuel lines
- Always test-fit headers before painting or coating to ensure proper alignment and clearance
- Re-torque after initial heat cycles
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeHeader
BrandJEGS
Package Height10.9
Package Width13.4
Package Length19.1
Weight15.4 PG
Part CategoryPerformance Parts
Coating/FinishPainted
Header Flange Thickness0.313 in (7.95 mm)
Header FinishBlack
Tube DirectionDown Swept
QuantitySold as a pair
Engine Make/SizeGM LS1
Transmission Mount IncludedNo
Header MaterialSteel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
TunedNo
Collector Diameter2.5 in (63.5 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
Primary Tube Gauge16-gauge
Header StyleBlock hugger
Primary Tube Diameter1.5 in (38.1 mm)
Package Qty1
Package TypeEA
