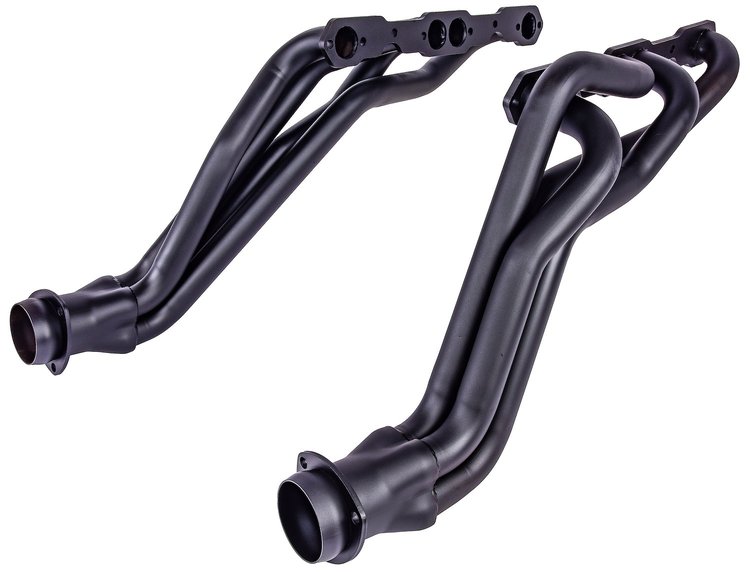

Long Tube Headers for 1988-1995 GM 2WD and 4WD Trucks [Small Block Chevy]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-30066

Long Tube Headers for 1988-1995 GM 2WD and 4WD Trucks [Small Block Chevy]

$11999$285.99You Save$166.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Copper RTV Temperature Resistant up to 700 degrees F

JEGS

Copper RTV Temperature Resistant up to 700 degrees F

Part Number : 555-28038
$699$7.99
You Save$1.00
Penetrating Oil [11 oz. Aerosol Can]

LUCAS OIL

Penetrating Oil [11 oz. Aerosol Can]

Part Number : 639-11043
$878$9.49
You Save$0.71
Brake and Parts Cleaner [14 oz. Aerosol Can]

JEGS

Brake and Parts Cleaner [14 oz. Aerosol Can]

Part Number : 555-72312
$699$7.99
You Save$1.00
Exhaust & Header Wrap 2 in. x 50 ft. x 1/16 in. Thick

JEGS

Exhaust & Header Wrap 2 in. x 50 ft. x 1/16 in. Thick

Part Number : 555-32067
$5099$55.99
You Save$5.00

GM Truck, Small Block Chevy
Long Tube Headers
  • Fits 1988-1995 GM 2WD and 4WD Trucks
  • Small Block Chevy 305-350 ci
  • Round Port
  • 1 5/8 in. Primary Tube Diameter
  • 3 in O.D. Collector
  • 2 1/2 in. O.D. Reducer
  • Black Painted Finish
  • Pair

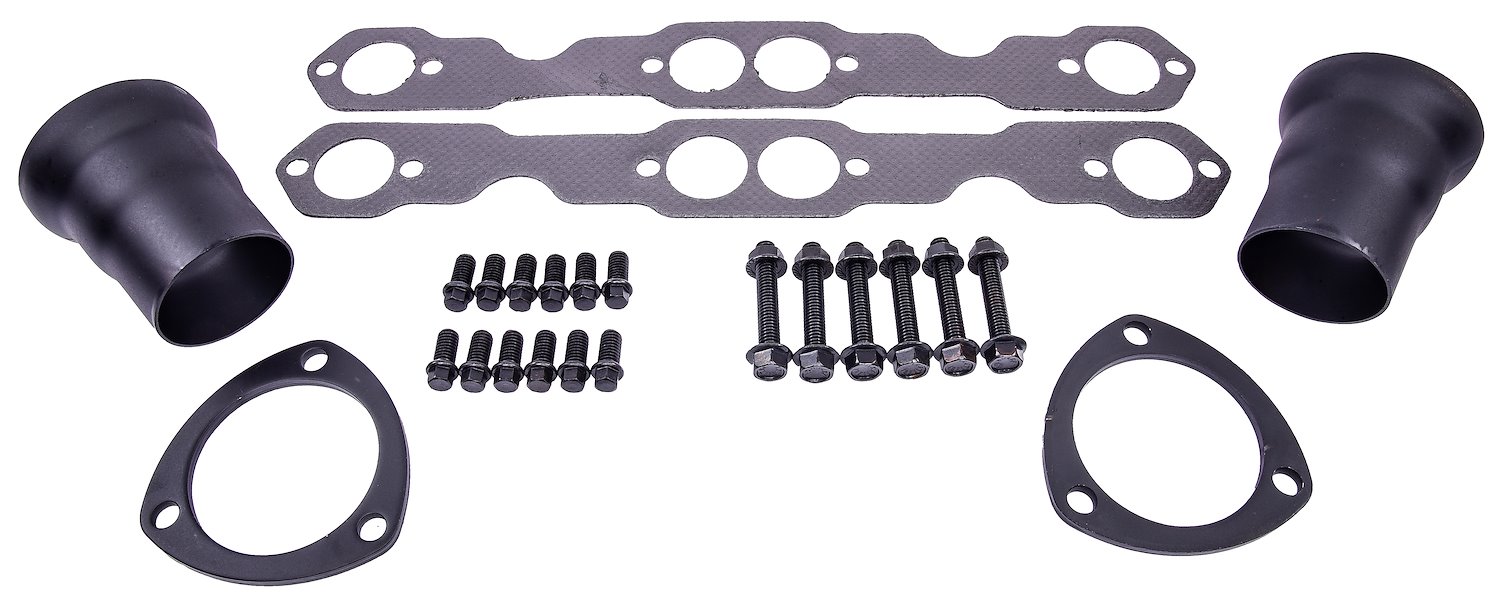

    JEGS 555-30066 Long Tube Headers Include:

    • (1) Pair of Headers
    • (1) Pair of Header Gaskets
    • (12) Header Bolts: 3/8 in.-16 x 3/4 in. L with 3/8 in. Hex Head
    • (1) Pair of Ball & Socket Style Collectors: 3 in. O.D. to 2 1/2 in. O.D. Reducers
    • (6) Collector Bolts: 3/8 in.-16 x 2 1/4 in. L with 9/16 in. Hex Head

    JEGS 555-30066 Long Tube Headers Notes:

    • Will not fit smog injection or injection heads
    • Must modify rotary A/C bracket
    • Fits models with engine mounted offset to the passenger side of the vehicle
    • Will NOT fit vehicles with external clutch slave cylinder
    • Customers must modify stock exhaust to retain catalytic converter(s)
    • Applications with oxygen sensors will require the purchase of reducers with O2 fittings or install O2 bungs
    • Not legal for sale or use in California on pollution-controlled motor vehicles

    JEGS 555-30066 Long Tube Headers Fitment Notes:

    • Air Conditioning: Yes
    • Power Steering: Yes
    • Automatic Transmission Column Shift: Yes
    • Automatic Transmission Floor Shift: Yes
    • Manual Transmission Column Shift: No
    • Manual Transmission Floor Shift: Yes

    Special Exhaust Headers Notes:

    • Due to variations in engine and vehicle configurations, installation of aftermarket headers may require minor modifications
    • Common adjustments include power-steering or A/C bracket relocation, dipstick tube modification, or clearance for steering shaft and clutch linkage
    • Inspect for worn or collapsed motor mounts, and verify clearance for spark plugs, wires, brake lines, and transmission or fuel lines
    • Always test-fit headers before painting or coating to ensure proper alignment and clearance
    • Re-torque after initial heat cycles

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Performance Headers at Budget Prices

      JEGS Tubular Headers offer an immediate increase in performance by eliminating backpressure, improving exhaust flow, and building more horsepower. The consistent tubing diameter contributes to the smooth airflow and higher exhaust velocity.

    Part TypeHeader
    Product LineJEGS Tubular Headers
    BrandJEGS
    Package Height10.0
    Package Width19.0
    Package Length37.0
    Weight31.3 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Gauge16
    Package Qty1
    Package TypeEA
