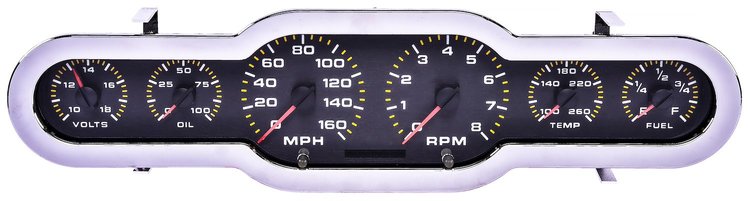

Universal 6-Gauge Analog Cluster Includes:

• Speedometer (0-160 MPH, One Button Calibration) (Recall for 1/4 mile ET & 0-60 ft. Time)
• Speedometer Sending Unit, Ford applications require part# 555-41611
• Tachometer (Reads 0-8,000 RPM) (Compatible with 4, 6 & 8 Cylinder Engines)
• Fuel Gauge (Compatible with Ford, Chrysler, GM, VDO & Stewart Warner Sending Units)
• Voltmeter (10-18 Volts)
• Oil Pressure Gauge (0-100 PSI)
• Oil Pressure Gauge Sending Unit
• Water Temperature Gauge (100-260 Degree)
• Water Temperature Gauge Sending Unit
• Turn Signal Indicators
• High Beam Indicator
• Digital Clock
• Clear Plexiglass Lens

Fuel Gauge OHM Compatibility:

• Ford/Chrysler: 73 Empty -110 Full
• GM: 0 Empty - 90 Full
• VDO: 10 Empty - 180 Full
• Universal / Stewart Warner: 240 Empty - 33 Full
• See Instructions for Fuel Gauge Compatibility Adjustment

Please Note:

Special Tachometer connection adapter is required if this Gauge Cluster is being installed into a vehicle with a GM LS Gen 1,2 or 3 engine. You will need to purchase part# 555-41614. Special Speedometer drive adapter is required when using a Ford transmission. Purchase part# 555-41611.See instructions for more details.
