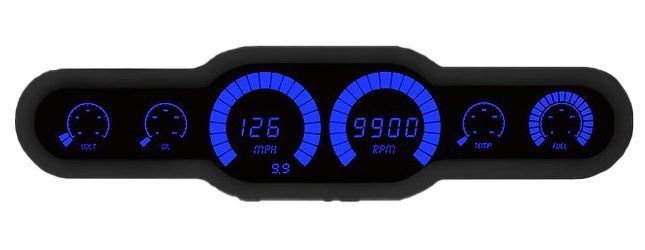

JEGS 41534 6-Gauge LED Bargraph Panel Features:

• Speedometer gauge reads up to 255 MPH, with odometer, trip meter, 0-60 time, 1/4 mile ETA, and high-speed recall
• One-button calibration for tire size, gear ratio, and transmission
• The tachometer reads up to 9,900 RPM in 100 RPM increments, with a peak RPM recall capability
• The water temperature gauge reads 160-240 degrees F
• Oil pressure display reads 0-80 psi
• Voltmeter display reads 12.0-16.0 V
• Fuel level display reads empty to full in 1/4 increments
• The display also includes high-beam and turn signal indicators
• Automatic night dimming
• Works with 4, 6, or 8 cylinder engines

Temperature sending unit S8013 specifications:

• 1/8 in. NPT with 1/2 in. NPT Bushing

Pressure sending unit S8434 specifications:

• 1/8 in. NPT

Mounting kit includes:

• Smoked acrylic lens
• Screen overlay
• (6) Black-oxide Allen screws, nylon washers, nylon spacers & Nylock nuts

Notes:

• Unit dimensions:  15 7/16 in. W x 4 in. H x 3/4 in. D
• Fuel level indicator works with production sending units and after-market sending units (i.e. 73-10, 0-90, 10-180, and 240-33 ohms)
• Can be used with electronic transmissions and cruise control equipped vehicles
