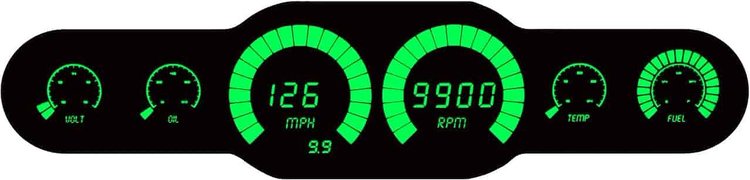

6-Gauge LED Bargraph Panel [Green]

Name: 6-Gauge LED Bargraph Panel [Green]
Brand: JEGS
SKU: 555-41536
Price: 399.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

6-Gauge Bargraph Panels

6-Gauge Panel

LED Bargraph

Green Bars/Numbers

Panel Gauges:

Speedometer
Tachometer
Temperature
Fuel Level
Oil Pressure
Voltmeter

Also Includes:

Temp Sending Unit
Pressure Sending Unit
Mounting Kit

JEGS 41536 6-Gauge LED Bargraph Panel Features:
- Speedometer gauge reads up to 255 MPH, with odometer, trip meter, 0-60 time, 1/4 mile ETA, and high-speed recall
- One-button calibration for tire size, gear ratio, and transmission
- The tachometer reads up to 9,900 RPM in 100 RPM increments, with a peak RPM recall capability
- The water temperature gauge reads 160-240 degrees F
- Oil pressure display reads 0-80 psi
- Voltmeter display reads 12.0-16.0 V
- Fuel level display reads empty to full in 1/4 increments
- The display also includes high-beam and turn signal indicators
- Automatic night dimming
- Works with 4, 6, or 8 cylinder engines
Temperature sending unit S8013 specifications:
- 1/8 in. NPT with 1/2 in. NPT Bushing
Pressure sending unit S8434 specifications:
- 1/8 in. NPT
Mounting kit includes:
- Smoked acrylic lens
- Screen overlay
- (6) Black-oxide Allen screws, nylon washers, nylon spacers & Nylock nuts
Notes:
- Unit dimensions: 15 7/16 in. W x 4 in. H x 3/4 in. D
- Fuel level indicator works with production sending units and after-market sending units (i.e. 73-10, 0-90, 10-180, and 240-33 ohms)
- Can be used with electronic transmissions and cruise control equipped vehicles

Bring Your Dash to Life With New LED Gauges

JEGS LED gauge panels are available in digital or bar graph styles and provide a unique, bright high-tech look. There are various sizes to fit most dash configurations and dial sizes for the all-important speedometer and tachometer gauges. The fuel level gauge is programmable and works with most production and after-market sending units (i.e., 73-10, 0-90, 10-180, and 240-33 ohms). Choose the right panel to match your application based on the sending unit you need. The gauge panels include oil pressure and coolant temperature sending units; some are available without the speedometer sender since they are compatible with most OEM hall effect or magnetic pulse electronic senders generating from 2,000 to 32,000 pulses per mile. If you need a sending unit, choose from GM, Mopar, VW, Ford, or GPS speedometer sending units. The GPS speedometer sender doesn't hook up to the transmission, so it is ideal for vehicles with limited space or where a standard speedometer sensor will not fit.

Part TypeGauge Panel

Product LineJEGS LED Gauge Panels

BrandJEGS

Package Height4 in (101.6 mm)

Package Width8.2

Package Length20.2

Weight2.35 PG

Part CategoryPerformance Parts

MeasurementUS

Liquid-FilledNo

Gauge Face ColorBlack

Gauges IncludedYes
