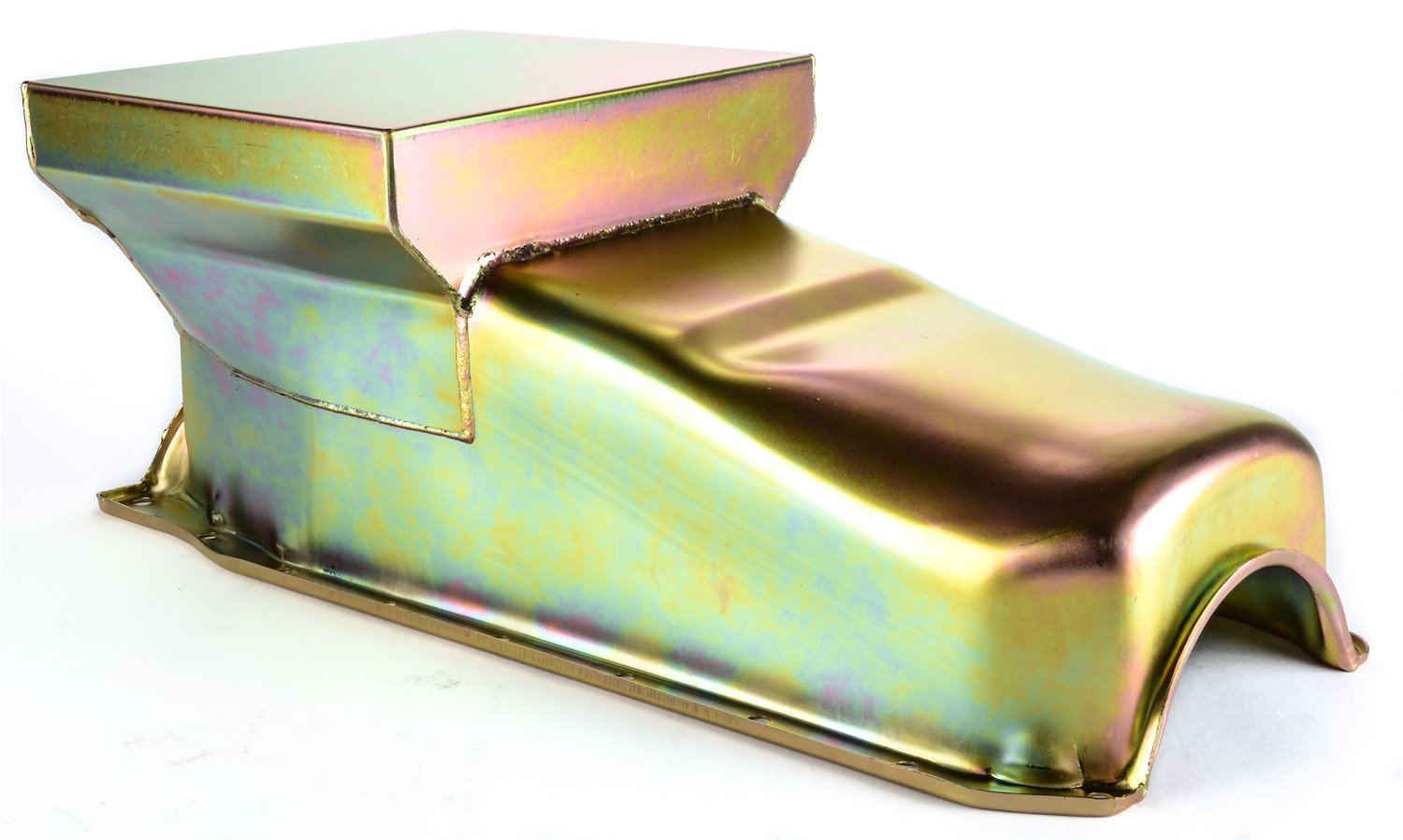

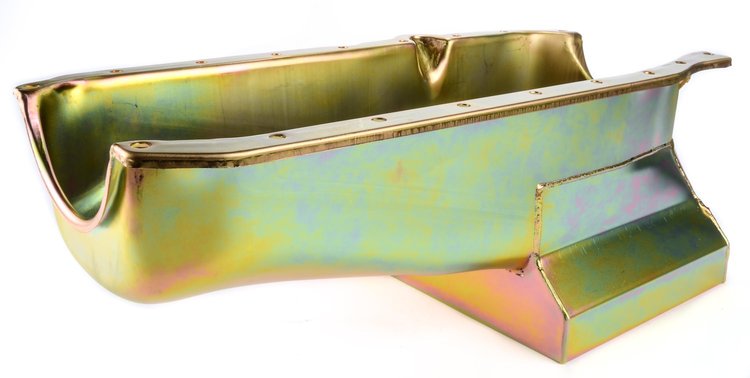

Street & Strip II Oil Pan for 1986-2002 Small Block Chevy (1-Piece Rear Main)
InfoVehicle Info Needed
JEGSPART NUMBER: 555-502012

Street & Strip II Oil Pan for 1986-2002 Small Block Chevy (1-Piece Rear Main)

$16799$184.99You Save$17.00
9 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy
Street & Strip II Oil Pan
  • 1986-2002 Small Block Chevy (1-Piece Rear Main)
  • Fits Most Chassis Except 1962-1967 Chevy II
  • Right-Hand Dipstick
  • 7 Quarts Plus Filter

    JEGS 555-502012 Small Block Chevy Street Strip II Oil Pan Features:

    • Zinc-plated steel
    • Ideal for street or strip applications
    • Low-profile design for more ground clearance
    • Oil control baffles reduce windage for HP gains
    • 7-quart capacity plus filter

      • Low-Profile Oil Pans That Increase Horsepower

      JEGS Street & Strip II Oil Pans have a low profile that provides ground clearance and sufficient oil capacity for most high-performance engines. Oil control baffles help with windage reduction to improve horsepower.

    Part TypeOil Pan
    Product LineJEGS Street & Strip II Oil Pans
    BrandJEGS
    Package Height9.0
    Package Width10.5
    Package Length22.0
    Weight8.415 PG
    Part CategoryPerformance Parts
    Hardware IncludedNo
    Dipstick ProvisionYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    MaterialSteel
    Gaskets IncludedNo
    Oil Pan Depth8.375 in (212.7 mm)
    Rear Main Seal Style1-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Dipstick LocationPassenger side
    Part FitmentSemi Universal
    Kicked OutYes
    FinishGold iridited
    Stroker ClearancedNo
    Package Qty1
    Package TypeEA
