JEGS 555-50288 Rear Sump GM Gen V LT Oil Pan Dimensions

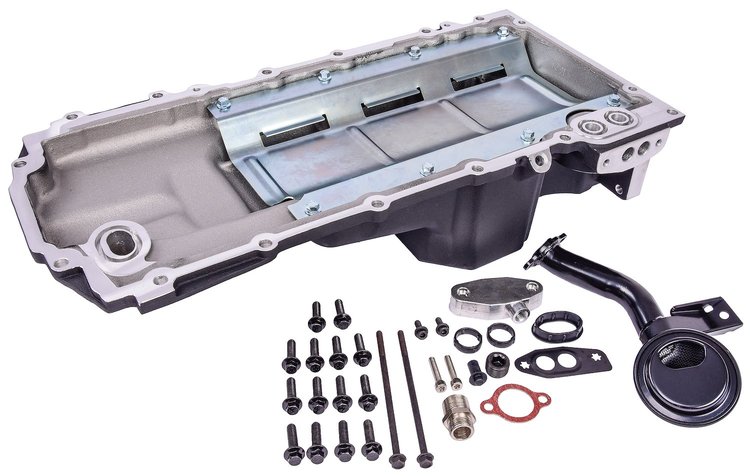

JEGS 50288 Low Profile Retrofit GM LT Rear Sump Oil Pan is designed to allow increased clearance to the ground and chassis. Give your classic muscle car modern power.

JEGS 555-50288 Features:

• Sump Depth: 5.560 in.
• Maximum Stroke: 4 in.
• Drain Plug Thread Size: M12-1.75
• Oil Filter Fitting: M20-1.5 to M22-1.5
• Auxillary Port (with Plug): 1/2 in. NPT
• (2) Oil Filter Passage Seals
• (1) Pickup to Oil Pump Seal
• (1) Rubber Plug
• Requires AC Delco PF64 Oil Filter or Equivalent

JEGS 555-50288 Notes:

• A standard LT Oil Pan dipstick will work with this pan. We recommend Chevrolet Performance 12661062 and 12678823.
• Engine position may need to be adjusted for proper clearance, depending on the application.
• This pan does not have a boss for an oil temperature sensor.

JEGS 555-50288 Mounting Hardware Included:

• Oil Pan:
  • (14) M8-1.25 x 30 mm (1.181 in.) Hex Head Bolts
  • (2) M6-1 x 135 mm (5.315 in.) Hex HeadBolts
• Sump Baffle:
  • (4) 1/4 in.-20 x 0.500 in. UHL Hex Head Bolts
• Windage Tray:
  • (8) 1/4 in.-20 x 0.500 in. UHL Hex Head Bolts
• Pickup Tube:
  • (2) M6-1 x 16 mm (0.630 in.) UHL Allen Head Bolts
  • (1) Gasket
• Oil Cooler Block Plate:
  • (2) M6-1 x 30 mm (1.181 in.) UHL Allen Head Bolts
  • (1) Gasket

Vehicle Fitment:

• 1964-1972 GM A-Body
• 1967-1992 GM F-Body
• 1968-1974 Chevy Nova
• 1968-1974 Buck Apollo
• 1968-1974 Pontiac Ventura
• 1968-1974 Oldsmobile Omega
• 1973-1987 GM Full-Size Truck
• 1978-1987 GM G-Body
