GM
Aluminum Radiator & Fan Combo
  • Select 1965-81 Buick, Chevy, Oldsmobile, & Pontiac Models
  • See Fitment Tab for All Models
  • 12 in. Dual Fans
  • Direct Fitment
  • Improved Cooling Efficency
  • 2-Row 1 1/8 in. High Flow Tubes
  • Semi-Polished Finish

    JEGS 555-511522 Reproduction Aluminum Radiator & Fan Combo Features:

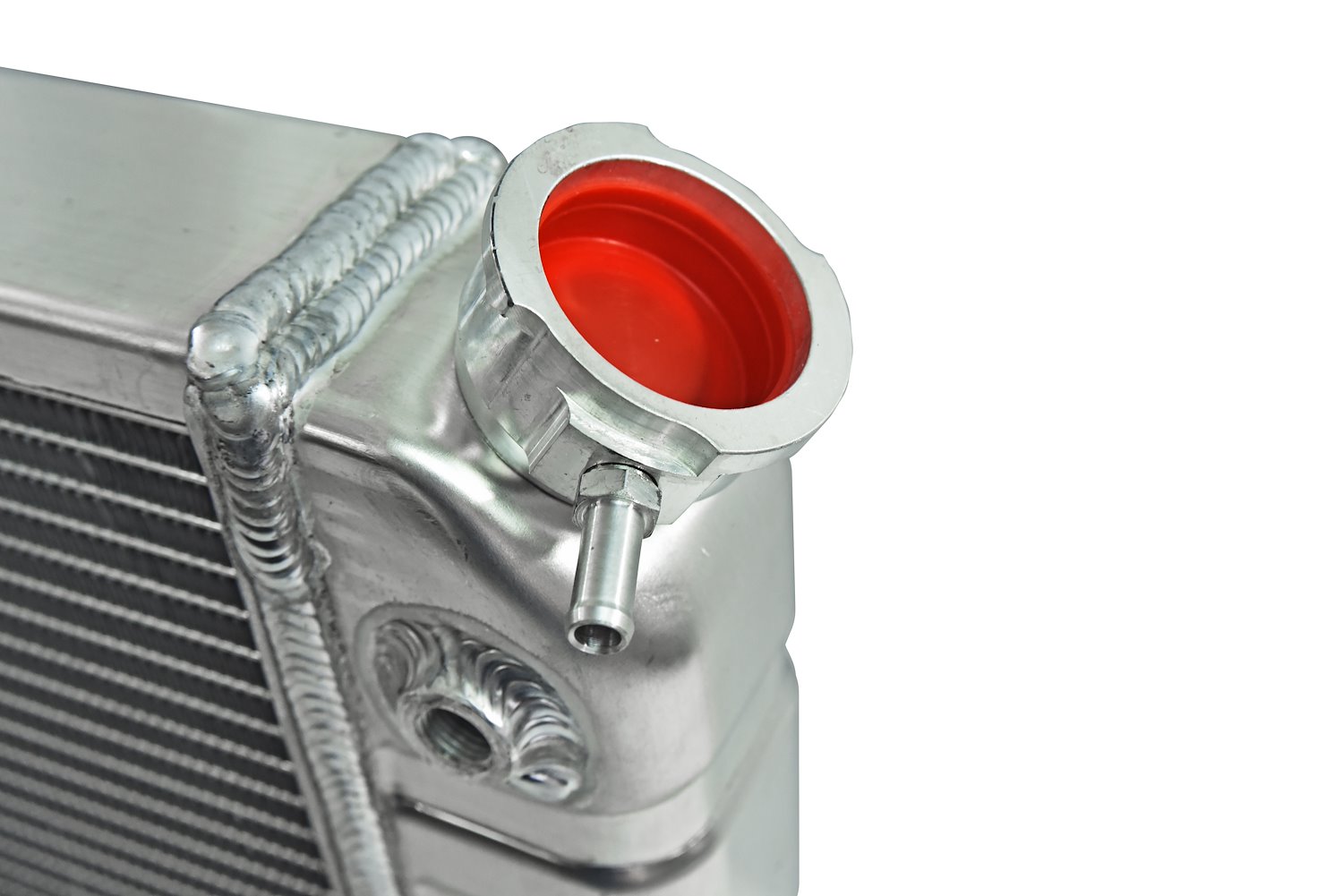

    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Crossflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core: 28 1/4 in. Wide x 18 3/4 in. High x 2 1/2 in. Thick
    • Overall Height: 18 3/4 in.
    • Overall Width: 33 1/2 in.
    • Inlet: 1 1/2 in. Diameter Left/Driver Side Upper
    • Outlet: 1 1/2 in. Diameter Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • 12 in. Dual Fans
    • Semi-Polished Finish That Can Be Easily Painted
  • Performance Cooling for Your Classic Car

    JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
    BrandJEGS
    Package Height7.0
    Package Width22.0
    Package Length35.0
    Weight32.0 PG
    Part CategoryReplacement Parts
    Overall Thickness3.5 in (88.9 mm)
    Overall Height18.75 in (476.3 mm)
    Outlet Size1.500 in.
    Inlet Size1.500 in.
    Fan QuantityDual
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    QuantitySold as a Kit
    Inlet LocationUpper driver side
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height18.75 in (476.25 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Fan Diameter12
    Core Width28.25 in (717.55 mm)
    Row Quantity2
    Outlet LocationLower passenger side
    Overall Width33.5 in (850.9 mm)
    Radiator TypePerformance Replacement
    Radiator FinishSemi-Polished
    Fan IncludedYes
    Transmission CoolerYes
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
