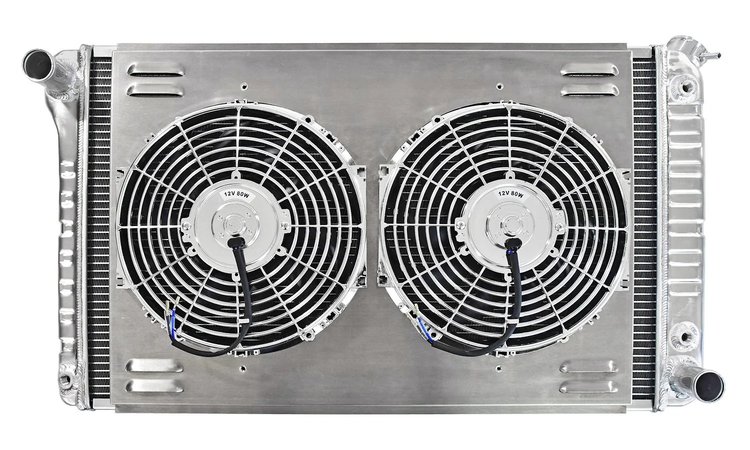

Reproduction Aluminum Radiator with Triple Pass Cooling
  • Fits Select 1965-1981 Buick, Chevy, Oldsmobile, & Pontiac Models
  • See Fitment Tab for All Applications
  • Direct Fit
  • Max. Cooling
  • Aluminum
  • Semi-Polished Finish
  • Includes Dual 12 in.

    JEGS 555-97059 Radiator Features:

    • Fits select 1967-1976 Buick Electra, 1968-1973 Buick GS, 1965-1976 Buick LeSabre, 1967-1976 Buick Riviera, 1968-1972 Buick Skylark
    • Fits select 1971-1976 Chevrolet Full-Size, 1968-1977 Chevrolet Chevelle, 1968-1972 Chevrolet Corvette, 1977-1979 Chevrolet Corvette, 1968-1977 Chevrolet El Camino, 1970-1977 Chevrolet Monte Carlo
    • Fits select 1966-1976 Oldsmobile 442, 1965-1973 Oldsmobile 88 and 98, 1966-1967 Oldsmobile Toronado
    • Fits select 1968-1976 Pontiac Bonneville, 1968-1976 Pontiac Catalina, 1968-1976 Pontiac Grand Prix, 1970-1981 Pontiac Firebird, 1968-1977 Pontiac GTO, LeMans, Tempest
    • Direct replacement bolt-in radiator, "Looks like the original"
    • Baffles are installed in the tanks, creating triple-pass cooling instead of just a single pass. The coolant doesn't mix on one side and make one pass to cool, it makes multiple passes for maximum cooling

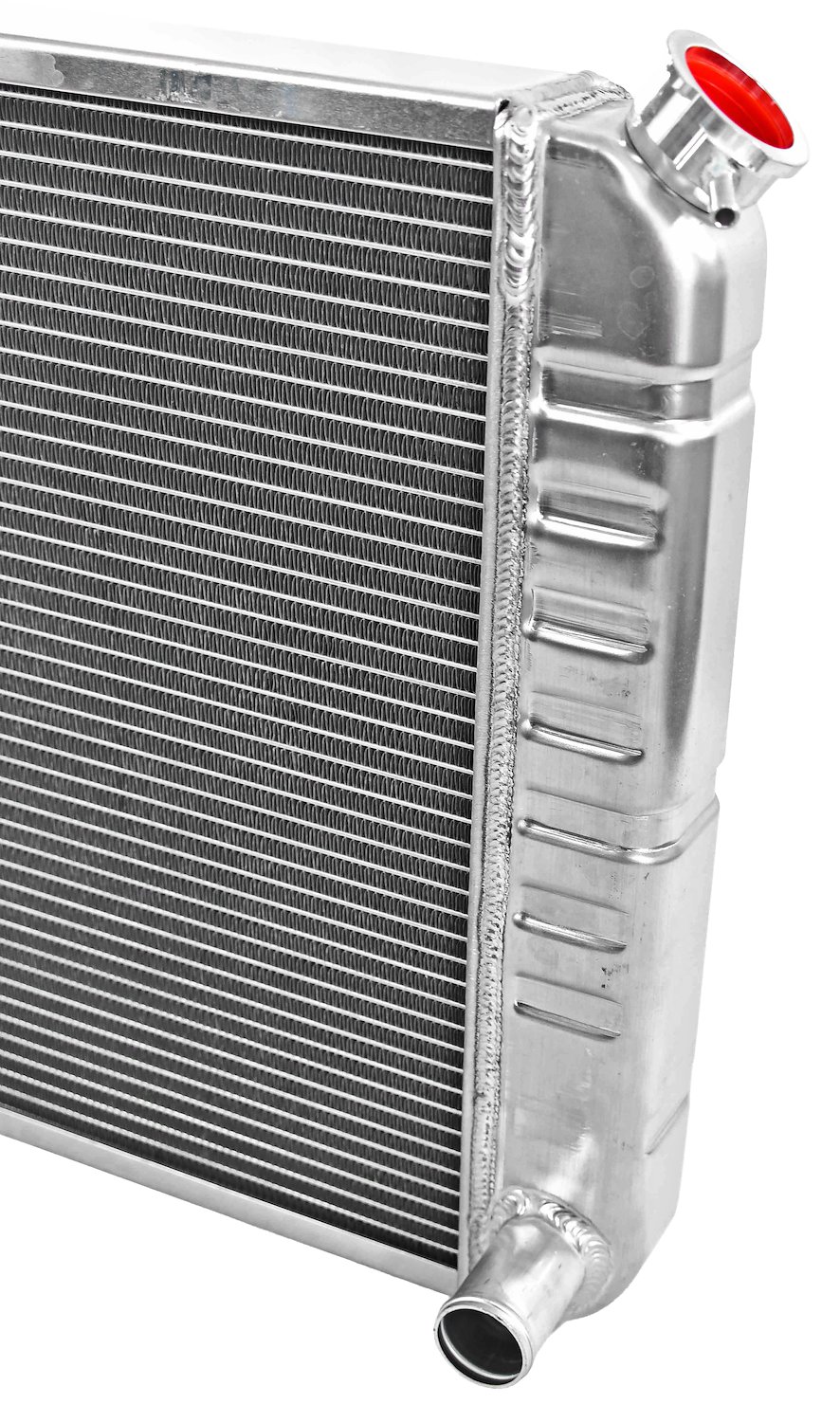

    • Original-style stamped tanks and mounting brackets
    • Made with high-quality 100-percent aluminum and fully TIG-welded
    • Crossflow design
    • Dual 1.13 in. high flow tubes for maximum cooling with 33% more cooling capacity
    • Core dimensions: 28.25 in. width x 18.75 in. height x 2.5 in. thickness
    • Overall dimensions: 33.5 in. width x 18.75 in. height x 3 in. thickness
    • Inlet: 1.5 in. diameter left/driver side upper
    • Outlet: 1.5 in. diameter right/passenger side lower
    • Built-in transmission cooler
    • Semi-polished finish that can be easily painted
    • Comes with dual 12 in. fans
  • Performance Cooling for Your Classic Car

    JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
    BrandJEGS
    Package Height6.7
    Package Width21.5
    Package Length34.9
    Weight27.93 PG
    Part CategoryReplacement Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height18.75 in (476.3 mm)
    Inlet Size1.500 in.
    Radiator Cap IncludedYes
    Inlet LocationUpper driver side
    Core Width28.25 in (717.55 mm)
    Row Quantity2
    Overall Width33.5 in (850.9 mm)
    Radiator FinishSemi-Polished
    Transmission CoolerYes
    Radiator StyleTriple Pass Crossflow
    Outlet Size1.500 in.
    Fan QuantityDual
    Radiator MaterialAluminum
    QuantitySold as a Kit
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height18.75 in (476.25 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Fan Diameter12 in (304.8 mm)
    Outlet LocationLower passenger side
    Radiator TypePerformance Replacement
    Fan IncludedYes
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
