JEGSPART NUMBER: 555-513029K

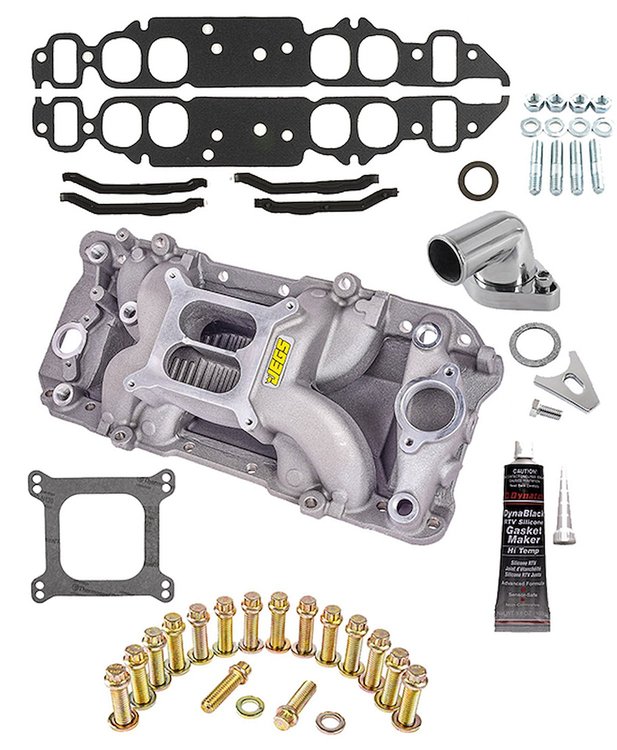

Cool Gap Intake Manifold Kit for Big Block Chevy 396-502
$42972
More than 10 availableBig Block Chevy
Cool Gap Intake Manifold KitBig Block Chevy Includes:
- Cool Gap Intake Manifold
- Intake Gaskets
- Silicone Sealant
- Carb Studs
- Carb Gasket
- Chrome Distributor Hold Down
- 12-Pt Intake Bolt Set
- 90 Degree Swivel Water Neck
JEGS 555-513029K Kit Includes:
- (1) JEGS Cool Gap Intake Manifold for 396-502 Big Block Chevy, Dual Plane [Satin] 555-513029
- (1) JEGS Intake Manifold Gaskets Big Block Chevy 555-210103
- (1) JEGS Black RTV Temperature Resistant up to 625 Degrees F [3.8 oz. Tube] 555-28035
- (1) JEGS Carburetor Stud Kit [1 1/2 in. Long] 555-15840
- (1) JEGS Carburetor Base Gasket Square Flange 555-16100
- (1) JEGS Chrome Distributor Hold-Down for Small Block, Big Block Chevy 555-40691
- (1) JEGS 12-Point Intake Manifold Bolts Zinc Dichromate (Gold) 555-83255
- (1) JEGS Aluminum Thermostat Housing for Small Block & Big Block Chevy 555-51113
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandJEGS
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageStreet/Hi-Performance
Intake MaterialCast Aluminum
Intake Gasket IncludedYes
Intake StyleDual Plane (Air Gap)
EmissionWithout EGR
QuantitySold as a kit
Port Width1.68 in (42.7 mm)
Mounting Hardware IncludedYes
Intake FinishSatin
Carburetor QuantityOne
Engine Make/SizeChevy Big Block
Port Height1.95 in (49.5 mm)
EgrWithout EGR
Rpm Range1500-6500
Part FitmentSemi Universal
Intake Manifold Height5.375 in (136.525 mm)
Package Qty1
Package TypeEA
