Vehicle Info NeededJEGSPART NUMBER: 555-513075K
Dual Plane Intake Manifold Kit for Big Block Chevy 396-502
$54272
6 left in stock
Ships Today
Lowest Price GuaranteeBig Block Chevy Intake Manifolds

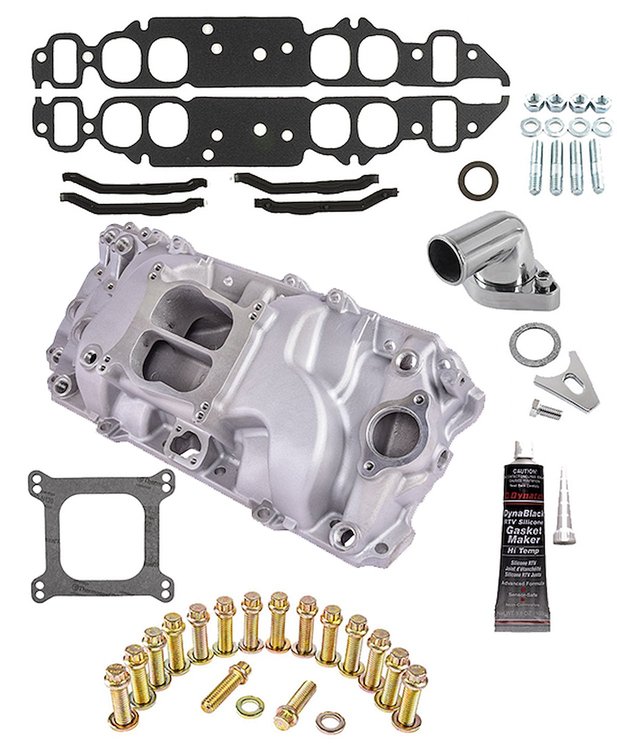

Dual Plane Intake Manifold KitBig Block Chevy Includes:
- High-Rise Intake Manifold
- Intake Gaskets
- Silicone Sealant
- Carb Studs
- Carb Gasket
- Chrome Distributor Hold Down
- 12-Pt Intake Bolts
- 90 Degree Swivel Water Neck
JEGS 555-513075K Kit Includes:
- (1) JEGS Intake Manifold for 396-502 Big Block Chevy, Dual Plane [Oval Port, Satin] 555-513075
- (1) JEGS Intake Manifold Gaskets Big Block Chevy 555-210103
- (1) JEGS Black RTV Temperature Resistant up to 625 Degrees F [3.8 oz. Tube] 555-28035
- (1) JEGS Carburetor Stud Kit [1 1/2 in. Long] 555-15840
- (1) JEGS Carburetor Base Gasket Square Flange 555-16100
- (1) JEGS Chrome Distributor Hold-Down for Small Block, Big Block Chevy 555-40691
- (1) JEGS 12-Point Intake Manifold Bolts Zinc Dichromate (Gold) 555-83255
- (1) JEGS Aluminum Thermostat Housing for Small Block & Big Block Chevy 555-51113
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Dual-Plane Performance Intake
JEGS Champion Series 331 Dual Plane Aluminum Intake Manifolds feature the latest machining techniques to ensure the highest-quality performance. The cast aluminum intake manifold construction yields a lighter, more consistent casting for smoother intake runners, optimal fuel atomization, and improved fuel & air distribution to the cylinders—resulting in more power!
Part TypeIntake Manifold
Product LineJEGS Champion Series 331 Performance Dual Plane Aluminum Intake Manifolds
BrandJEGS
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
Intake MaterialCast Aluminum
Intake Gasket IncludedYes
Supplemental Bosses Cast-InNo
Intake StyleDual plane
Gasket Or Seal IncludedYes
Fuel System TypeCarburetor
EmissionNon-Emissions
QuantitySold as a kit
Port Width1.765 in (44.83 mm)
Mounting Hardware IncludedYes
Cylinder Head TypeOval Port- Standard
Intake FinishSatin
Carburetor QuantityOne 4-BBL
Engine Make/SizeChevy Big Block
Port Height1.9 in (48.3 mm)
Basic Operating Rpm RangeIdle-6,000
EgrWithout EGR
Supplemental Bosses MachinedNo
Rpm RangeIdle-6000
Part FitmentSemi Universal
Manifold TypeHigh Rise
Intake Manifold Height5.56 in (141.224 mm)
Package Qty1
Package TypeEA
