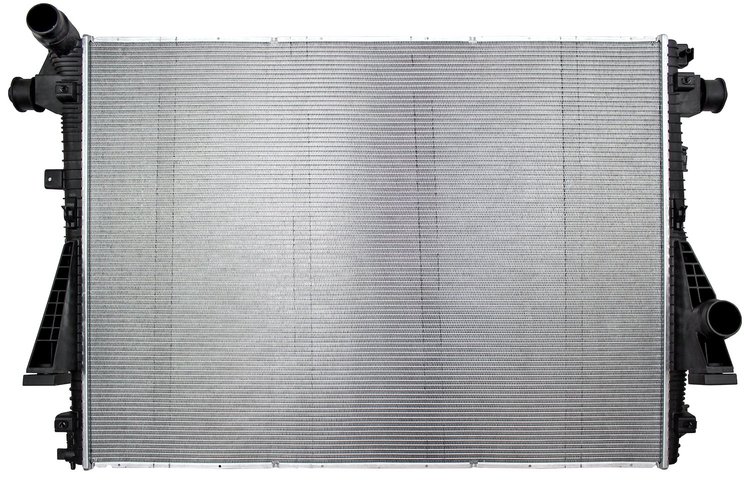

JEGS 555-51944 Ready-Fit Aluminum Radiator Features:

• Fits 2011-2016 Ford F-Series Trucks w/6.7L Powerstroke Diesel
• Primary Radiator, located on the engine side of the radiator support
• The Secondary Radiator for this application is also available. We Recommend JEGS 555-51956
• Internally reinforced end tubes with bridge clips
• Added ribs in weak spots on the tank
• Extra strong integrated mounting points
• Tank-to-header attachment is strengthened by a heavy gauge steel crimp vs aluminum on OEM
• Core has strong, heavy-duty tubes and more fins per inch than OEM
• Replaces Ford OE Part Numbers BC3Z8005E, BC3Z8005K
• Replaces Northern Part Number CR13230

JEGS 555-51944 Ready-Fit Aluminum Radiator Note:

• 2011-2016 Ford Truck Models with Diesel applications have 2 separate cooling systems, each with its own radiator. The JEGS 555-51944 is the main radiator located on the engine side of the radiator support. JEGS 555-51956 is the secondary radiator mounted in front of the radiator support.

JEGS 555-51944 Ready-Fit Aluminum Radiator Measurement Note:

• Measuring a radiator is very simple but, certain rules apply. The tubes of a radiator are always mounted parallel to the fins and perpendicular to the inlet/outlet tanks. The measurement difference between a crossflow and a downflow radiator can be confusing. The first measurement is always the height which is always taken in the same direction as the tubes. (Height Example: A Crossflow Radiator Height would be measured horizontally whereas a Downflow Radiator would be measured Vertically). Second, the width is always measured between the side plates.
