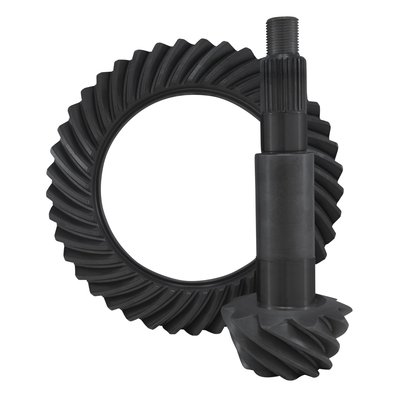

The JEGS 555-600107 ring and pinion is a direct-fit 4.11:1 gear set for the Dana 60 rear axle. The ring and pinion are precision cut and lapped as a matched pair for correct tooth contact, quiet operation, and dependable power transfer through the differential.

JEGS 555-600107 Dana 60 Rear Axle Ring and Pinion Features:

• Fits 1954-2015 Ford
• Fits 1964-2009 Chevrolet
• Fits 1960-2006 Dodge
• Fits 1968-1976 Plymouth
• Fits Dana 60 rear axle
• 4.11:1 gear ratio
• 37 ring gear teeth and 9 pinion gear teeth
• 29-spline pinion
• Standard rotation ring gear
• 9.750 in. ring gear diameter
• 1.626 in. pinion shaft diameter
• Thick gear design
• Precision cut and lapped as a matched set

JEGS 555-600107 Dana 60 Rear Axle Ring and Pinion Notes:

• Requires a 4.11:1 or numerically lower series carrier
• Ring and pinion only; an installation kit is not included
• Crush sleeve, bearings, shims, pinion seal, pinion nut, and ring gear bolts are sold separately
• Professional installation is recommended; correct backlash, pinion depth, and bearing preload must be set during installation
• Follow a proper gear break-in procedure to maximize gear life
