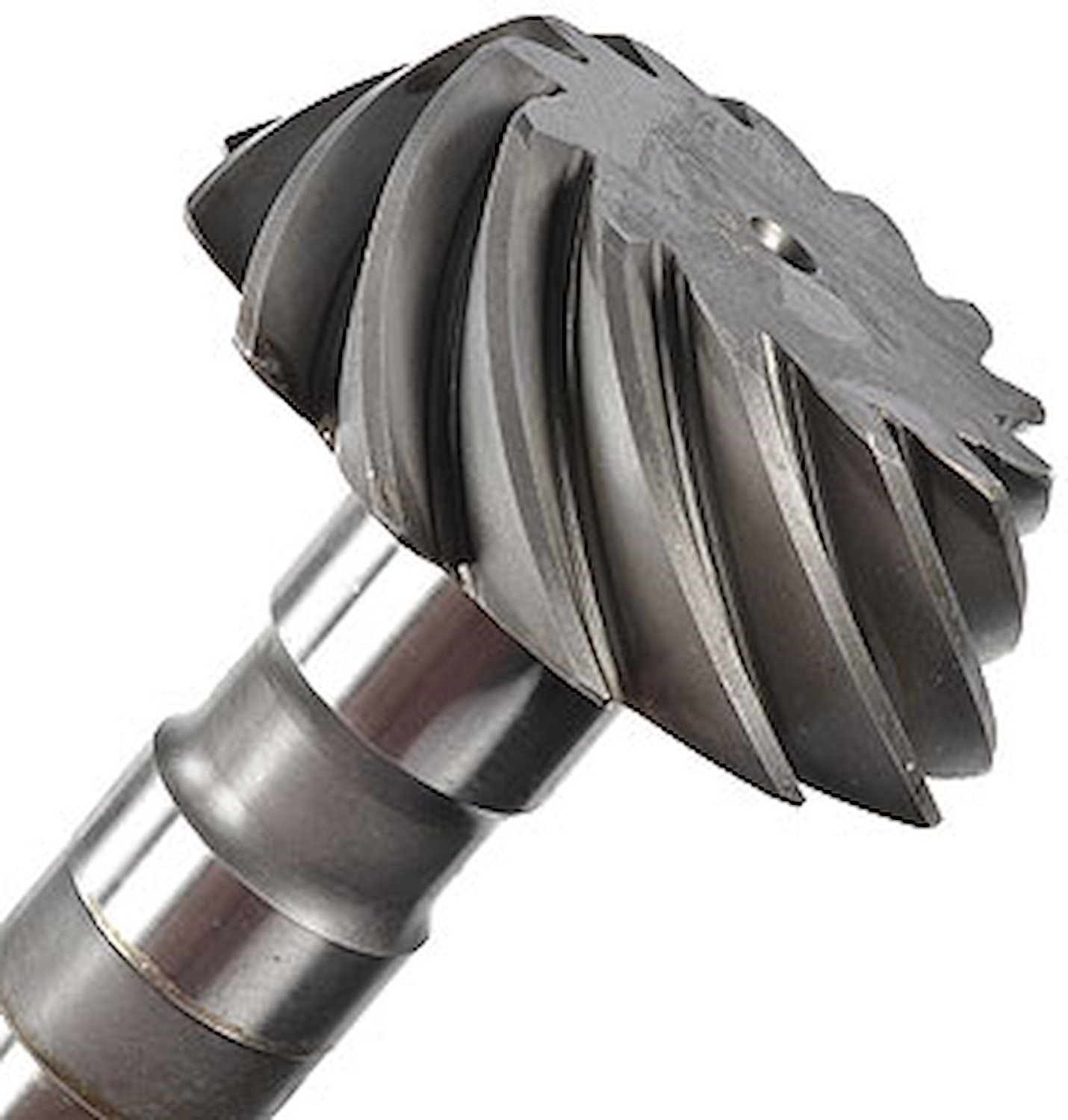

GM 10-Bolt Ring & Pinion 8.5" Diameter Ring Gear (Corporate/New Style)
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60029

GM 10-Bolt Ring & Pinion 8.5" Diameter Ring Gear (Corporate/New Style)

$20199$218.09You Save$16.10
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM 10-Bolt 8.5" (Corporate)
GM 10-Bolt Ring & Pinion
  • 8.5" Diameter Ring Gear (Corporate/New Style)
  • 3.08 Ratio
  • 40-13 Teeth
  • 30 Spline Pinion
    Includes:
  • RTV Silicone
  • Thread Locker Sealant
  • Marking Compound
  • Brush

    • When replacing a stock 2.56 and numerically lower ratio, the carrier must be replaced with a carrier of 2.73 or higher
    • Does not work with pinion-mounted ABS sensor
    • 1.626" Pinion Diameter
    • 30 Spline Pinion
    • 10-Bolt Cover

      Includes:
    • RTV
    • Thread Locker Sealant
    • Marking Compound
    • Application Brush
    • Part TypeRing and Pinion
    BrandJEGS
    Package Height5.2
    Package Width11.2
    Package Length14.9
    Weight17.38 PG
    Part CategoryReplacement Parts
    Pinion Gear Teeth13
    Pinion Shaft Diameter1.626 in (41.3 mm)
    Carrier Series2
    Axle TypeGM 8.5 in.
    Ring Gear Bolts10
    QuantitySold as a set
    Cover Bolts10
    Ring Gear Teeth40
    Part FitmentDirect Fit
    Pinion Spline Count30
    Vendor Part NumberPVTJEGRPGM8.5-308
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
