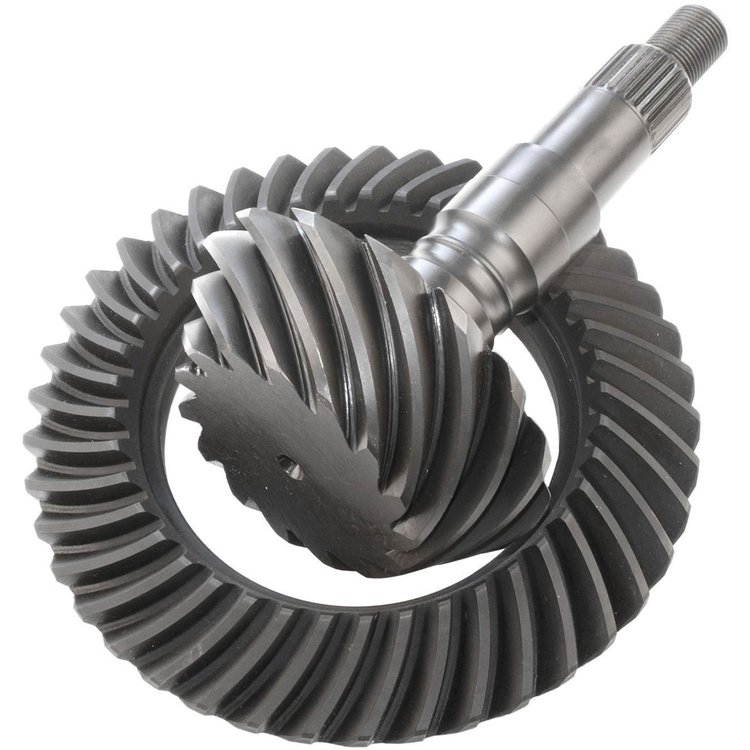

GM Ring & Pinion Gear Set Ratio: 3.08
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-49-0017-1

GM Ring & Pinion Gear Set Ratio: 3.08

$35701
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee
Best Value
Save
$15502
GM 10-Bolt Ring & Pinion 8.5" Diameter Ring Gear (Corporate/New Style)

555-60029

GM 10-Bolt Ring & Pinion 8.5" Diameter Ring Gear (Corporate/New Style)

$20199

GM 8.5"
  • Fits 2.73 and Higher Carrier
  • Pinion Diameter: 1.626"
  • 30 Spline
      • GM Ring & Pinion Gear Set
    • Ratio: 3.08
    • Teeth: 40-13

    • Front: Use Installation Kit #836-83-1020-1
    • Rear: Use Installation Kit #836-83-1021-1
    • 1973-87 Truck: Use Installation Kit #836-83-1021-M or #836-83-1021-TE
    • Does not work with pinion-mounted ABS sensor in 1990-96 Impala/Impala SS/Caprice
    • When replacing a stock 2.56 or lower ratio, the carrier must be replaced with a 2.73 or higher carrier
    Part TypeRing and Pinion
    BrandRICHMOND GEAR
    Package Height5.3
    Package Width11.1
    Package Length15.1
    Weight16.88 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth13
    Ring Gear Tooth Quantity40
    Carrier Series3
    QuantitySold as a set
    Differential Carrier Break2.76 and Higher
    Cover Bolt Quantity10
    Pinion Spline Count30
    Ring Gear Material8620 Steel
    Ring Gear Diameter8.5 in (215.9 mm)
    Ring And Pinion Ratio3.08:1
    Pinion Shaft Diameter1.626 in (41.3 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity13
    Axle TypeGM 8.5 in.
    Ring Gear Bolts10
    Cover Bolts10
    Ring Gear Teeth40
    Ring Gear Bolt Quantity10
    Part FitmentSemi Universal
    Vendor Part Number49-0017-1
    Package Qty1
    Package TypeEA
