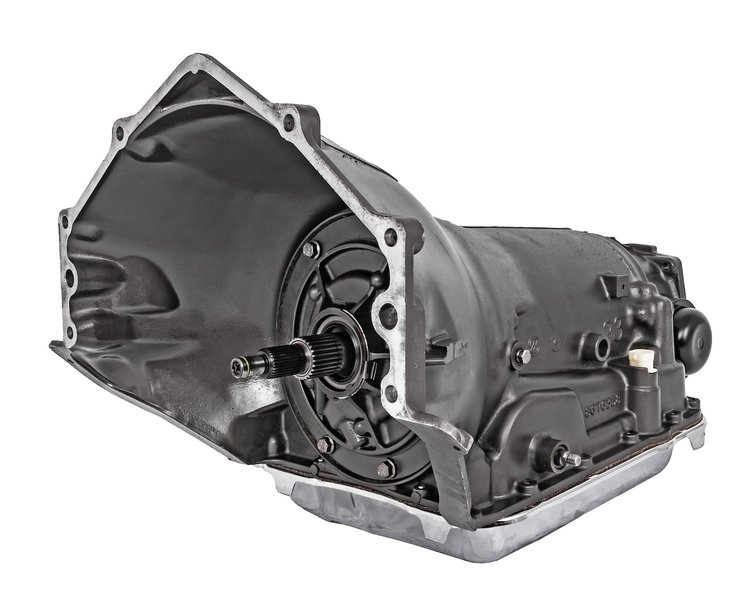

JEGS 555-60309 GM 700R4 Performance Automatic Transmission Features:

• Fits Chevrolet Engines & 4 Wheel Drive applications
• All new frictions & Steels throughout with 3-4 clutch pack
• Complete overhaul kit including seals, gaskets & rings
• New front and rear sprags
• 30-Spline input shaft
• Complete bushing kit including wide direct drum bushing
• Heavy-Duty sun shell
• New washers
• New filter
• Rebuilt front pump with 10-vane rotor, slide kit, and .500 boost valve
• Rebuilt Valve Body with Shift Kit installed
• Chrome Pan with drain plug
• Corvette servo upgrade
• Transfercase Adapter not included
• Speedo Gear Not Included

JEGS 555-60309 GM 700R4 Performance Transmission IMPORTANT Notes:

• This JEGS Performance Transmission has gone through rigorous testing to provide you with the best possible replacement transmission
• Here are a few tips to ensure a successful installation
• Follow the manufacturer's instructions thoroughly
• Before installation, flush any old fluid from your system, including transmission lines, oil cooler, and torque converter to remove any contaminants that could harm your new transmission
• When installing your torque converter, follow the instructions carefully to ensure proper fitment into the transmission input shaft and also attaching to your engine. Specific tolerances are required so that you do not damage the front pump in the transmission or the converter.
• If you have any problem installing this transmission, before returning it please call the JEGS technical support line. Our experts may be able to assist you with the proper installation.
