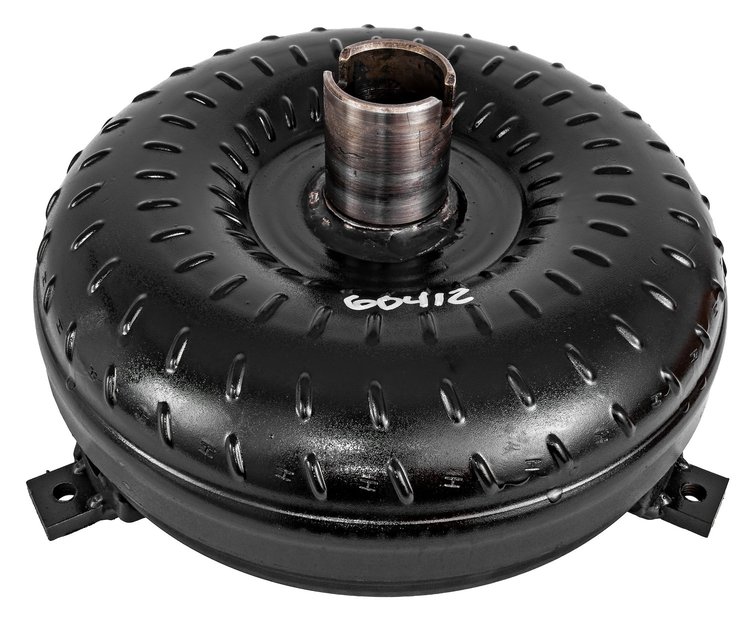

Torque Converter for GM 700R4 [2800-3200 RPM Stall Speed]

Name: Torque Converter for GM 700R4 [2800-3200 RPM Stall Speed]
Brand: JEGS
SKU: 555-60412
Price: 439.99 USD
Availability: InStock

^$439⁹⁹$475.19You Save$35.20

More than 10 available

Ships Today

Lowest Price Guarantee

GM 700R4

Torque Converter

GM 700R4 Lock-up

10 in. Diameter

30-Spline

10.750 in. Bolt Circle

Stall Speed: 2800-3200 RPM

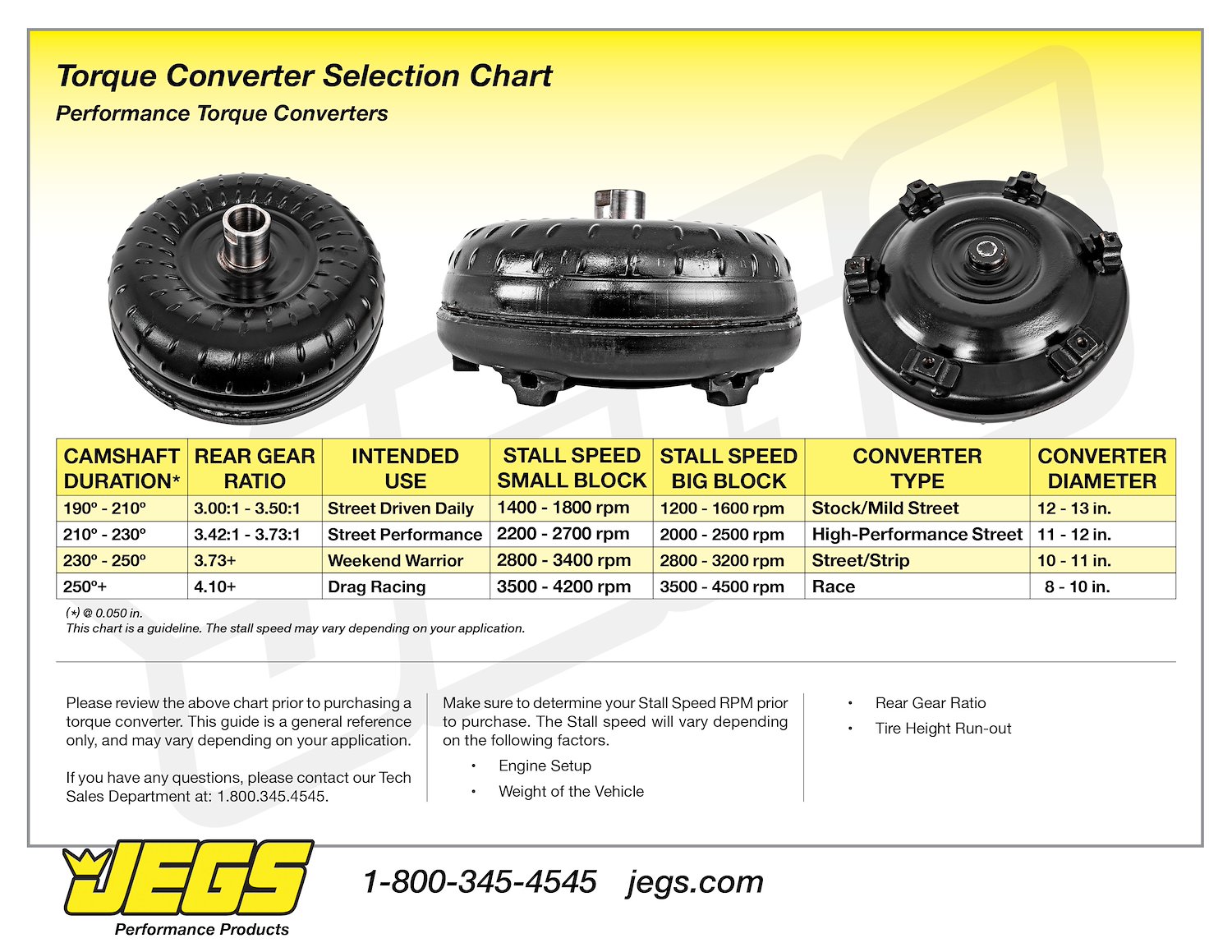

See Torque Converter Selection Chart Above to Help with Choosing the Correct Converter

JEGS 555-60412 Torque Converter Features:

Performance for street and occasional track use for improved launch and acceleration
2800-3200 rpm stall speed to match your engine and camshaft needs
Economically priced for performance on a budget
Specifications: 10.750 in. flexplate bolt pattern, 30 spline, 10 in. diameter, for small block applications without nitrous, turbo, or supercharger
Made in the USA using high-quality materials and assembly

JEGS 555-60412 Torque Converter Notes:

Converter diameter may vary based on Core Availability
Fits transmissions that require lockup converters only
10.750 in. Diameter bolt circle) flexplate required
For Big Block applications, use JEGS XHD Converters
Requires 3/8 in.-16 Grade 8 bolts (Not Included)

Fluid Capacity Chart

High-Performance Street/Strip Torque Converters for Cars and Trucks

JEGS Street/Strip Performance Torque Converters are top-of-the-line products made with high-quality components and assembled using the latest converter technology. Designed to handle up to 500 horsepower, these JEGS Performance Torque Converters are OEM factory-sized, ensuring lower operating temperatures and optimal torque multiplication. They are available for Chrysler/Dodge, Ford, and GM transmissions in various stall ranges to meet your performance requirements. JEGS converters are not designed for nitrous, turbo, or blower applications. JEGS converters are not designed for nitrous, turbo, or blower applications.

JEGS Also Offers These Optional Performance Torque Converters

Part TypeAutomatic Transmission Torque Converter

Product LineJEGS Street/Strip Performance Torque Converters

BrandJEGS

Package Height7.9

Package Width13.1

Package Length13.25

Weight27.0 PG

Part CategoryPerformance Parts

Anti-Ballooning PlateNo

Crank Pilot Diameter1.703 in (43.256 mm)

Stall Speed (Rpm)2800-3200
