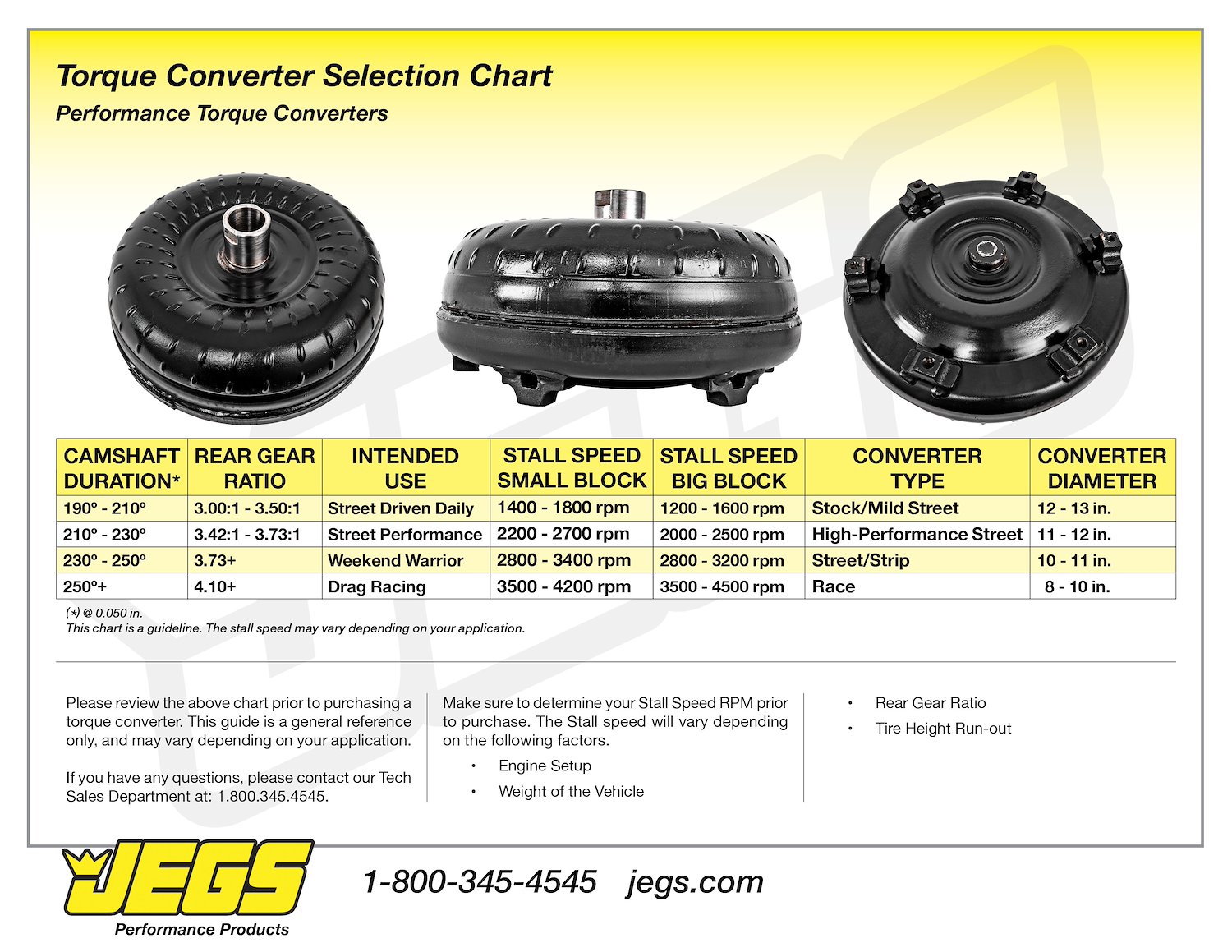

See Torque Converter Selection Chart Above to Help with Choosing the Correct Converter

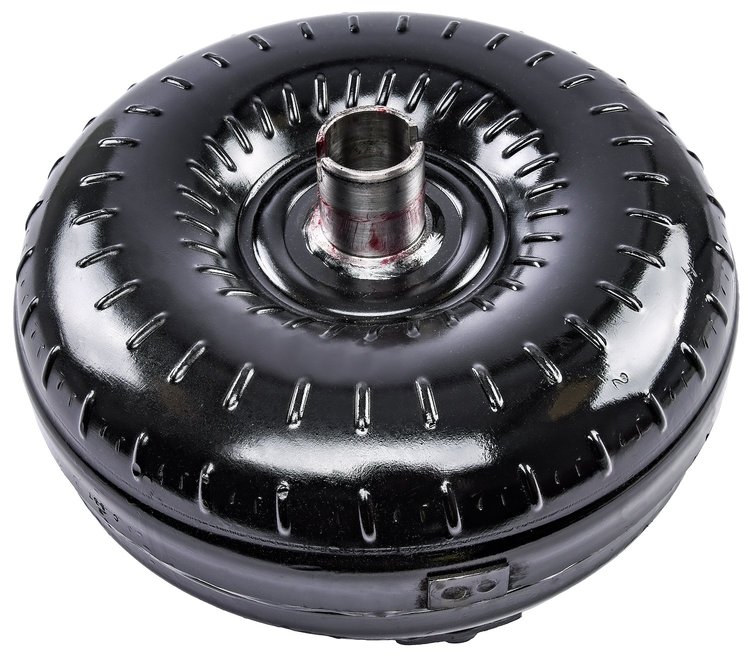

JEGS 555-60411 700-R4 Torque Converter Features:

• Economically priced and quality built unit with the street enthusiast in mind
• Fits GM 700-R4 transmissions
• 2400-2800 rpm stall speed to match your engine and camshaft needs
• Specifications: 12 in. diameter, 30-spline, 10.750 in. bolt circle
• No Anti-Ballon Plate

JEGS 555-60411 700-R4 Torque Converter Notes:

• Converter diameter may vary based on Core Availability
• Fits transmissions that require lockup converters only
• 10.750 in. Diameter bolt circle flexplate required
• For Big Block applications, use JEGS XHD Converters
• Requires 3/8 in.-16 flexplate to torque converter bolts

Transmission and Torque Converter Fluid Capacity Chart

FAQ

What is the factory stall speed for the 700R4 automatic transmission torque converter?

• The diesel converters are 1100-1200 rpm stall. The factory gasoline engine stall converters stall right at 1,400-1,600 rpm. The JEGS 60411 700R4 torque converter comes with a stall speed of 2400-2800 RPM depending on engine specifications. Refer to product specifications for precise details.

What is the best stall speed for a torque converter?

• The ideal stall speed depends on your vehicle's engine specifications and usage. Generally, a higher stall speed enhances performance, while lower speeds are suitable for daily driving. Consider your specific needs when choosing.

What is the typical torque converter stall speed?

• The JEGS 60411 700R4 stall converter offers optimal performance within a specific stall speed range. Refer to the product details for precise information on the typical stall speed for your application.

How do I know what size stall converter I need?

• Determine your vehicle's specifications, power, and usage. Consult the JEGS 60411 product information chart to guide you in selecting the right size 700R4 torque converter for your application.
