![GM Rear Disc Brake Conversion Kit [Staggered Shock Configuration] Black Calipers](https://www.jegs.com/images/mini_750/500/555/555-630116.jpg)
Product Discontinued
JEGSPART NUMBER: 555-630116

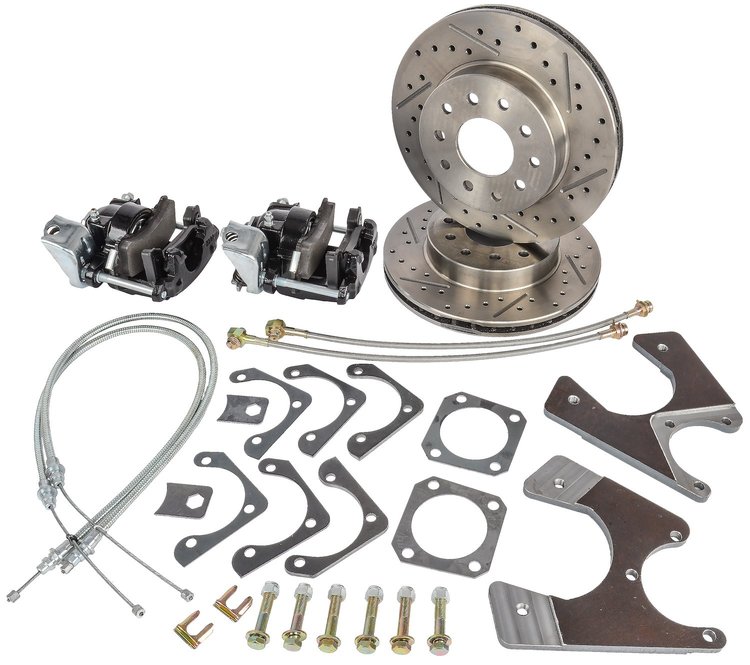

GM Rear Disc Brake Conversion Kit [Staggered Shock Configuration] Black Calipers
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Staggered Shock Configuration
- GM Rear Disc Brake Conversion Kit
- Premium Kit
Includes: - Black Calipers
- Brackets
- Flanges
- E-Brake Cables
- Cross-Drilled & Slotted Rotors
- Stainless Steel Brake Hoses
- Mounting Hardware
Special Note: Staggered shock rear axles require you to mount the driver’s side brake caliper towards the front of the car and the passenger side brake caliper towards the rear of the car.
Note:
- For Leaf Springs with One Shock Forward and One Shock Behind the Rear Axle
- Does Not Fit S-10 Chassis, Truck Frames, or 14 in. Rims
- Maximum Diameter of 6.110" to Fit Rotor Hat
- 0.050 in. x 45 degree Chamfer
- 2.786 in. Max Register Axle
Kit Includes:
- (1 Set) Loaded Black Powder Coated Calipers Left/Right
- (2) Hubless 10 Hole Cross-Drilled & Slotted Rotors
- (2) 10 mm Stainless Steel Brake Hoses
- (2) 10 mm Banjo Bolts
- (4) 10 mm Copper Washers

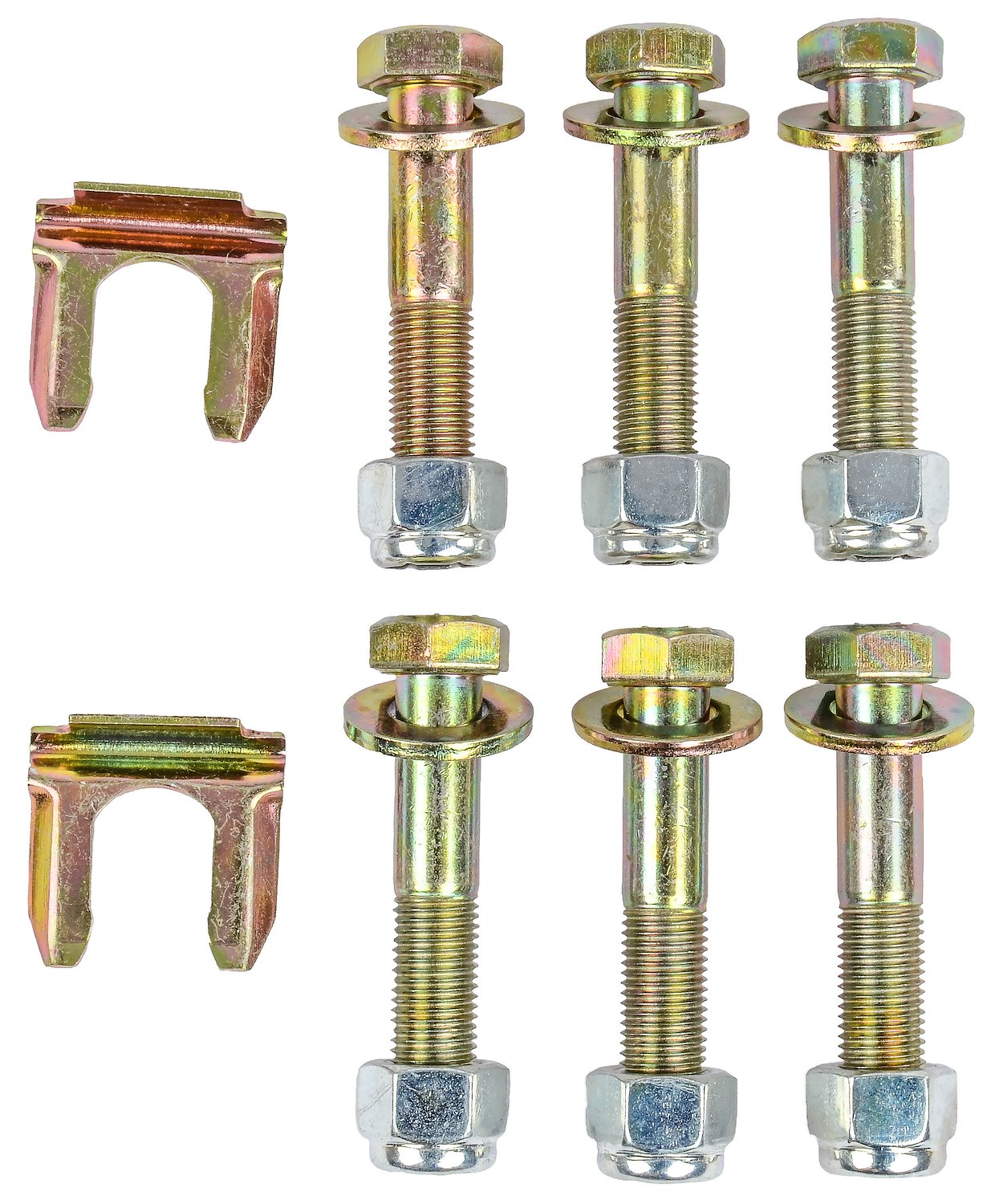

- (6) 3/8 in.-24 x 50 Bolts
- (6) 3/8 in.-24 Lock Nuts
- (6) 20 x 10.5 x 2 Washers
- (2) Brake Hose Clips
- (1 box) Left & Right Caliper Brackets
- (6) Shims
- (2) Brake Hose Mounting Tabs
- (2) Square Backing Plates/Axle Flange
Part TypeDisc Brake Kit
BrandJEGS
Package Height14.0
Package Width15.5
Package Length15.5
Weight51.0 PG
Part CategoryPerformance Parts
Rear Caliper FinishBlack powdercoated
Rear Rotor StyleCross-drilled/Slotted surface
Front Caliper IncludedNo
Brake Booster IncludedNo
Disc Brake Caliper (Rear) Piston QuantityOne
QuantitySold as a kit
Rear Rotor Thickness1 in (25.4 mm)
Minimum Recommended Wheel Diameter15 in (381 mm)
Disc Brake Kit TypeManual
Parking Brake ProvisionYes
Rear Rotor Diameter11.00 in./279.4mm
Front Spindles IncludedNo
Brake Lines IncludedYes
Rear Caliper MaterialCast iron
Master Cylinder IncludedNo
Front Rotor IncludedNo
Rear Rotor ConstructionVented
Rear Rotor IncludedYes
Rear Caliper IncludedYes
Package Qty1
Package TypeEA
