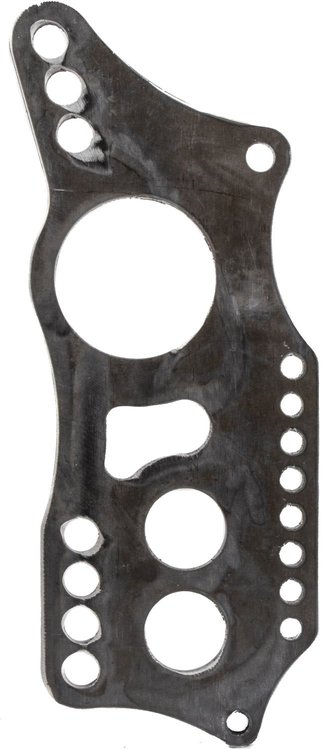

4-Link Axle Bracket [Set of 2]

Name: 4-Link Axle Bracket [Set of 2]
Brand: JEGS
SKU: 555-64656
Price: 46.99 USD
Availability: InStock

^$46⁹⁹$50.39You Save$3.40

More than 10 available

Ships Tomorrow

Lowest Price Guarantee

Brackets

4-Link Axle Bracket

Designed for use on 3 in. dia. Axle Tubes

15 in. L x 5.500 in. W

1/4 (.250) in. Thick Mild Steel

Brackets Include Mounting Holes for Coil-Over Shocks, Rod Ends & Wheelie Bar

Set of 2

Includes mounting holes for coil-over shocks, rod ends & wheelie bar

Axle bracket hole specifications: axle tube: 3.025 i.d. for a 3 in. diameter axle tube, rod end: .635 in. i.d. holes for 5/8 (.625) in. bolts, 7/8 (.875) in. center to center hole spacing,coil-over: .390 in, i.d. holes for 3/8 (.375) in. bolts, 3/4 (.750) in. center to center hole spacing, wheelie bar: upper hole: .525 in, i.d. hole for 1/2 (.500) in. bolt, lower hole: .390 in, i.d. hole for 3/8 (.375) in. bolt

Specifications: 15 “ long x 5.5 “ wide, 1/4 (.250) “ thick mild steel

Designed for use on 3” diameter axle tubes

Made in usa with high quality components and assembly

Axle Bracket Hole Specifications:

Axle Tube: 3.025 I.D. for a 3 in. Diameter Axle Tube
Rod End: .635 in. I.D. Holes for 5/8 (.625) in. Bolts, 7/8 (.875) in. Center to Center Hole Spacing
Coil-Over: .390 in, I.D. Holes for 3/8 (.375) in. Bolts, 3/4 (.750) in. Center to Center Hole Spacing
Wheelie Bar:
- Upper Hole: .525 in, I.D. Hole for 1/2 (.500) in. Bolt
- Lower Hole: .390 in, I.D. Hole for 3/8 (.375) in. Bolt

Any Punishment You Can Dish Out

JEGS Performance 4-Link Suspension Kits created for high-horsepower drag racing cars. Fully adjustable frame brackets, axle brackets, and special threaded tube inserts welded into the chromoly tubing for superior strength that can handle extreme racing conditions. Axle brackets have predrilled mounting holes for Coil-Over Shocks, Wheelie Bars & Anti-Roll Bars. We offer individual mounting brackets and tubing kits for replacements, or you can use them to create your very own 4-link system.

Part Type4-Link Suspension Bracket

Product LineJEGS 4-Link Suspension Kits

BrandJEGS

Package Height2.2

Package Width13.9

Package Length14.0

Weight7.2 PG

Part CategoryPerformance Parts

Part FitmentUniversal

Package Qty1

Package TypeEA
