![High-Strength Bellhousing Bolts Fits GM GEN III/IV LS Engines [M10 x 1.5 w/12-Point Head]](https://www.jegs.com/images/mini_750/500/555/555-83520.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-83520

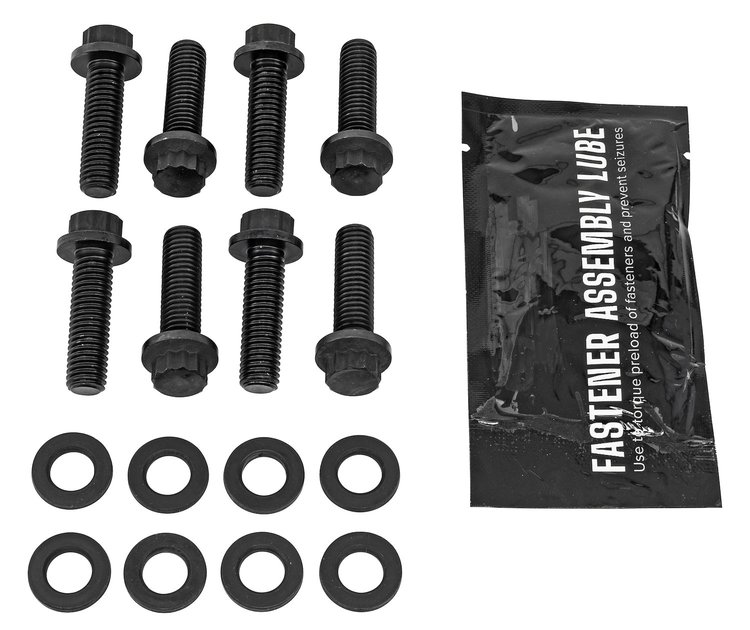

High-Strength Bellhousing Bolts Fits GM GEN III/IV LS Engines [M10 x 1.5 w/12-Point Head]
$2119$22.99You Save$1.80
7 left in stock
Ships Today
Lowest Price GuaranteeHigh-Strength Bellhousing BoltsFits GM GEN III/IV LS Engines For Attaching Bellhousing To Engine Block Threads: M10 x 1.5 Under Head Length (UHL): 1.375 in. 12-Point Head Heat Treated Chromoly Steel Black Oxide Set of 8
JEGS 555-83520 High-Strength Bellhousing Bolts
Upgrade your GM LS V8 stock Bellhousing bolts with high-strength replacements from JEGS. As you increase your engine's power, drivetrain components must be updated accordingly. These bolts are manufactured to the highest standards and provide a direct replacement with greatly increased tensile strength.
JEGS 555-83520 High-Strength Bellhousing Bolts Features:
- Heat Treated 4140 Chromoly Steel
- Tensile Strength: 150,000 PSI
- Fully Threaded Rolled Threads
- (8) M10 x 1.5 Flanged 12-Point Bolts w/12mm Socket Head
- Overall Length: 1.750 in.
- Bolt Head Height: 0.375 in.
Performance Bolts for Your GM LS Bellhousing
JEGS LS Series Bellhousing Bolts are made from high-strength, grade 10.9 steel and features a black oxide finish. The minimum tensile strength is 150,000 psi.
Part TypeBolt
Product LineGM LS Series Bellhousing Bolts
BrandJEGS
Package Height1.3
Package Width3.95
Package Length4.6
Weight0.605 PG
Part CategoryPerformance Parts
Head Drive Type12-Point
Head Diameter12mm
Sae Or MetricMetric
Overall Length1.750 in.
Material4140 Chromoly Steel
Thread SizeM10 x 1.5
Head Tool Size12mm 12-Point
SpecialtyYes
Heat HardenedYes
Part FitmentSemi Universal
FinishBlack Oxide
Grade TypeHigh-Strength
Under Head Length1.375 in.
Package Qty1
Package TypeEA
