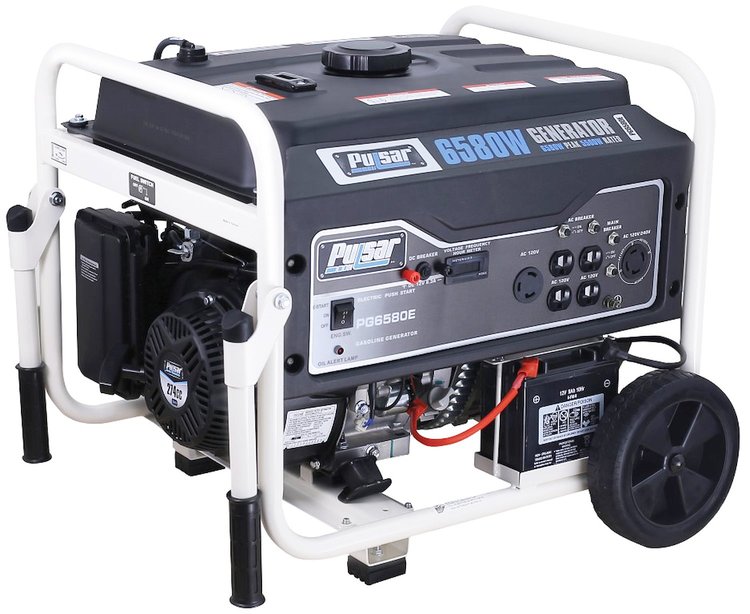

JEGS 86006 6,580 Watt Portable Generator

is an engine-driven, revolving field, alternating current (AC) portable generator that comes equipped with a 274cc, single-cylinder, 4-stroke, OHV engine that produces 6,580 Peak Watts / 4,250 Running Watts of electric power for up to 12 hours on a tank (5.2 gal / 19.69L) of fuel. This rugged and reliable power source can power appliances and numerous other devices and is still small enough to take on hunting, fishing, and camping trips or to your favorite racing event, and can also serve as a backup power source during power outages. Its impact-resistant frame, 5-inch solid rubber never-flat wheels, and dual drop-down handle make it an excellent portable unit for easy handling and storage. This generator can handle both large and small jobs and with proper care and maintenance will provide several years of service. See the attached User Guide for more information regarding the operation of this unit including a wattage reference guide on page 18.

User Guide Click Here

JEGS 86006 6,580 Watt Generator Features:

• ON/OFF Switch
• The full power voltage selector switch allows the generator to operate in either single voltage (120V) or dual voltage (120V/240V) mode
• Digital Voltage, Frequency, and Hour Meter
• Low Oil Indicator
• Low oil Shutdown
• Grounding Connection
• Circuit Protectors
• Electric Push Start (Battery Charger Not Included)
• Pull Cord Recoil Start Backup
• Fuel Tank Vapor Vent
• Fuel Valve (On/Off)
• Choke Lever
• Dual Drop-Down Handle
• Portable
• EPA Approved
• 2 Year Limited Warranty
• 10W-30 Oil Not Included

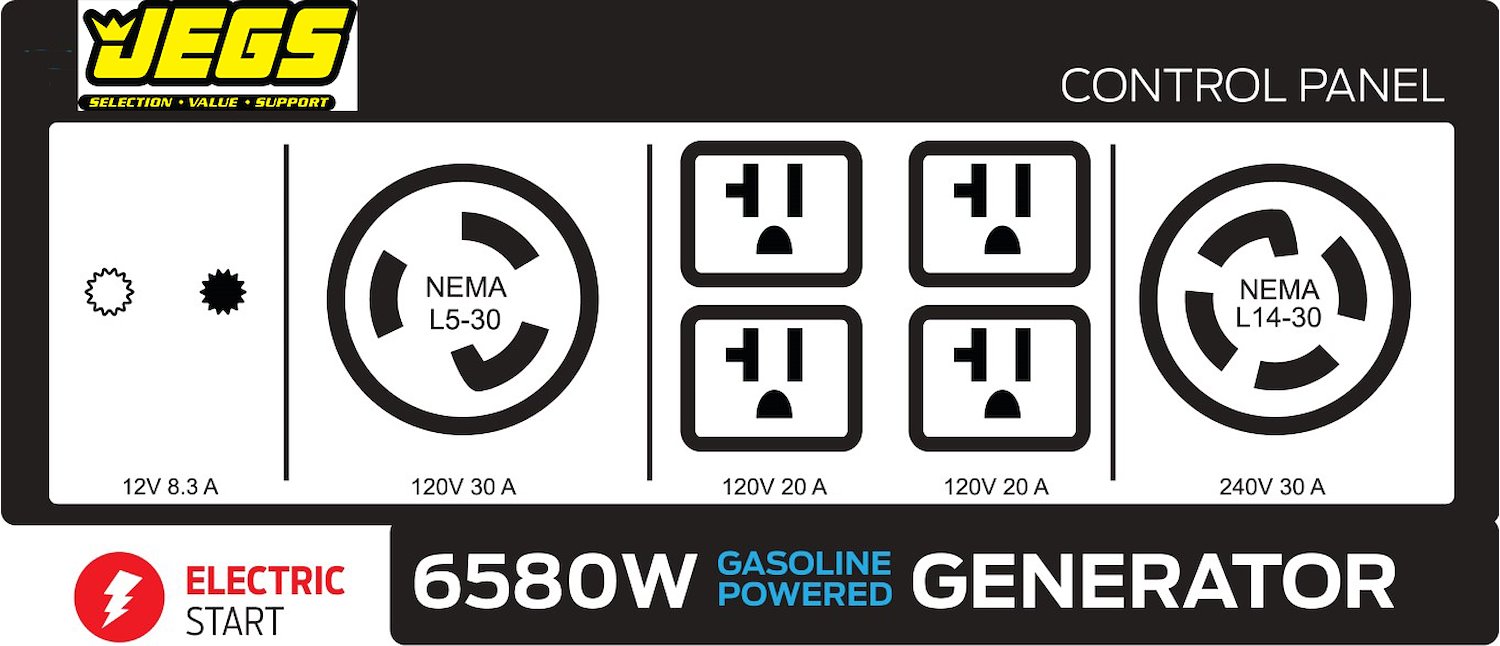

This Generator is Equipped with the Following Receptacles:

• (4) 120V 20 amp Duplex Outlet (NEMA 5-20R) with 20 amp push-to reset the circuit breaker to protect against overload
  • Each socket is rated to operate 120 Volt, AC, single phase, 60Hz loads requiring up to 2400 watts (2.4 kW) at 20 amps
• (1) 120V 30 amp Twist Lock Outlet (NEMA LR-30R) with 30 amp push-to reset the circuit breaker to protect against overload
  • This receptacle is rated to operate 120 Volt, AC, single phase, 60Hz loads requiring up to 3600 watts (3.6 kW) at 30 amps
• (1) 120/240V 30 amp Twist Lock Outlet (NEMA L14-30) with 30 amp push-to reset the circuit breaker to protect against overload
  • This receptacle is rated to operate 240 Volt AC, single phase, 60Hz loads requiring up to 7200 watts (7.2 kW)
• (1) 12V DC 8.3 amp Output (For Charging Batteries Only)

Includes:

• Spark Plug Wrench
• Oil Funnel
• User Manual

Notes:

• It is crucial to read the owner's manual before use. When operating and maintaining this product as instructed in this manual, your generator will provide you with many years of reliable service.
• Only Use extension cords having a minimum rating of 125 Volts AC, 20 amps.
• DO NOT USE E15 OR E85 FUEL IN THIS UNIT. It violates federal law and will damage the unit and void your warranty.
