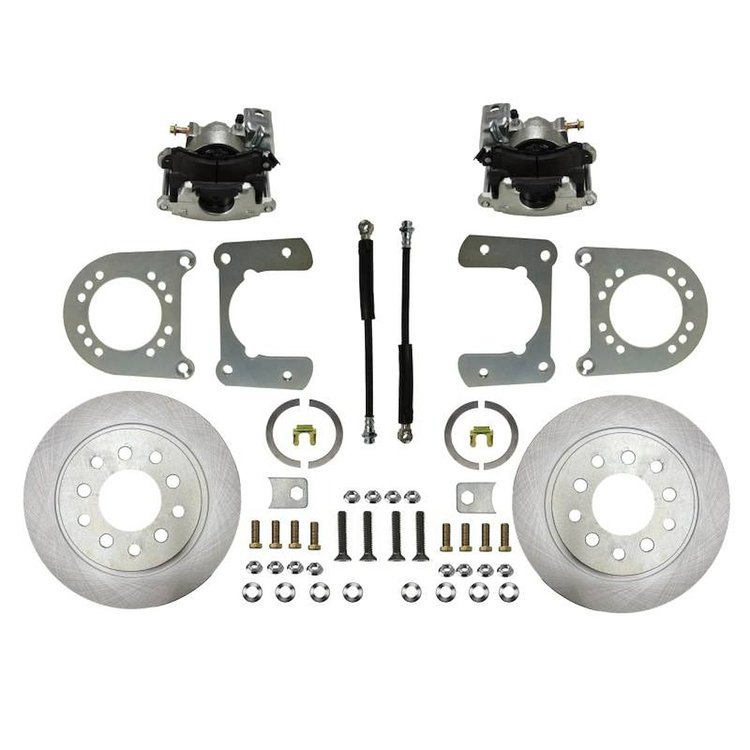

RC0020 Rear Disc Brake Conversion Kit for 1957-1986 Ford F100/F150/Bronco [Large Torino Bearing Rear Axle, Zinc Plated Calipers]
InfoVehicle Info Needed
LEED BRAKESPART NUMBER: 633-RC0020

RC0020 Rear Disc Brake Conversion Kit for 1957-1986 Ford F100/F150/Bronco [Large Torino Bearing Rear Axle, Zinc Plated Calipers]

$74999
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

3-Ton Aluminum Floor Jack [6,000 lbs. Capacity]

JEGS

3-Ton Aluminum Floor Jack [6,000 lbs. Capacity]

Part Number : 555-80077
$25999$285.99
You Save$26.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$6479$89.99
You Save$25.20
Wheel Chock [Solid Rubber]

JEGS

Wheel Chock [Solid Rubber]

Part Number : 555-W41001
$1299$14.99
You Save$2.00
Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

JEGS

Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

Part Number : 555-65010
$839$16.99
You Save$8.60

Ford
Rear Disc Brake Conversion Kit
  • 1957-1978 Ford F100
  • 1980-1986 Ford F150
  • 1966-1986 Ford Bronco
  • Large Torino (New) Bearing Rear Axle
  • Solid Rotors
  • Zinc Plated Finish Calipers

    LEED Brakes BC0020 Rear Disc Brake Conversion Kit

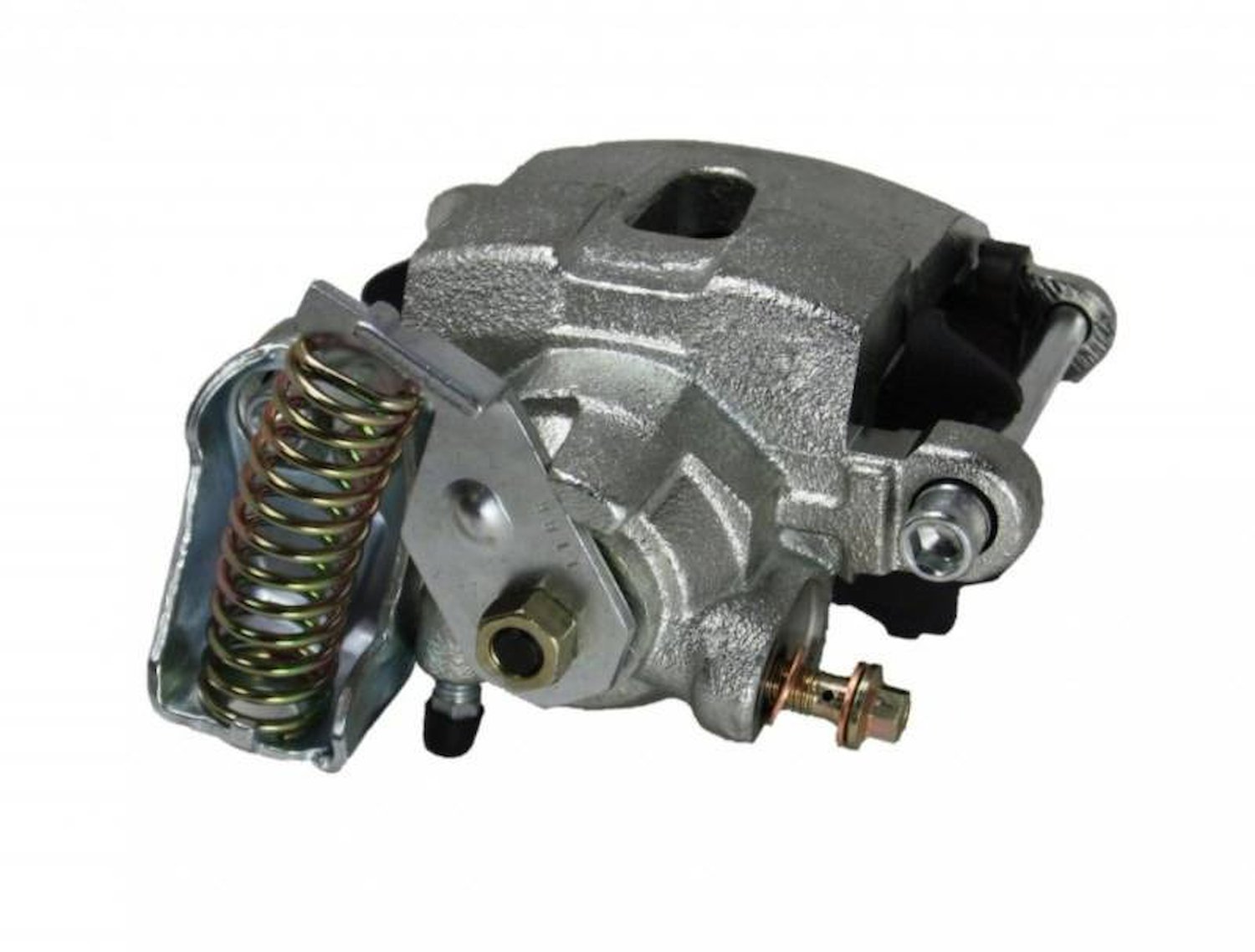

    Upgrade your F100, F150 or Ford Bronco truck to rear disc brakes with ease! The LEED Brakes rear disc brake kit for your 1957-78 F100 Truck is a direct bolt on to the factory rear axle. Our 2 piece mounting design gives you the flexibility to orientate your brake caliper in 3 positions. This helps with additional clearance of most aftermarket suspension and frame modifications. In this kit we provide a 11.650 in. vented brake rotor and heavy duty 54mm single piston caliper with built-in parking brake and semi-metallic brake pad for optimum performance. The brake calipers and brackets have a bright zinc plated finish for corrosion protection and a clean look. This kit is designed to fit into the most 15 in. wheels as well as most aftermarket 15 in. and larger wheels. A clean look, great performance and easy installation!

    LEED Brakes BC0020 Rear Disc Brake Conversion Kit Features:

    • Position: Rear
    • Rotor Included: Yes
    • Rotor Style: Standard
    • Rotor Construction: Cast Iron
    • Rotor Diameter: 11.650 in.
    • Rotor Thickness: 1.032 in.
    • Rotor Bolt Pattern: 5 x 5.50 in.
    • Caliper Included: Yes
    • Caliper Piston Quantity: 1
    • Caliper Material: Cast Iron
    • Caliper Finish: Zinc Plated
    • Parking Brake Included: Yes
    • Minimum Recommended Wheel Diameter (in): 15 x 7
  • Part TypeBrake Conversion Kit
    BrandLEED BRAKES
    Package Height9.75
    Package Width12.5
    Package Length20.5
    Weight65.0 PG
    Part CategoryPerformance Parts
    Caliper MaterialCast Iron
    PositionRear
    Disc Brake Caliper (Rear) Piston QuantityOne
    QuantitySold as a Kit
    Rotor Outside Diameter11.65 in.
    Rotor Thickness1.032 in.
    Disc Brake Rotor ConstructionSolid
    Caliper IncludedYes
    Wheel Lug Hole Quantity5
    Part FitmentDirect Fit
    Caliper FinishZinc Plated
    Rotor MaterialCast Iron
    Vendor Part NumberRC0020
    Package Qty1
    Package TypeEA
