Vehicle Info NeededMILODONPART NUMBER: 697-30956

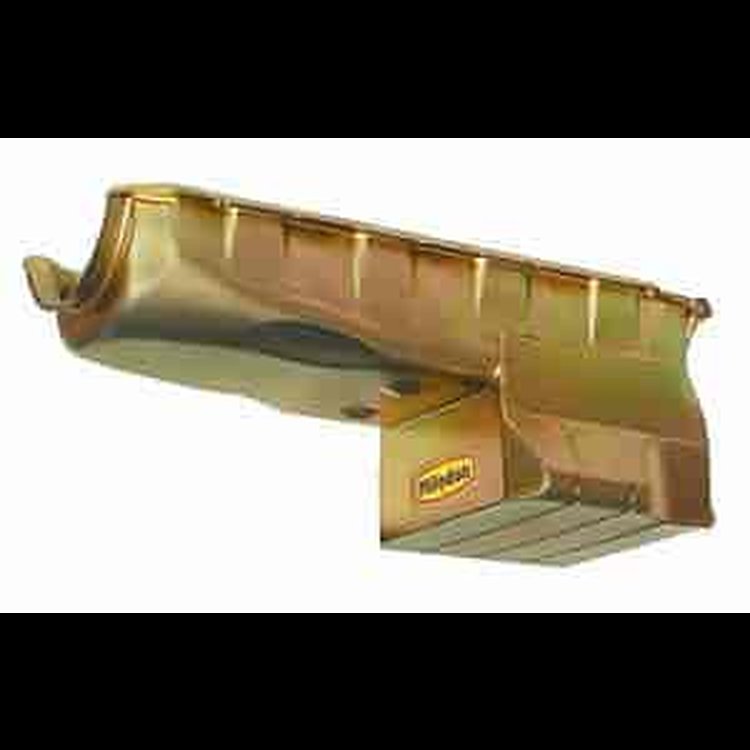

Big Block Chevy Oil Pan Mark V/Gen VI
$58995
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevy
- Big Block Chevy Oil Pan
- Mark V/Gen VI
- Low Profile w/ Filter Notch
- 7-Quart Capacity Plus Filter
- 8-1/2'' Deep Sump
This pan is equally suited for use on the street or the race track. Fits all Chevy chassis, including 1966 & 67 Chevelles, except 1962-67 Nova. Oil control baffles are used to provide consistent oil pressure and subdue any unwanted, power robbing oil movement. Mark V will accept up to 4-1/2' stroke.
Use Milodon Oil Pump 697-18760,
Oil pump pickup 697-18301,
Oil pump shaft 697-23060,
Rear pan baffle 697-32505,
Windage tray 697-32200 (solid louvered tray) or 697-32260 (diamond mesh tray),
Windage tray install kit 697-81151,
Dipstick 697-22010.
Part TypeOil Pan
BrandMILODON
Package Height9.1
Package Width12.2
Package Length25.1
Weight15.0 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth8.5 in (215.9 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number30956
Package Qty1
Package TypeEA
