Big Block Chevy Oil Pan 1955-57 Chevy Chassis
InfoVehicle Info Needed
MILODONPART NUMBER: 697-30975

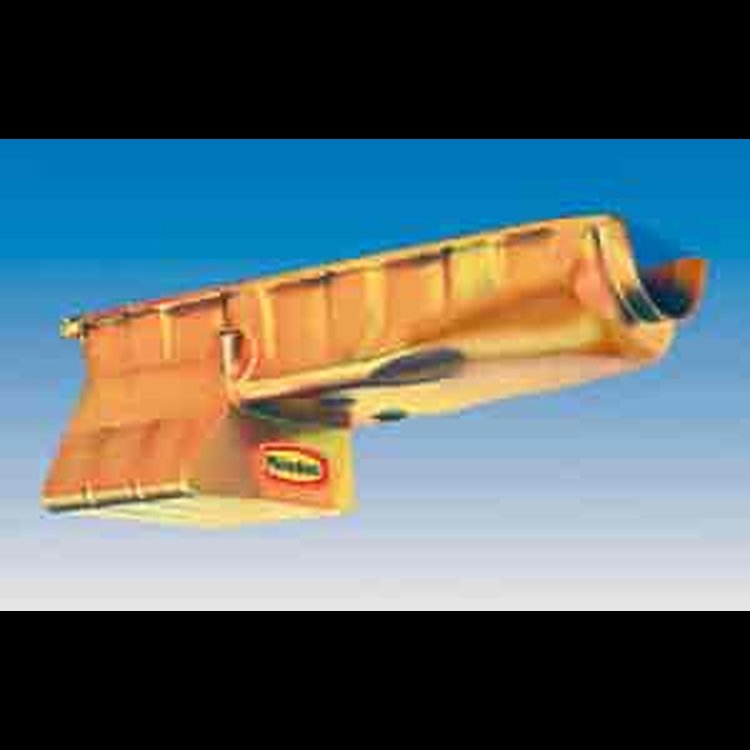

Big Block Chevy Oil Pan 1955-57 Chevy Chassis

$52995
ShippingShips on 11/27/2026
Lowest PriceLowest Price Guarantee

Items You Need

Oil Pump Shaft Big Block Chevy

MILODON

Oil Pump Shaft Big Block Chevy

Part Number : 697-23060
$2595
One-Piece Oil Pan Gasket Big Block Chevy Mark V & Gen VI 8.2L

MILODON

One-Piece Oil Pan Gasket Big Block Chevy Mark V & Gen VI 8.2L

Part Number : 697-41002
$4995
Diamond Stripper Windage Tray Big Block Chevy Mark IV, V, VI

MILODON

Diamond Stripper Windage Tray Big Block Chevy Mark IV, V, VI

Part Number : 697-32260
$13595
Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

JEGS

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

Part Number : 555-28030
$799$8.99
You Save$1.00

Chevy
Big Block Chevy Oil Pan
  • 1955-57 Chevy Chassis
  • Mark V & VI
  • 6-Quart Capacity
  • 7-3/4'' Deep Sump

    This pan is ready for use on the street and strip, especially for early 1955, 1956, and 1957 Chevy chassis. This pan allows adequate steering clearance even if the engine is moved forward, as many mount kits do. This Mark V/VI pan will accept up to a 4.00' stroke.

    • Deep-Sump Oil Pans Maximize Engine Performance

      Milodon Street/Strip Oil Pans are designed to provide maximum performance for your vehicle. These well-engineered oil pans release additional horsepower, increase engine life and oil control. Deep sumps provide ample oil supply and low profiles provide maximum ground clearance (clears stock chassis, steering, and most headers as listed). Street/Strip Oil Pans are a necessity where high-volume oil pumps and increased RPM ranges are used.

      Show More

      Street/Strip: Low-Profile
      Low-profile "triangulated" sump design gives both adequate ground clearance and sufficient oil capacity for any high-performance use. This pan is equally suited for use on the street or strip. Oil control baffles 100% subdue oil movement and provide increased horsepower.

      Street/Strip: Low-Profile Stroker
      High-horsepower output design, front of the oil pan is deeper to allow the use of a full-length, competition-style tray (Tray is attached in the pan by quick-release fasteners to allow easy removal). The pan fits stock cross members without modification, as well as stock starters and oil filters.

      Street/Strip: Street Performance
      Appearing stock on the outside contains sufficient horizontal baffling to 100% control oil movement. Pan mounted windage tray provides increased power yet requires no mounting to the block. A complete low-cost performance package with a magnetic drain plug.

    Part TypeOil Pan
    Product LineMilodon Street/Strip Oil Pans
    BrandMILODON
    Package Height8.8
    Package Width12.4
    Package Length25.3
    Weight14.23 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity6 quarts
    Hardware IncludedNo
    Dipstick ProvisionYes
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    QuantitySold individually
    Oil Pan FinishGold iridited
    Kickout PositionDriver and passenger side
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod4.5 in (114.3 mm)
    Gaskets IncludedNo
    Oil Pan Depth7.75 in (196.9 mm)
    Rear Main Seal Style1-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Dipstick LocationPassenger side
    Part FitmentSemi Universal
    Kicked OutYes
    Stroker ClearancedYes
    Vendor Part Number30975
    Package Qty1
    Package TypeEA
