Vehicle Info NeededMOROSOPART NUMBER: 710-20181

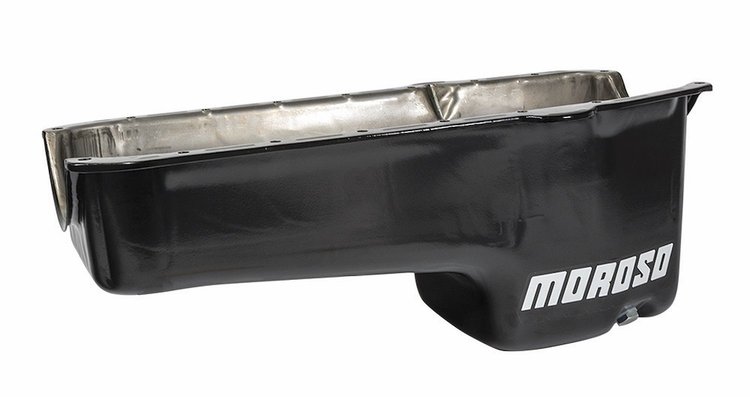

Street/Strip Oil Pan 1980-85 Small Block Chevy
$30699
6 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Chevy
Street/Strip Oil Pan1980-85 Small Block Chevy Passenger-Side Dipstick With 2-piece rear main seal Deep Sump Wet Sump 6-quart capacity 8.25" Depth Black Finish
- Fits most chassis (except 1962-67 Chevy II, V8 Vega and Monza
- Accepts up to 4.125 in. stroke with most steel rods
- Fits 4 Bolt Main Caps Including Front and Rear
- Reduces oil temperature
- Trap-door baffle for improved oil control
- Compatible with most starter/flywheel combinations
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickups:
High-Performance Oil Pans
Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.
Part TypeOil Pan
Product LineMoroso Street/Strip Oil Pans
BrandMOROSO
Package Height11.8
Package Width12.2
Package Length27.2
Weight11.52 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.8 in (96.52 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentDirect Fit
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number20181
Package Qty1
Package TypeEA
