Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy

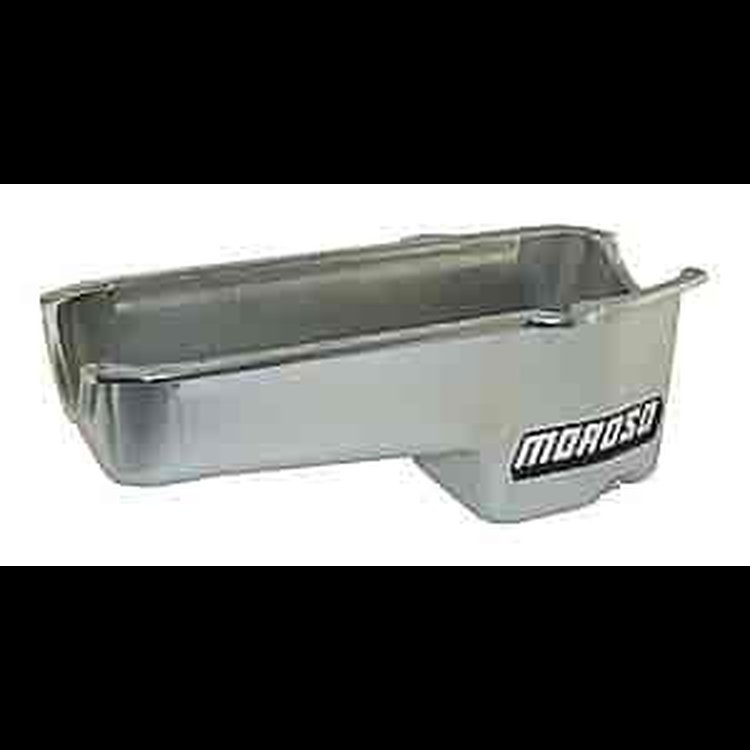

Street/Strip Oil Pan Small Block Chevy 1986-Up Passenger-Side Dipstick With 1-piece rear main seal Deep Sump Wet Sump 6 quart capacity 8.25" Depth Clear zinc finish
Recommended Pickups:
- 710-24170 -- Fits Moroso SBC Race Pump 710-22101 and Stock Style pumps
- 710-24350 -- Fits Moroso SBC HV Race Pump 710-22111 and Stock Style Hi-Volume pumps
- 710-24320 -- Fits Moroso BBC Race Pump 710-22150
- 710-24360 -- Fits Mellings 689-M155HV
Features:
- Fits most chassis (except 1962-67 Chevy II, V8 Vega and Monza
- Clears 4.125" stroke with most steel rods
- Fits 4 bolt Dart, GM and Merlin main caps
- Trap-door baffle for improved oil control
- Compatible with most starter/flywheel combinations
Note: Oil pan capacities do not include oil filter capacity
High-Performance Oil Pans
Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.
Product LineMoroso Street/Strip Oil Pans
BrandMOROSO
Package Height10.8
Package Width11.1
Package Length26.3
Weight10.25 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part Number20186
Package Qty1
Package TypeEA
