Vehicle Info NeededMOROSOPART NUMBER: 710-20195

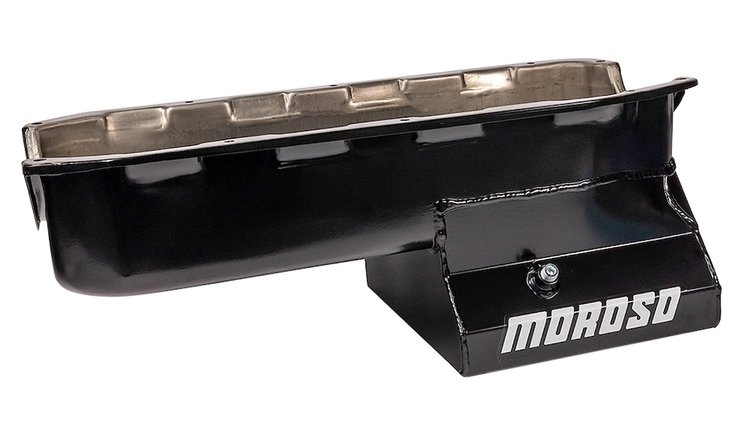

20195 Street/Strip Oil Pan for Pre-1980 Small Block Chevy
$32844
2 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Chevy
Street/Strip Oil PanPre-1980 Small Block Chevy Driver-Side Dipstick Kicked-Out Sump Wet Sump 7-quart capacity 8.25" Depth Black Finish Provision for Universal Dipstick
- Fits most chassis (may require Cross-Member modifications)
- Accepts up to 4.125 in. stroke with most steel rods
- Fits 4 Bolt Main Caps Including Front and Rear
- Compatible with most starter/flywheel combinations
- Accepts Universal Dipstick kits 710-25970, 710-25971 and 710-25973
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickups:
- 710-24170 -- Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style Pumps
- 710-24350 -- Fits Moroso Small Block Chevy HV Race Pump No 710-22111 and Stock Style Hi-Volume Pumps
- 710-24320 -- Fits Moroso Big Block Chevy Race Pump 710-22150 (with baffle modification)
- 710-24360 -- Fits Mellings 689-M155HV Pump (with baffle modification)
Part TypeOil Pan
BrandMOROSO
Package Height11.3
Package Width12.3
Package Length25.3
Weight11.65 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.125 in (104.775 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentDirect Fit
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number20195
Package Qty1
Package TypeEA
