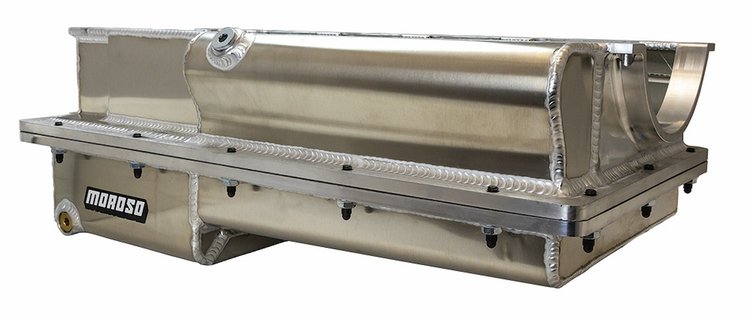

20376 Drag Race Oil Pan For Top Sportsman, Top Drag Racester Pro Mod

Name: 20376 Drag Race Oil Pan For Top Sportsman, Top Drag Racester Pro Mod
Brand: MOROSO
SKU: 710-20376
Price: 1801.99 USD
Availability: InStock

^$1,801⁹⁹

Ships on Nov 03, 2026

Lowest Price Guarantee

For Top Sportsman, Top Dragster Pro Mod
Big Block Chevy Mark IV
For Frequent Lower-End Inspection
Wet Sump
6-Quart Capacity with Standard Volume Pump & 7-Quart Capacity with High Volume Pump
8-1/16" Depth
Aluminum

Applications: Big Block Chevy Mark IV style (except Gen V and Gen VI)
Recommended Pickups:
710-24440 Fits Moroso Big Block Chevy Race pump 710-22150, 710-22160 or 710-22162 and Standard or Hi-Volume Stock Oil Pumps
710-24441 Fits Same Pumps as above but is offset to middle of sump for more consistent oil pressure
Oil Pump/Pickup Packages:
710-22175 Moroso Standard Volume
710-22185 Moroso Hi-Volume
710-22186 Moroso Hi-Volume (with offset pickup)
710-22163 Moroso Billet Aluminum Big Block Chevy Hi-Volume
710-22164 Moroso Billet Aluminum Big Block Chevy Standard
710-22167 Moroso Hi-Volume
Features:
Fully Fabricated Aluminum Pan Designed With Race Pan Rail Bolt Pattern
Some Blocks Require Block Pan Rail Tapping and Drilling
4.75" Stroke with Aluminum Rods
Removable Bottom is Designed with an o-ring billet flange to provide frequent access to inspect bottom of engines
Billet end seals provide a consistent sealing surface to the billet front covers and rear main caps
Internal Uni-directional windage screen
Power kick-out design provides maximum horsepower
Sump is designed to work with Moroso spur gear and gerotor billet oil pumps
Use with a 168-tooth flywheel combination
Note: Oil pan capacities do not include the oil filter capacity

Oil Pans to Maximize Your Engine's Performance

Available in both wet and dry sump versions, Moroso Drag Race Oil Pans are intended for the racer looking for maximum horsepower gain and oil control during straight-line acceleration.

Eliminator Pans: For the economy-minded racer. Eliminator oil pans improve oil control for solid horsepower gains. The large power kickout, integral crankshaft scraper, windage tray, and internal baffling ensure quick oil return to the pick-up area under the most severe racing conditions.

Pro Eliminator Oil Pans: Designed for ultra-high horsepower applications. These box style pans are the result of over 35 years of research and development. Pro Eliminator oil pans offer the right combination of oil control and power-producing features.

Ultra Pro Dry Sump Oil Pans: For racers who demand the very best! Ultra Pro Dry Sump oil pans offer the ultimate in dry sump technology and are available for 3, 4, 4-1/2, and 5 stage systems. These oil pans feature a maximum size power kickout, block high scraper, uni-directional windage tray screen, and special baffling.

Super Fueler Oil Pans: These oil pans were the first to break the 300 MPH barrier for nitro-burning and alcohol dragsters and funny cars. Super Fuel oil pans are available for both Chrysler and aftermarket blocks.

Note: All steel pans will have a clear zinc finish.

Part TypeOil Pan

Product LineMoroso Drag Race Oil Pans

BrandMOROSO

Package Height9.6

Package Width17.9

Package Length25.6

Weight20.39 PG

Part CategoryPerformance Parts

Oil Pan Capacity6 qt

Oil Pan MaterialAluminum

Oil Pan Depth8.063 in
